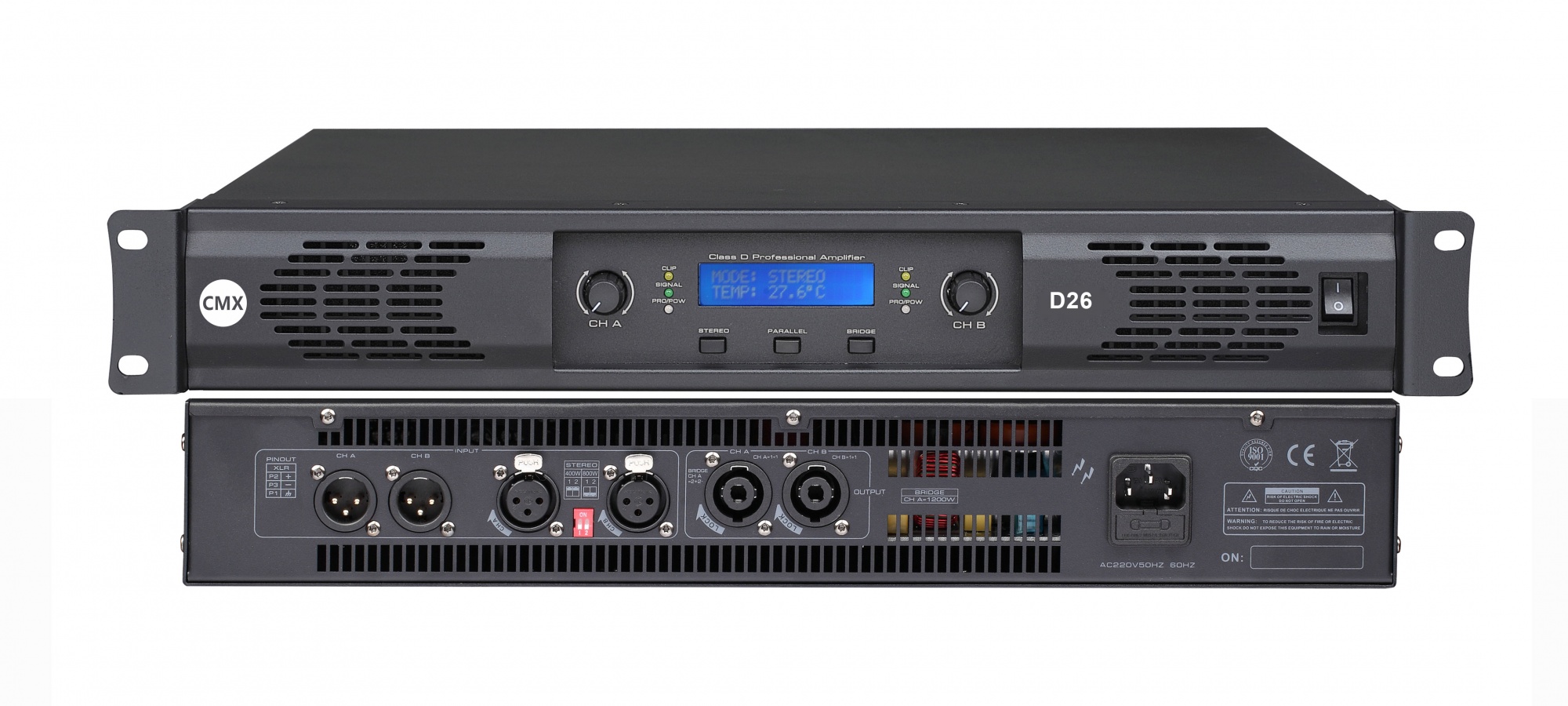

Professional Power Amplifier D26 D28 D210 D212
Digital Quad Power AmplifierD26 D28 D210 D212 600W to 1200W by Two Channels. D26 & D28 digital Quad power amplifier is designed for professional sound system and sound reinforcement system, 1.5U height with LCD display, class-D, real RMS power output.
Features:
- Ideal for live performance, permanent installation and sound reinforcement system.
- Switching power technology digital Class-D two channelpower amplifier.
- Green technology of 95% efficiency of less power consumption, less heat generation and longer life span.
With PWM special power circuit to ensure excellent cooling system. - 19” universal rack mount type in 1.5U height.
- Support stereo output at 8Ω,4Ω& 2Ωand bridged output 8Ω& 4Ω .
- With bridge, parallel & stereo selector on rear panel.
- Rated power output 2×1100W to 2×1800W @4Ω .
- Two inputs& two link by balanced XLR connector.
- Two outputs by balanced Speakon connector.
- LCD display shows mode (stereo, bridge) temp and volume level.
- LED indicators of fault, clip, signal and active.
- Complete protection includesDC, soft start, clip, high temp, overload and short circuit.
- Wide range power supply of AC 160-240V.
Model | D26 | D28 | D210 | D212 |
Description | Digital Stereo Power Amplifier | |||
Rated Output 8 Ohm Stereo | 2×600 W | 2×800 W | 2×1000 W | 2×1200 W |
Rated Output 4 Ohm Stereo | 2×1100 W | 2×1200 W | 2×1600 W | 2×1800 W |
Rated Output 2 Ohm Stereo | 2×900 W | 2×1000 W | 2×1400 W | 2×1600 W |
Rated Output 8 Ohm Bridged | 1100W | 1200W | 3400W | 3600W |
Rated Output 4 Ohm Bridged | 1200W | 1400W | 3000W | 3200W |
Frequency Response | 20-20 kHz (±1 dB) | |||
Input Sensitivity | 0.775V | |||
Input impedance | 20 KΩ balanced, 10 KΩ unbalanced | |||
Damping Factor | ＞550(1 kHz, 8Ω) | |||
Crosstalk | ＞100dB (1 kHz, 8Ω) | |||
THD | ＜0.05%, 8Ω 1KHz | |||
S/N Ratio | ＞105dB | |||
Input | A & B balanced XLR inputs& Link | |||
Output | A & B balanced Speakon outputs | |||
Protection | DC, soft start, clip, high temp, overload and short circuit | |||
Power Supply | 160-240V AC~ 50-60 Hz | |||
Dimension | 484×290×66 mm (1.5U) | |||
Weight | 5.5kg | 5.8kg | 6.1kg | 6.3kg |
