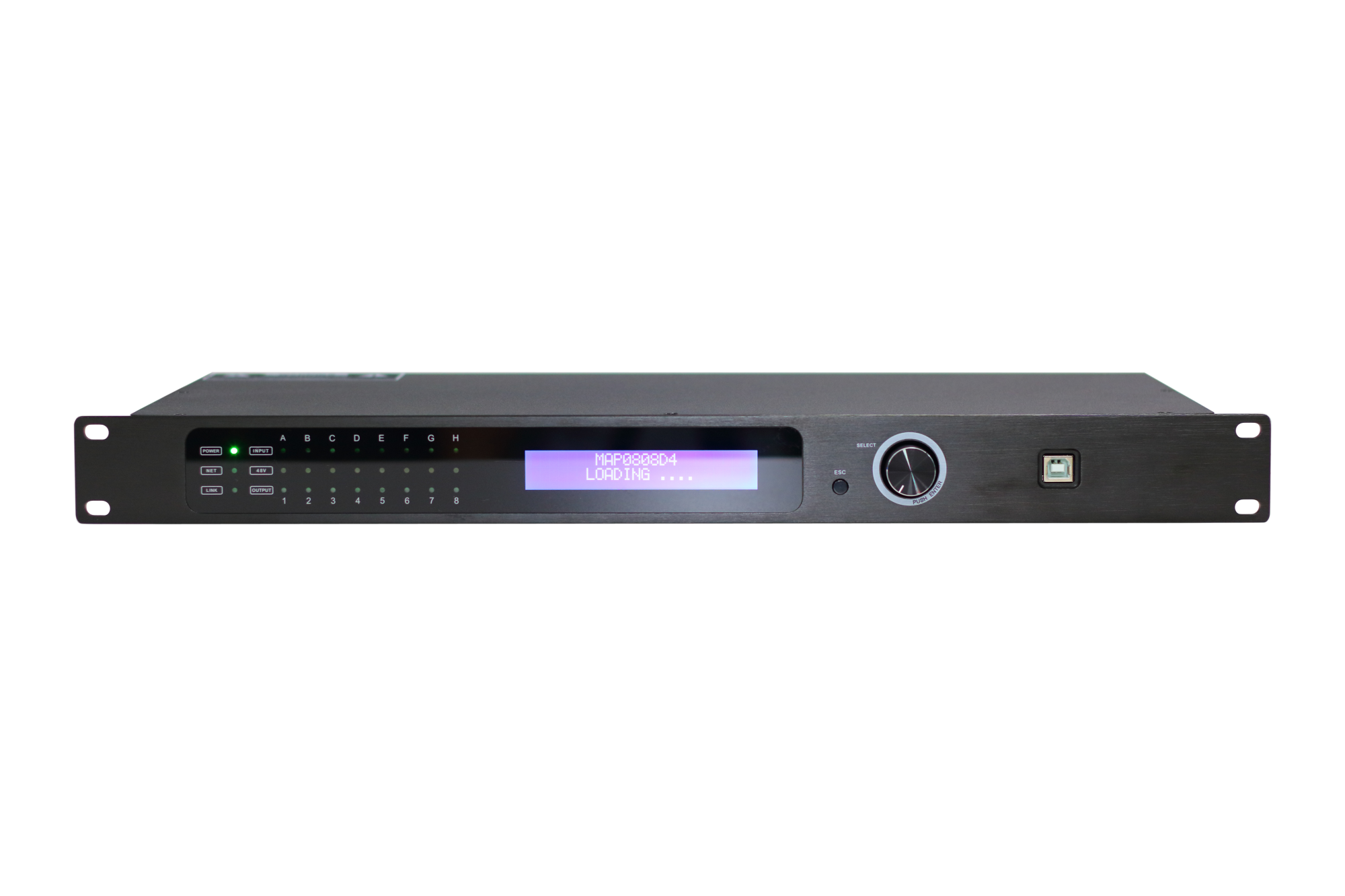

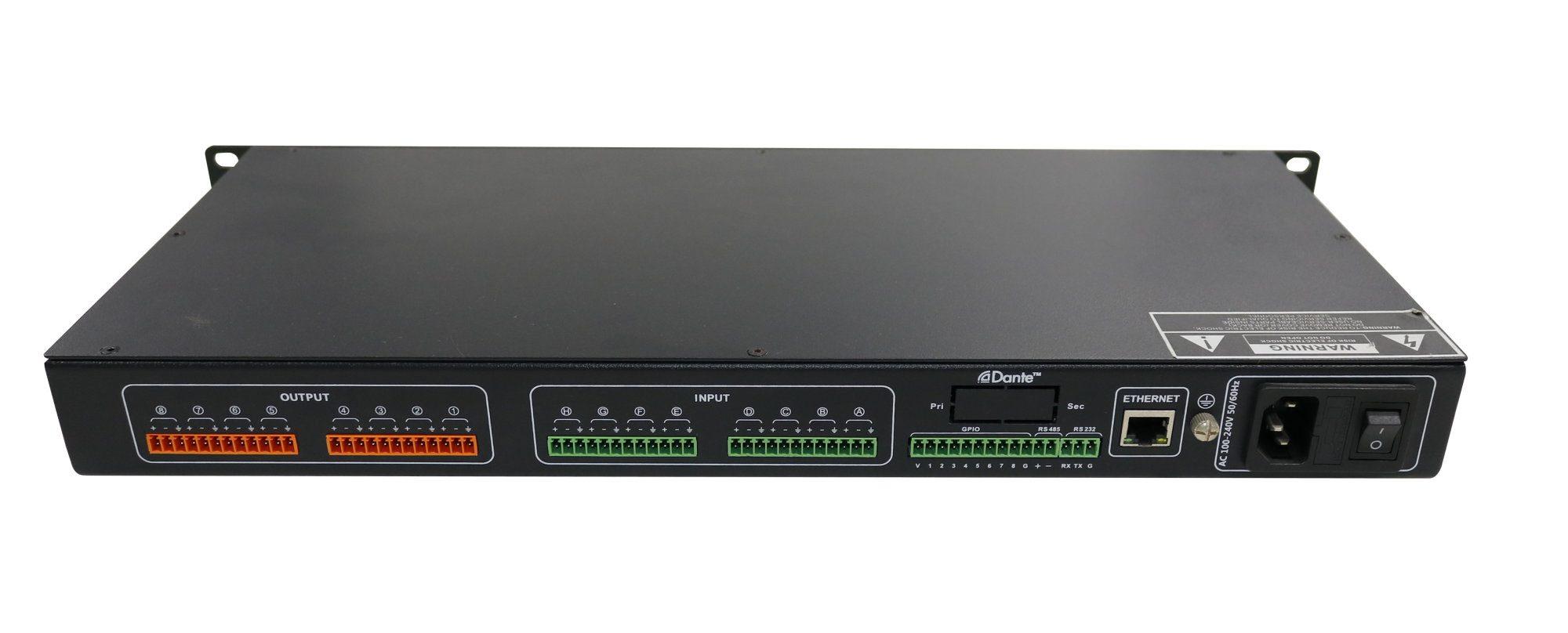

CS-P808A Digital Audio Matrix with DSP
DSP Processor Conference System Digital Conferencing SolutionsCS-P808A is a conferencing processor with 8 inputs and 8 outputs, with DSP functions of built-in feedback suppression,
automatic mixing, matrix mixer, equalizer, crossover, compressor etc. Dante Network module is optional to add, so this
audio matrix with DSP is suitable for various applications like meeting Room, Medium/Big conference room, Courtrooms,
Auditoriums, Multi-purpose spaces
DSP Processor Conference System Digital Conferencing Solutions
CS-P808A is a conferencing processor with 8 inputs and 8 outputs, with DSP functions of built-in feedback suppression,
automatic mixing, matrix mixer, equalizer, crossover, compressor etc. Dante Network module is optional to add, so this
audio matrix with DSP is suitable for various applications like meeting Room, Medium/Big conference room, Courtrooms,
Auditoriums, Multi-purpose spaces
Features
- 8 analog inputs and 8 analog outputs, support selecting microphone and line
- With 48V switch per input channel
- Support Dante input and output port
- GPIO Extensible Function
- Feedback suppressor in per input channel
- AUTO-MIX and MATRIC-MIX
- 31 PEQS per input and 10 PEQS per output
- USB free driver connect, RS232/RS485 connector for center control
Chapter 2 Technical Parameters
| DSP chip | |
signal processing | 32-bit fixed/floating-point DSP 300MHz |
Audio Latency | < 1 ms |
| A/D and D/A Converters | 24-bit |
| Sampling Rate | 48KHz |
| ANALOG AUDIO INPUTS AND OUTPUTS | |
| Input channels | 8 balanced. Mic/line level |
Connectors | 3.81 mm Phoenix Contact, 12-pin |
| Input Impedance | 11.5kΩ |
maximum input level | 12dBu/Line, -9dBu/Mic |
| Phantom power | +48VDC, 10mA, selectable per input |
| Output Channels | 8 balanced, line level |
Output impedance | 150Ω |
Audio indicators AUDIO PERFORMANCE SPECIFICATIONS | |
Frequency Response | 20Hz-20kHz(+-0.5dB)/Line;20Hz-20kHz(+-1.5dB)/Mic |
THD+N |
|
SNR | 105dB(@12dBu,1kHz,A-wt)/Line; 95dB(@-7dBu,1kHz,A-wt)/Mic |
CONNECT AND SHOWCOMMUNITICATION PORTS AND INDICATORS | |
USB | Micro-B type, free driver |
RS232 & RS485 | Phoenix connector |
TCP/IP | RJ-45 |
| GPIO | Phoenix seat, Machine Archive (customizable) |
| LCD display & Button | LCD2402 |
LED Indicators | Power, Link, +48V, Input and Output Audio signal |
| ELECTRICAL AND PHYSICAL | |
| Voltage Range | AC100V-240V 50/60 Hz |
| Dimension | 44mmx483mmx210mm |
Net Weight | 2.8kg |
| Working Temperature | -20℃--80℃ |
