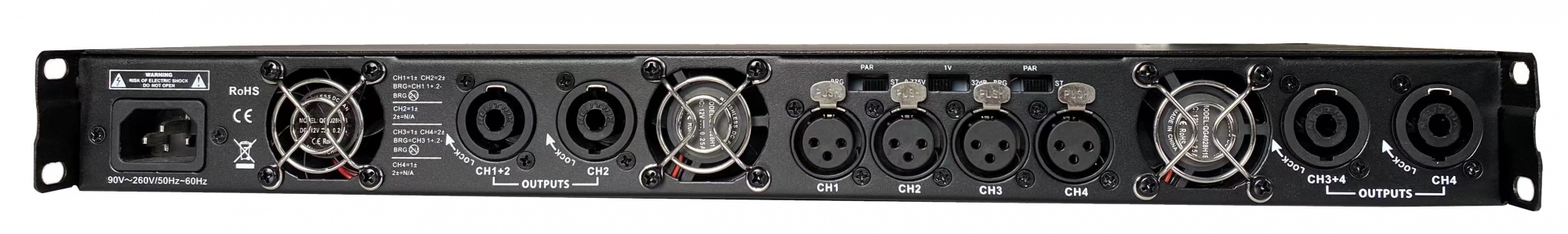

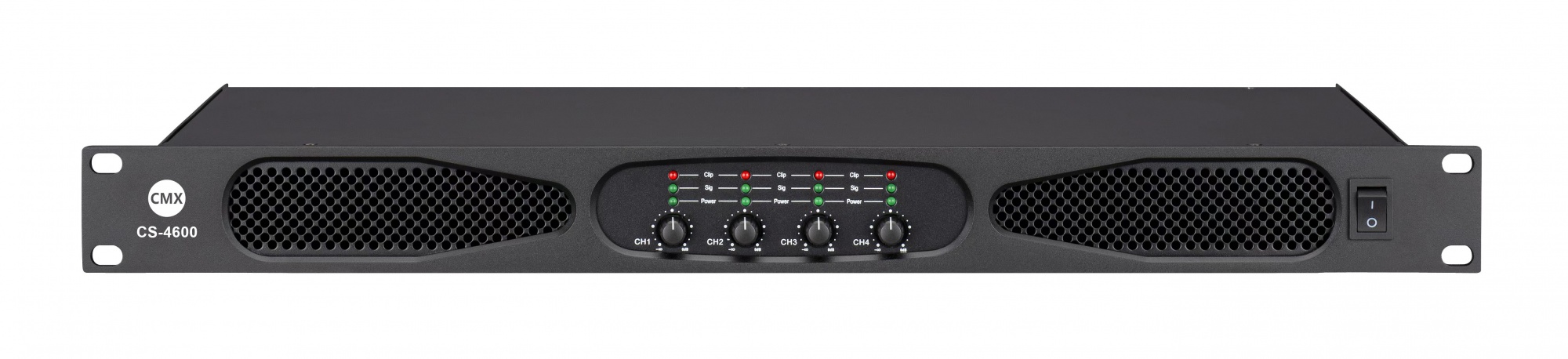

Professional Power Amplifier CS-4600 CS-4800 CS-41000 CS-41300 CS-41500
Digital Quad Power AmplifierCS-4600 CS-4800 CS-41000 CS-41300 CS-41500 600W to 1200W by Four Channels. digital Quad power amplifier is designed for professional sound system and sound reinforcement system, 1.5U height with LCD display, class-D, real RMS power output.
Feature:
- Switching power technology digital Class-D power amplifier
- Green technology amplifier of 85% efficiency
- The soft start LLC resonant SMPS module
- 19”universal rack mount type in 1U height
- Support stereo output at 8Ω & 4Ω
- Output mode selector of stereo, parallel and bridge
- 4×Input by balanced XLR male connector
- 4×Output by balanced Speakon female connector
- Complete protection include clip, high temp, overload and short circuit
| Model | CS-4600 | CS-4800 | CS-41000 | CS-41300 | CS-41500 |
| Inputimpedance | balanced/unbalanced >20KΩ/>10KΩ | ||||
| T.H.D | ≤0.05% | ||||
| Frequency response | 20Hz-20KHz(+0.5dB) | ||||
| S/N (A weighted) | >104dB | ||||
| Damping factor | ≥600 | ||||
| Slew rate | >20V/us | ||||
| Sensitivity(rated power 8Q) | 0.775V/1V132dB | ||||
| The minimum load | ≥2Ω | ||||
| Air duct | front to back ventilation | ||||
| Protection | Soft Start. Vhf. Dc. Short Circuit.Overload.Clipping/Distortion Limits.Overheat | ||||
| 8Ω | 4x650W | 4x800W | 4x1000W | 4x1300W | 4x1800W |
| 4Ω | 4x1050W | 4x1300W | 4x1650W | 4x2100W | 4x3000W |
| 2Ω | A/N | A/N | A/N | A/N | A/N |
| 8ΩBRG | 2x2100W | 2x2600W | 2x3400W | 2x4200W | 2x4600W |
| Netweight Volume | 5.5KG | 5.8KG | 7KG | 7.2KG | 10KG |
| Volume | 482x251x44(mm) | ||||
