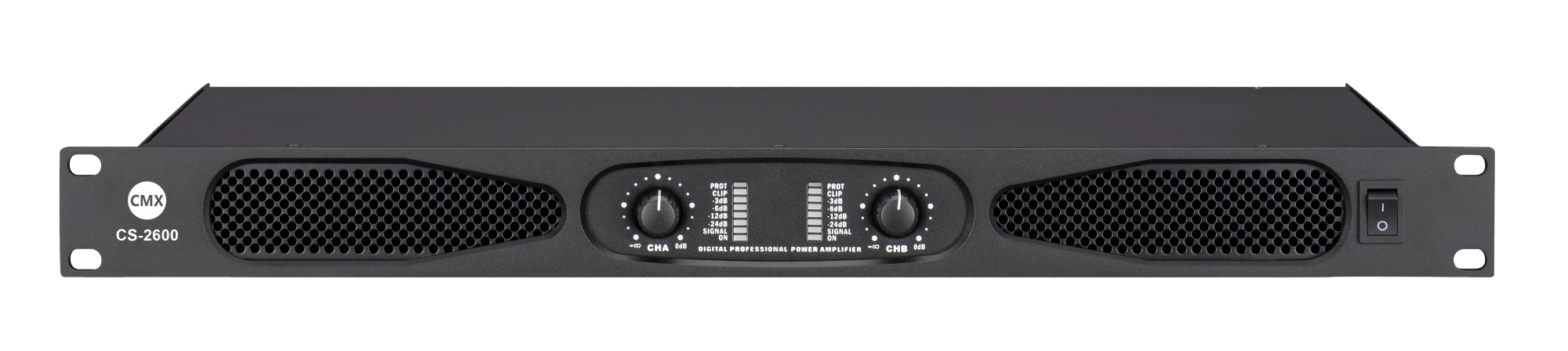

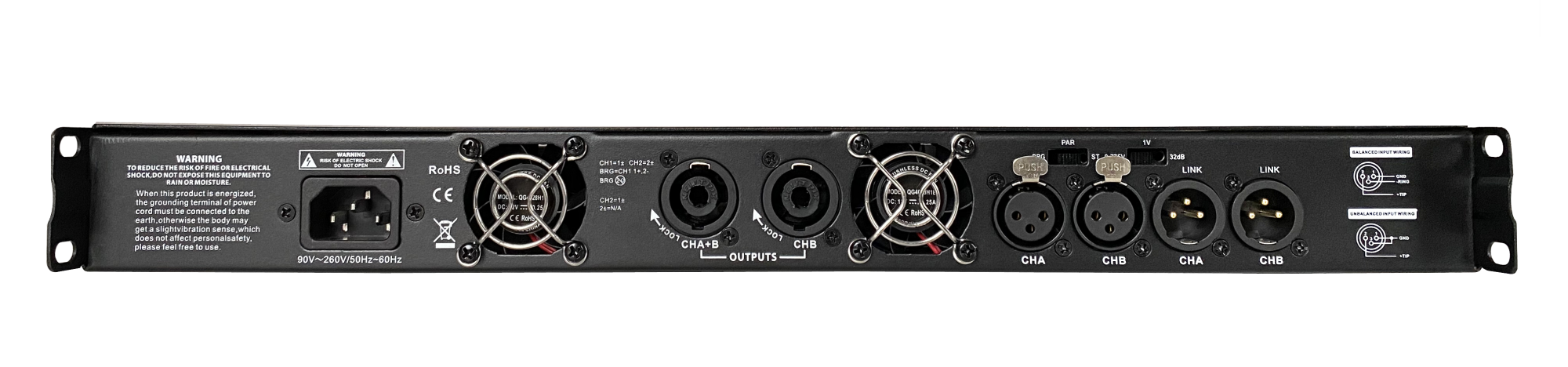

Two Channel Professional Power Amplifier CS-2600 CS-2800 CS-21000 CS-21300 CS-21800
Digital Quad Power AmplifierCS-2600 CS-2800 CS-21000 CS-21300 CS-21800 to 1200W by Two Channels. digital Quad power amplifier is designed for professional sound system and sound reinforcement system, 1.5U height with LCD display, class-D, real RMS power output.
Two Channel Professional Power Amplifier
CS-2600
CS-2800
CS-21000
CS-21300
CS-21800
- Switching power technology digital Class-D power amplifier
- Green technology amplifier of 85% efficiency
- The soft start LLC resonant SMPS module
- 19”universal rack mount type in 1U height
- Support stereo output at 8Ω & 4Ω & 2 Ω
- Output mode selector of stereo, parallel and bridge
- 4×Input by balanced XLR male connector
- 2×Output by balanced Speakon female connector
- Complete protection include clip, high temp,overload and short circuit
| Model | CS-2600 | CS-2800 | CS-21000 | CS-21300 | CS-21800 |
| Inputimpedance | balanced/unbalanced >20KΩ/>10KΩ | ||||
| T.H.D | ≤0.05% | ||||
| Frequency response | 20Hz-20KHz(+0.5dB) | ||||
| S/N (A weighted) | >104dB | ||||
| Damping factor | ≥600 | ||||
| Slew rate | >20V/us | ||||
| Sensitivity(rated power 8Q) | 0.775V/1V132dB | ||||
| The minimum load | ≥2Ω | ||||
| Air duct | front to back ventilation | ||||
| Protection | Soft Start. Vhf. Dc. Short Circuit.Overload.Clipping/Distortion Limits.Overheat | ||||
| 8Ω | 2x650W | 2x800W | 2x1000W | 2x1300W | 2x1800W |
| 4Ω | 2x1050W | 2x1300W | 2x1650W | 2x2100W | 2x3000W |
| 2Ω | 2x1400W | 2x1750W | 2x2100W | 2x2500W | 2x3600W |
| 8ΩBRG | 2100W | 2600W | 3300W | 4200W | 5600W |
| Netweight Volume | 4.4KG | 4.6KG | 4.9KG | 6.4KG | 6.5KG |
| Volume | 482x251x44(mm) | ||||
