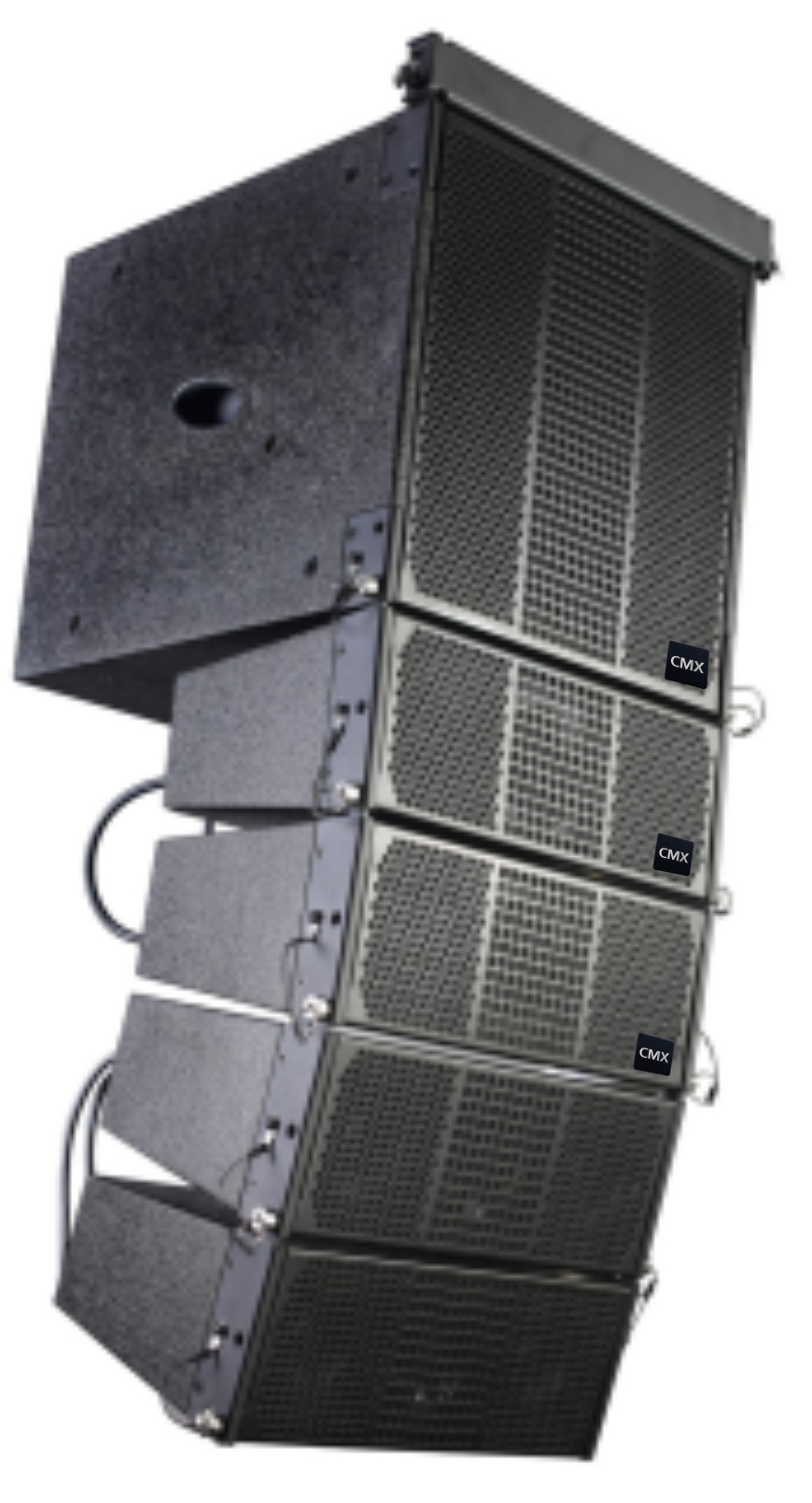

Passive Dual 5”/6”/8”/10”/12” Line Array Loudspeakers - LAS series

Graphic
Detail

Passive Dual 5”/6”/8”/10”/12” Line Array Loudspeakers - LAS series

Active Line Array Powered Line Array

LAS series 3-way passive line array loudspeakers is an high quality sound reinforcement system designed for night-clubs, theatres, cinemas and conference halls. 4 units dual 5”-6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system.The system comprises of a subwoofer and a cluster of 4 x dual 5”-6”-8”-10”-12” & 44mm Titanium tweeter to set up a 3-way loudspeaker system that shall be driven by the external power amplifiers. The 1x12”/15” and 2x 12”/15”/18” subwoofer is of powe

Active Line Array Powered Line Array

Download Annex

Product Detail

Feature:

Compact 3-way passive line array loudspeaker system
High performance subwoofer of low frequency
dual 5”-6”-8”-10”-12” & 44mm Titanium tweeter line array speakers
4 units dual 5”-6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system
High output, full range speakers for excellent sound reinforcement
High SPL up to 131B Max for all fixed installation sound system
Drivers constructed with a unique thin foam surround to reduce distortion
Ribbon tweeters give a wide frequency response of up to 20k Hz
Adjustable rigging angle for the line array speakers
Vertical dispersion of 90° and horizontal of 0°-10°
Combined up to 16 units for large venue applications
Installation mounting bracket and accessories are included

Description:

LAS series 3-way passive line array loudspeakers is an high quality sound reinforcement system designed for night-clubs, theatres, cinemas and conference halls. 4 units dual 5”-6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system.The system comprises of a subwoofer and a cluster of 4 x dual 5”-6”-8”-10”-12” & 44mm Titanium tweeter to set up a 3-way loudspeaker system that shall be driven by the external power amplifiers. The 1x12”/15” and 2x 12”/15”/18” subwoofer is of powerful bass effect, which is rated power output of 350W to 1200 watts and continuous power output of 600 watts to 1600 watts and peak of 1200 to 4800watt. The speaker has excellent radiation characteristics, sound clear and delicate, strong voice penetration and high sensitivity. The installation mounting bracket and accessories are included.

Line Array Modular Loudspeaker Specifications:

Model	LAS-205	LAS-206	LAS-208	LAS-210	LAS-212
Description	Single unit Dual 5' Line Array Modular Loudspeaker	Single unit Dual 6' Line Array Modular	Loudspeaker Single unit Dual 8' Line Array Modular	Loudspeaker Single unit Dual 10' Line Array Modular	Loudspeaker Single unit Dual 12' Line Array Modular Loudspeaker
RMS Power	180W	350W	400W	650W	800W
Continuous Output	500W	800W	600W	800W	1200W
Peak Output	500W	1000W	1600W	2400W	2400W
Impedance	16Ω	8Ω	8Ω	8Ω	4Ω
Frequency Response	60Hz-18KHz(±3dB)	48Hz-19KHz(±3dB)	50Hz-20KHz(±3dB)	48Hz-19KHz(±3dB)	42Hz-20KHz(±3dB)
Sensitivity	98db	99db	113db	110db	113db
Speaker	LF : 2×5' HF : 25mm Titanium tweeter	LF : 2×6.5' HF : 44mm Titanium tweeter	LF : 2×8' HF : 44mm Titanium tweeter	LF : 2×10' HF : 2×44mm Titanium tweeter	LF : 2×12' HF : 2×44mm Titanium tweeter
MAX SPL	120dB	130dB	127dB	130dB	131dB
Coverage	90°x 10°	90°x 10°	90°x 10°	90°x 10°	90°x 10°
Connector	2×NL4MP SPEAKON		2×NL4MP SPEAKON
Size(width×depth×height)	395×140×145MM	860×420×300MM	650×410×225MM	860×420×300MM	1050×550×355mm

Passive Subwoofer Specifications:

Model	LAS-12B	LAS-15B	LAS-212B	LAS-215B	LAS-218B
Description	Subwoofer for LAS-205	Subwoofer for LAS-206	Subwoofer for LAS-208	Subwoofer for LAS-210	Subwoofer for LAS-212
RMS Power	350W	400W	500W	600W	1200W
Continuous Output	650W	800W	1200W	1200W	1600W
Peak Output	1200W	1200W	2000W	2400W	4800W
Impedance	8Ω	8Ω	4Ω	4Ω	4Ω
Frequency Response	40Hz-800Hz	300Hz-800Hz	50Hz-200Hz	40Hz-200Hz	32Hz-500Hz
Sensitivity	97db	99db	110db	110db	110dB
Speaker	LF : 1×12'	LF : 1×15'	LF : 2×12'	LF : 2×15'	LF : 2×18'
MAX SPL	121dB	130dB	132dB	134dB	136dB
Connector	2×NL4MP SPEAKON
Size(width×depth×height)	395x500x395mm	450x520x450mm	650×560×412mm	860×750×430mm	1150×840x570mm
