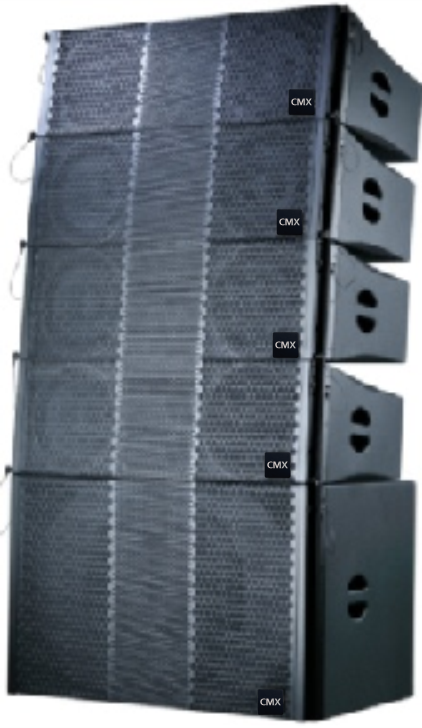

Passive Dual 6”/8”/10”/12” Line Array Loudspeakers - CQ series
Active Line Array Powered Line ArrayCQ series 2-way passive line array loudspeakers is an high quality sound reinforcement system designed for night-clubs, theatres, cinemas and conference halls. 4 units dual 6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system.The system comprises of a subwoofer and a cluster of 4 x dual 6”-8”-10”-12” & 44mm or 75mm Titanium tweeter to set up a 2-way loudspeaker system that shall be driven by the external power amplifiers. The 1x15”/18” and 2x 18” subwoofer is of powerful bas
Active Line Array Powered Line Array
Feature:
- Compact 2-way passive line array loudspeaker system
- High performance subwoofer of low frequency
- Dual 6”& 44mm Titanium tweeter line array speakers
- Dual 8”-10”-12” & 75mm Titanium tweeter line array speakers
- 4 units dual 6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system
- High output, full range speakers for excellent sound reinforcement
- High SPL up to 133dB Max for all fixed installation sound system
- Drivers constructed with a unique thin foam surround to reduce distortion
- Ribbon tweeters give a wide frequency response of up to 20k Hz
- Adjustable rigging angle for the line array speakers
- Vertical dispersion of 80-110° and horizontal of 10°-50°
- Installation mounting bracket and accessories are included
Description:
CQ series 2-way passive line array loudspeakers is an high quality sound reinforcement system designed for night-clubs, theatres, cinemas and conference halls. 4 units dual 6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system.The system comprises of a subwoofer and a cluster of 4 x dual 6”-8”-10”-12” & 44mm or 75mm Titanium tweeter to set up a 2-way loudspeaker system that shall be driven by the external power amplifiers. The 1x15”/18” and 2x 18” subwoofer is of powerful bass effect, which is rated power output of 600W to 1200 watts. The speaker has excellent radiation characteristics, sound clear and delicate, strong voice penetration and high sensitivity. The installation mounting bracket and accessories are included.
Line Array Modular Loudspeaker Specifications:
| Model | CQ-206 | CQ-208 | CQ-210 | CQ-212 |
| Description | Single unit Dual 6' Line Array Modular Loudspeaker | Single unit Dual 8' Line Array Modular Loudspeaker | Single unit Dual 10' Line Array Modular Loudspeaker | Single unit Dual 12' Line Array Modular Loudspeaker |
| RMS Power | HF:60W/ LF:200W | HF:60W/ LF:400W | 80W/ LF:600W | 1000W |
| Peak Output | HF:240W/ LF:800W | HF:240W/ LF:1600W | 320W/ LF:2400W | 3000W |
| Impedance | 16Ω | 16Ω | 16Ω | 16Ω |
| Frequency Response | 80Hz-20KHz | 68Hz-20KHz | 45Hz-20KHz | 42Hz-20KHz |
| Sensitivity | HF:103dB/ LF:98dB | HF:103dB/ LF:101dB | HF:110dB/ LF:103dB | 102dB |
| Speaker | LF : 2×6' HF : 44mm Titanium tweeter | LF : 2×8' HF : 1x75mm Titanium tweeter | LF : 2×10' HF : 1x75mm Titanium tweeter | LF : 2×12' HF : 1×75mm Titanium tweeter |
| MAX SPL | HF:127dB/ LF:129dB | 127dB/ LF:133dB | 133dB/ LF:134dB | 133dB |
| Coverage | 110°×10° | 110°×10° | 110°×10° | 80°×50° |
| Connector | 2 x NL4 Speakon | |||
| Size(width×depth×height) | 622×314×204MM | 710×374×253MM | 892×474×275MM | 1050×550×355mm |
Passive Subwoofer Specifications:
Model | CQ-206B | CQ-208B | CQ-210B | CQ-212B |
| Description | Subwoofer for CQ-206 | Subwoofer for CQ-208 | Subwoofer for CQ-210 | Subwoofer for CQ-212 |
| RMS Power | 600W | 800W | 800W | 1200W |
| Impedance | 8Ω | 8Ω | 8Ω | 4Ω |
| Frequency Response | 35Hz-500Hz | 26Hz-500Hz | 26Hz-500Hz | 26Hz-500Hz |
| Sensitivity | 96db | 96db | 98db | 110dB |
| Speaker | LF : 1×15' | LF : 1×18' | LF : 1×18' | LF : 2×18' |
| MAX SPL | 122dB | 122dB | 127dB | 137dB |
| Connector | 2 x NL4 SPEAKON | |||
| Size(width×depth×height) | 622×454×440mm | 710×575×521mm | 893×575×521mm | 521×1087×575mm |
