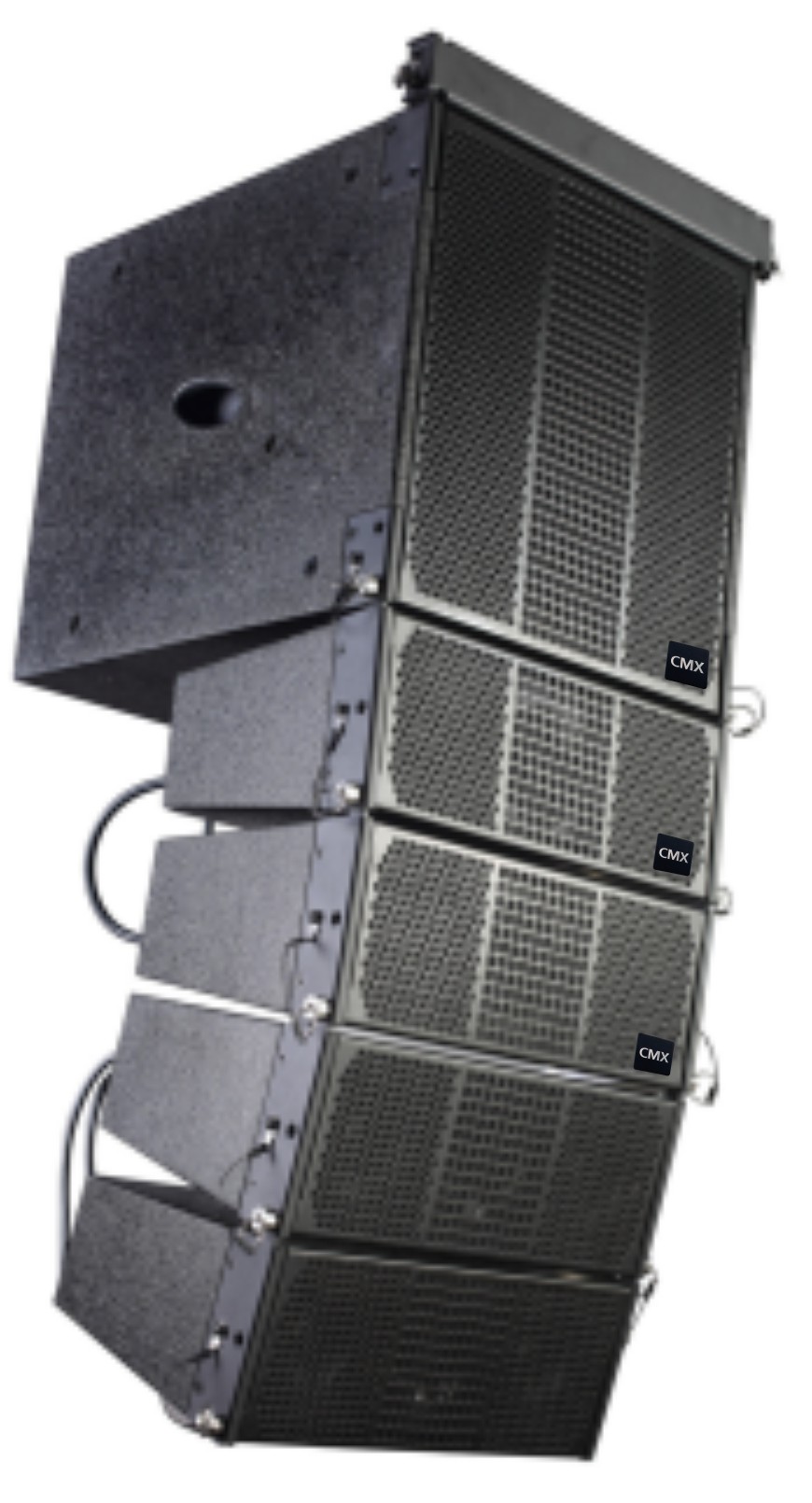

Active Dual 5”/6”/8”/10”/12” Line Array Loudspeakers - LAS series
Active Line Array Powered Line ArrayLAS series 3-way passive line array loudspeakers is an high quality sound reinforcement system designed for night-clubs, theatres, cinemas and conference halls. 4 units dual 5”-6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system.The system comprises of a subwoofer and a cluster of 4 x dual 5”-6”-8”-10”-12” & 44mm Titanium tweeter to set up a 3-way loudspeaker system that shall be driven by the external power amplifiers.
Active Line Array Powered Line Array
Feature:
- Compact 3-way passive line array loudspeaker system
- High performance subwoofer of low frequency
- dual 5”-6”-8”-10”-12” & 44mm Titanium tweeter line array speakers
- 4 units dual 5”-6”-8”-10”-12” line array speaker plus 1 unit active subwoofer can be one system
- High output, full range speakers for excellent sound reinforcement
- High SPL up to 131B Max for all fixed installation sound system
- Drivers constructed with a unique thin foam surround to reduce distortion
- Ribbon tweeters give a wide frequency response of up to 20k Hz
- Adjustable rigging angle for the line array speakers
- Vertical dispersion of 90° and horizontal of 0°-10°
- Combined up to 16 units for large venue applications
- Installation mounting bracket and accessories are included
Description:
LAS series 3-way passive line array loudspeakers is an high quality sound reinforcement system designed for night-clubs, theatres, cinemas and conference halls. 4 units dual 5”-6”-8”-10”-12” line array speaker plus 1 unit subwoofer can be one system.The system comprises of a subwoofer and a cluster of 4 x dual 5”-6”-8”-10”-12” & 44mm Titanium tweeter to set up a 3-way loudspeaker system that shall be driven by the external power amplifiers. The active 1x12”/15” and 2x 12”/15”/18” subwoofer is of powerful bass effect, which is rated power output of 350W to 1200 watts and continuous power output of 600 watts to 1600 watts and peak of 1200 to 4800watt. The speaker has excellent radiation characteristics, sound clear and delicate, strong voice penetration and high sensitivity. The installation mounting bracket and accessories are included.
Line Array Modular Loudspeaker Specifications:
Model | LAS-205 | LAS-206 | LAS-208 | LAS-210 | LAS-212 |
| Description | Single unit Dual 5' Line Array Modular Loudspeaker | Single unit Dual 6' Line Array Modular | Loudspeaker Single unit Dual 8' Line Array Modular | Loudspeaker Single unit Dual 10' Line Array Modular | Loudspeaker Single unit Dual 12' Line Array Modular Loudspeaker |
| RMS Power | 180W | 350W | 400W | 650W | 800W |
| Continuous Output | 500W | 800W | 600W | 800W | 1200W |
| Peak Output | 500W | 1000W | 1600W | 2400W | 2400W |
| Impedance | 16Ω | 8Ω | 8Ω | 8Ω | 4Ω |
| Frequency Response | 60Hz-18KHz(±3dB) | 48Hz-19KHz(±3dB) | 50Hz-20KHz(±3dB) | 48Hz-19KHz(±3dB) | 42Hz-20KHz(±3dB) |
| Sensitivity | 98db | 99db | 113db | 110db | 113db |
| Speaker | LF : 2×5' HF : 25mm Titanium tweeter | LF : 2×6.5' HF : 44mm Titanium tweeter | LF : 2×8' HF : 44mm Titanium tweeter | LF : 2×10' HF : 2×44mm Titanium tweeter | LF : 2×12' HF : 2×44mm Titanium tweeter |
| MAX SPL | 120dB | 130dB | 127dB | 130dB | 131dB |
| Coverage | 90°x 10° | 90°x 10° | 90°x 10° | 90°x 10° | 90°x 10° |
| Connector | 2×NL4MP SPEAKON | 2×NL4MP SPEAKON | |||
| Size(width×depth×height) | 395×140×145MM | 860×420×300MM | 650×410×225MM | 860×420×300MM | 1050×550×355mm |
Passive Subwoofer Specifications:
Model | LAS-12A | LAS-15A | LAS-212A | LAS-215A | LAS-218A |
| Description | Active Subwoofer for LAS-205 | Active Subwoofer for LAS-206 | Active Subwoofer for LAS-208 | Active Subwoofer for LAS-210 | Active Subwoofer for LAS-212 |
| RMS Power | 350W | 400W | 800W | 1000W | 1200W |
| Continuous Output | 650W | 800W | 1200W | 1500W | 1600W |
| Peak Output | 1200W | 1200W | 2000W | 2500W | 4800W |
| Power output | 350W | 2x400W+1200W/8Ω 2x700W+1600W/4Ω | 2x600W+1200W/8Ω 2x900W+1600W/4Ω | 2x900W+1200W/8Ω 2x1350W+1800W/4Ω | 2x1100W/8Ω 2x1600W/4Ω |
| Impedance | 8Ω | 8Ω | 4Ω | 4Ω | 4Ω |
| Frequency Response | 40Hz-800Hz | 300Hz-800Hz | 50Hz-200Hz | 40Hz-500Hz | 32Hz-500Hz |
| Sensitivity | 97db | 99db | 90db | 90db | 110dB |
| Speaker | LF : 1×12' | LF : 1×15' | LF : 2×12' | LF : 2×15' | LF : 2×18' |
| MAX SPL | 121dB | 130dB | 123dB | 124dB | 136dB |
| Connector | 2×NL4MP SPEAKON | ||||
| Size(width×depth×height) | 395x500x395mm | 450x520x450mm | 650×560×412mm | 860×750×430mm | 1150×840x570mm |
