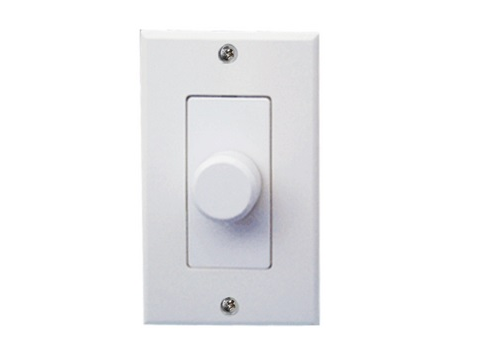

VE-C6 VE-C30 VE-C60 VE-C120 6W-120W 100V Volume Controller
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume ControllerVE-C6 VE-C30 VE-C60 VE-C120 6W-120W 100V Volume Controller range volume controls is volume attenuation for speaker loudness, wherever public address and background music speaker volume control is needed.
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume Controller
Features:
- PA (Public address) system use volume controller.
- Background music system use attenuator.
- Power control of 6W, 30W, 60W and 120W.
- Integrate with transformer technology of compact size.
- The volume controller is used to adjust the loudspeaker output in the room.
- The volume controller is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its outputs is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.
- High level white UV-protected ABS material to integrate together with the white wall and architecture design.
- Built-in transformer to control the PA 100V line loudspeakers.
- With 10 levels of volume attenuator and one position of off.
- Surface wall mount or in-wall mounting box shall be purchased separated.
- With 24V relay is optional.
Specification:
Model | VE-C6 | VE-C30 | VE-C60 | VE-C120 |
Description | 100V Volume Controller | |||
Rated Output | 6W | 30W | 60W | 120W |
Line Input | 100V or 70V | |||
Volume Step | 10 steps plus off | |||
Attenuation Per Step | 3dB | |||
Total Attenuation | 33dB | |||
Material | UV-protected ABS in white | |||
Mounting Way | Surface mount or in-wall mount | |||
Dimension | 115(W)×70(D)×54(H)mm | |||
