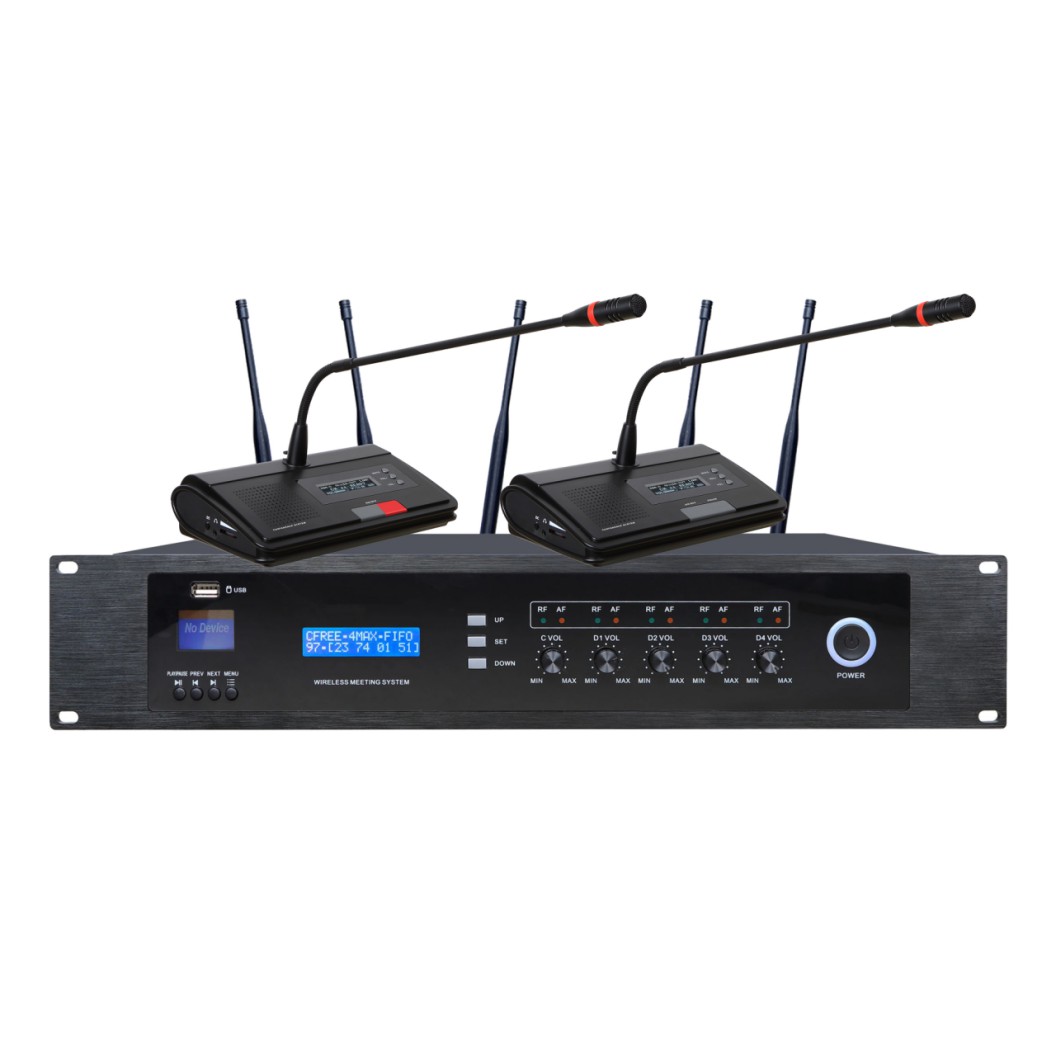

UHF-300 UHF Wireless Conference System Master Controller (With Recording)
Conference System Wireless Conference System UHF Wireless Conference System Digital Conferencing SolutionsUHF Wireless Conference System Master Controller (With Recording) UHF-300MC is UHF wireless conference system master controller is audio conference system by UHF wireless transmission, system capacity of 256 microphone units and 5 units microphone working simultaneously.
Conference System Wireless Conference System UHF Wireless Conference System Digital Conferencing Solutions
UHF Wireless Conference System Master Controller (With Recording)
UHF-300MC
Description:
The UHF Wireless Conference System with high flexibility and reliability, which is an ideal choice for mobile conference systems. It is one simple operation, compact structures, cost-effective range basic discussion conference system. The wireless conference system can be perfectly integrated into any meeting rooms without additional wiring. It’s the best UHF wireless conference solutions for small-scale conferences system. UHF-300MC is UHF wireless conference system master controller is audio conference system by UHF wireless transmission, system capacity of 256 microphone units and 5 units microphone working simultaneously.
Features:
- Simple operation UHF wireless conference system.
- Minimum cable wiring to save cable layout cost.
- Minimum cable connection ideal for rental use or portable conference system.
- Basic discussion conference system or audio conference system.
- Economy wireless conference system and meeting system.
- System capacity of 256 delegate units.
- Chairman unit with priority over delegate units.
- Chairman unit and delegate unit built-in rechargeable LIPO battery.
- Several meeting modes: Limit (1/2/3/4), First in first out (1/2/3/4), Chairman Only and free discussion modes.
- 5 delegate microphones can be turned on at the same time.
- Microphones can be operated on the built-in rechargeable lithium battery.
- Battery working time of 16 hours and standby time of 60 hours.
- Multi-channel high bandwidth and intermediate band frequency selective filtering to avoid any interference.
- Built-in feedback suppressor to decrease feedback and noise effectively.
- Built-in noise deletion circuit and TONE-LOCK system to make sure the system has strong anti-jamming function.
- Operation distance up to 300 meters and coverage up to 4,000 Square meters.
- Separate volume control for 5 channels on master controller front panel.
- Separate output level meter for each 5 channels for direct visual monitoring.
- UHF wireless conference system master control UHF-300MC is powered by DC12V.
- UHF-300MC with unbalanced 6.3mm jack output and balanced XLR output to sound reinforcement system.
- Video tracking function needs external equipment of UHF-300VT and cameras.
Model | UHF-300MC | |
Description | UHF Wireless Conference System Master Controller | |
Audio | Transmission Way | UHF wireless one way transmission by oscillation PLL technology |
Channel Qty | 5 channels (one for chairman Mic and four for delegate Mics) | |
Frequency Range | 740MHz-790MHz @ ±10PPM stability | |
Modulation Mode | FM | |
Receive Sensitivity | -100dBM | |
Output Level | Balanced XLR output: 0-600mV, unbalanced Jack output: 0-300mV | |
Frequency Response | 60Hz-16KHz | |
S N Ratio | >105dB | |
THD | <0.5% | |
Communication Distance | 300 meters | |
Control | Transmission Way | UHF wireless two way transmission |
Channel Qty | 16 | |
Frequency Range | 740MHz-790MHz | |
Modulation Mode | FSK | |
Receive Sensitivity | -100dBM | |
Transmitted Power | +6dBm (adjustable) | |
Frequency Deviation | <0.002 | |
Communication Rate | 100KBPS | |
Signal Coverage | 4,000 Square meters | |
Mechanical | Power Supply | DC12V-15V, ≧1A |
Power Consumption | < 7W | |
Operation Temperature | -20℃ to +55℃ | |
Dimension | 485(W) x 355(D) x 100(H)mm | |
Weight | 7.2 kg | |
