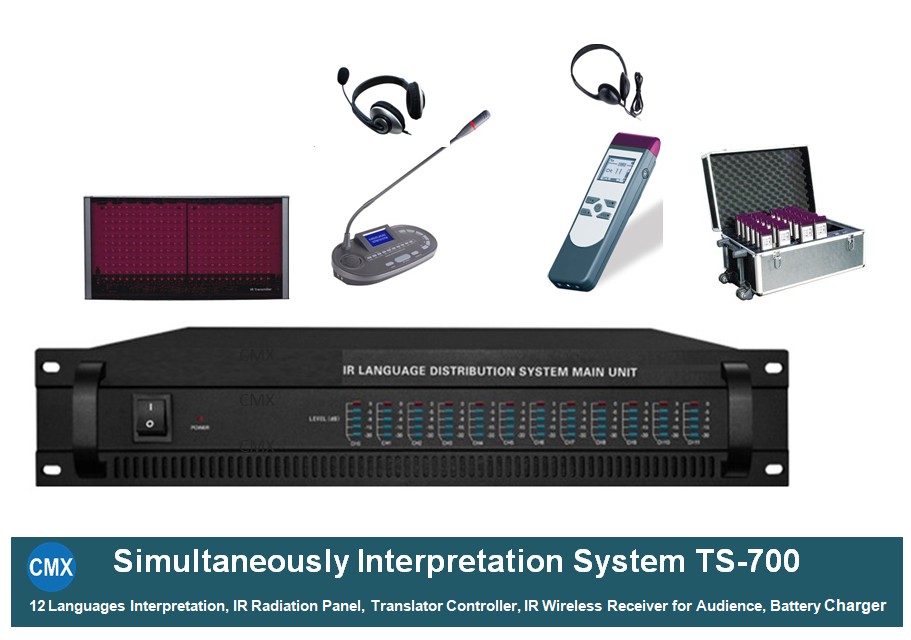

TS-700 IR Wireless 12 Channel Transmitter 12 Channel Language Distribution and Simultaneous Interpretation System
Conference System Digital Conferencing SolutionsSimultaneous Interpretation System IR Wireless 12 Channel Transmitter TS-700 is 12 channel language distribution and simultaneous interpretation system for multiple languages conferencing system solutions, where different languages could be translated and distributed to different countries listeners.
Conference System Digital Conferencing Solutions
IR Wireless 12 Channel Transmitter
TS-700
Features:
- Head of language distribution and simultaneous interpretation system.
- 12 languages (1 ground and 11 international) simultaneous translation and distribution system.
- Ideal for international summit meeting, religious meeting and hotel rental use.
- This transmitter will receive 12 different voice inputs then generate the infrared wireless signal to be radiated by the IR radiator, while the attendant with IR receiver could receive different translated language by selecting different receiving channels.
- Stable strong signal for accurate wireless infrared transmission system to prevent interference.
- Suitable for indoor and outdoor moderate and big conference hall use.
- Automatic output level control technology (ALC).
- No interference from lighting system and other wireless communication system.
- Advanced daisy chain connection to save cable and layout cost.
- Elegant and ergonomic design to integrate with the architecture application.
- 12 channel interpretation inputs and outputs.
- Each channel with REC output for recording system like DVR or recorder.
- Test function to ensure the well installation.
- Separate 12 channel output level display for visual monitor use.
Model | TS-700 |
Description | IR Wireless 12 Channel Transmitter |
Modulation Way | FM modulation |
Frequency Synthesis | Digital PLL |
Frequency Band | 1.7-4.0MHz |
Frequency Response | 100-14KHz |
Frequency Stability | 100ppm |
Pre-emphasis | 75μSec. |
Distortion | <0.5% |
Channel Separation | >70dB |
RF Output Level | 700mV |
RF Output Impedance | 50Ω |
Input Impedance | 18KΩ |
Max Input Level | 2V |
AGC Range | 30dB |
S/N Ratio | >75dB |
Power Consumption | 40W |
Power Supply | AC220V or 115V, 50-60Hz |
Dimension | 485(W)×355(D)×88(H)mm |
Weight | 7.0kg |
