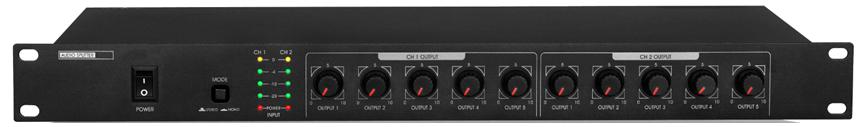

Signal Distributor/Signal Splitter (1:12 / 2:6) PA-100SD
Audio Sources Media Player CD Mp3 Player Mp3 PlayerPA-100ST is one Signal splitter or signal distributor with 2 balanced XLR line inputs which are buffered and divided across 6 balanced XLR outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups. Separate volume control for each 12 outputs. Separate output signal indicators. With mono/stereo output selector.
Audio Sources Media Player CD Mp3 Player Mp3 Player
Description:
PA-100ST is one Signal splitter or signal distributor with 2 balanced XLR line inputs which are buffered and divided across 6 balanced XLR outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups. Separate volume control for each 12 outputs. Separate output signal indicators. With mono/stereo output selector.
Features:
- Used as a 6-way stereo splitter or 12-way mono splitter
- Ideal for multiple-zone & multiple amplifier applications
- 2 balanced XLR line inputs and 12 balanced XLR line outputs
- Up to 12 outputs from 1 or 2 inputs
- Separate volume control for each 12 outputs.
- Separate output signal indicators.
- With mono/stereo output selector
- 19” rack mount design of 1U height
Specification:
Model | PA-100SD |
| Description | Signal Distributor/Signal Splitter |
| Power Supply | 230V AC, 50/60Hz |
| Power Consumption | 10W |
| Line Input | Two balanced XLR inputs, 600Ω, 775mV |
| Line Output | 6 Stereo or 12 mono XLR outputs, 15kΩ, 775mV |
| Frequency Response | 20-20KHz |
| S/N Ratio | <90dB |
| THD | <0.5% |
| Dimension (mm) | 484×44×220mm |
| Weight | 2.0kg |
