PA-100FA Voice Alarm Panel with Recorder
Audio Sources Media Player CD Mp3 Player Mp3 PlayerThe PA-100FA is used for auto voice alarm & evacuation system in case of emergency, it is one of the most important equipments of public address system or PA system. It is built-in recorder, through which the pre-recorded voice message could be recorded and stored. The voice alarm panel and recorder will auto-announcement the pre-recorded message once control input.
Audio Sources Media Player CD Mp3 Player Mp3 Player
Description:
The PA-100FA is used for auto voice alarm & evacuation system in case of emergency, it is one of the most important equipments of public address system or PA system. It is built-in recorder, through which the pre-recorded voice message could be recorded and stored. The voice alarm panel and recorder will auto-announcement the pre-recorded message once control input.
Feature:
- Auto-announcement the pre-recorded message once control input
- Built-in voice recorder and fire alarm generator
- The recorder available through external microphone and external line
- The recorder with start, stop and play functions
- The system with siren, play, record and off selective knob
- One voice alarm input and one alarm output by phone jack type
- One microphone input and one line input by phone jack type
- 1 minute of digital customized voice evacuation message to the built-in memory IC
- With record volume and alarm output volume attenuator by protective knobs
- With Fire, start, stop and power working status indicators
Specification:
| Model | PA-100FA |
| Description | Voice Alarm Panel with Recorder |
| Input | Microphone: <5mV, 600Ω, unbalanced; Line: <400mV 10kΩ, unbalanced |
| Output | >200mV Sire or Recorded Message |
| Recorder | IC inside, 60 seconds, write in more than 8,000 times. |
| Frequency Response | 100Hz-3.4kHz（±3dB） |
| Alarm Input | One alarm input, 0V short circuit closed contact |
| Power Supply | 230V AC, 50-60Hz |
| Dimension | 484×350×88mm |
| Weight | 6.1kg |

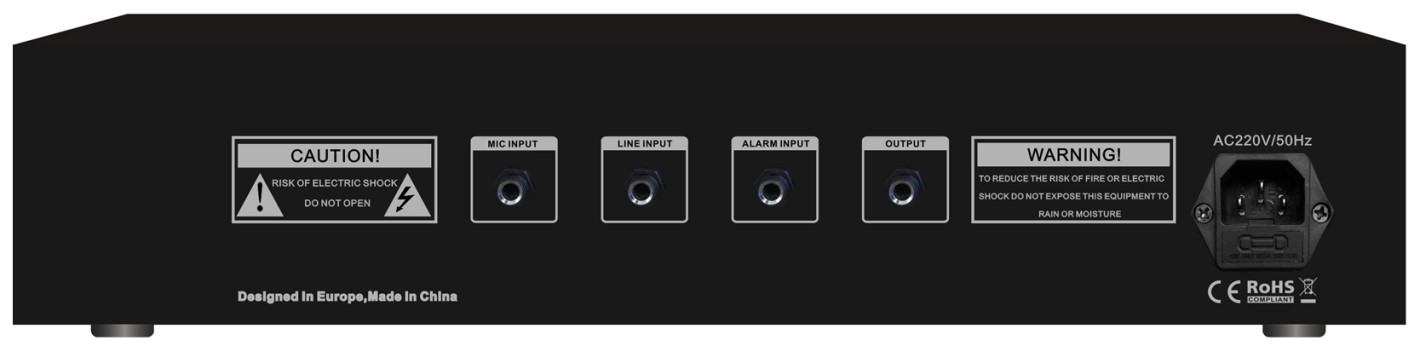

Rear Panel:
