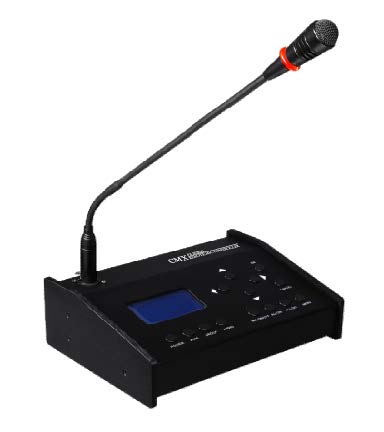

PA-200RM 10 Zone Paging Selector
The 10 zone remote microphone for remote paging use，Paging modes of separate zone, group zone and all zones remote paging，System capacity of 10 remote paging microphone working at the same time
Feature:
- The 10 zone remote microphone for remote paging use
- Paging modes of separate zone, group zone and all zones remote paging
- System capacity of 10 remote paging microphone working at the same time
- Work together with PA-200MC and PA-100PS paging controller
- High sensitivity condenser microphone of chime and mute features
- Audio signals using high-quality balanced transmission technology
- Audio signals and control signals using real-time transmission technology
- External 24V DC input connector
Specification:
Model | PA-200RM |
| Description | |
| Voltage | 10 Zone Remote Microphone |
| Mic. Input | 24V DC |
| Line Output | MIC:600 ohms(Ω) 5mV,unbalanced |
| Fre. Resp. | LINE:10k ohms(Ω)10V,unbalanced |
| THD | MIC,LINE:60 Hz ~ 16k Hz (± 1 dB) |
| Power Consumption | <0.5% at 1kHz |
| Sensitivity | 5mV |
| Rated Output Level | 5V (parallel) |
| SNR | >70dB |
| Distortion | <1% (Rated Output), 1KHz |
| Frequency | 100Hz~16KHz |
| Output Impedance | 100Ω |
| Operation Temp | +5℃ - 40℃ |
| Storage Temp | -20℃ - 70 |
| Relative Temp | <95% |
| Dimensions | 238×170×70mm |
| Net Weight | 2.3Kg |
