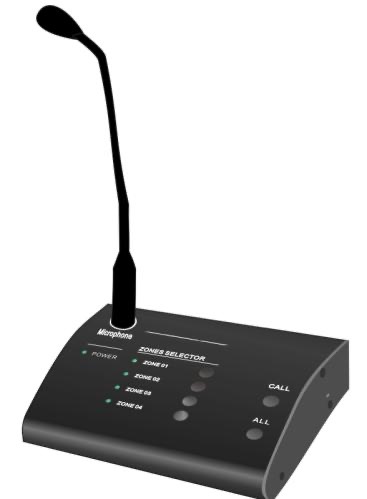

4 Zone Remote Microphone PA-4500RM
PA-4500RM is a remote paging microphone work with PA-4500 series amplifier, which is of 4 zone paging features,
its communication distance up to 200 meters through straight CAT6 cable, each amplifier capacity of connection up to
6 units of remote paging microphone, these microphone are connected hand-by hand. These 6 remote paging microphones could be pre-set different priorities by its dipswitch. The remote paging microphone is direct power
supplied by the amplifier.
Description:
PA-4500RM is a remote paging microphone work with PA-4500 series amplifier, which is of 4 zone paging features, its communication distance up to 200 meters through straight CAT6 cable, each amplifier capacity of connection up to 6 units of remote paging microphone, these microphone are connected hand-by hand. These 6 remote paging microphones could be pre-set different priorities by its dipswitch. The remote paging microphone is direct power supplied by the amplifier.
Feature:
- 4 zone remote microphone for paging system.
- Economy paging station with 4 zone mixer amplifier.
- Each amplifier capacity of 6 unit remote microphones.
- Multiple remote microphones cascaded together for use.
- With 4 zones and one all zones selection buttons.
- With 4 zone selection indicators.
- With power, send and busy indicators.
- With call button to enable the announcement after zone selection. With chime for reminding before announcement.
- Remote microphone is directly powered by the amplifier.
- With two RJ45 ports for amplifier and for next remote microphone. With microphone volume control and aux input.
- With microphone priority dipswitch to set up master and slave units. Straight CAT6 cable for communication up to 200 meters.
Specification:
| Model | PA-4500RM |
| Description | 4 Zone Remote Microphone |
| Power Consumption | 3W |
| Zone Capacity | 4 Zones |
| System Capacity | 6 Remote microphones |
| Aux Inputs | 350mV, 10kΩ |
| Mic Input | 5mV, 600Ω |
| Frequency Response | 80Hz~16kHz |
| THD | ＜1% at RMS,1KHz |
| S/N Ratio | >70dB |
| Operating Temp | -20℃ to +70℃ |
| Power Supply | Direct from the amplifier, 24V DC, ±20% |
| Humidity | <95% no condensation |
| Dimension | 153×52×175mm |
| Weight | 0.8kg |
Rear Panel:
