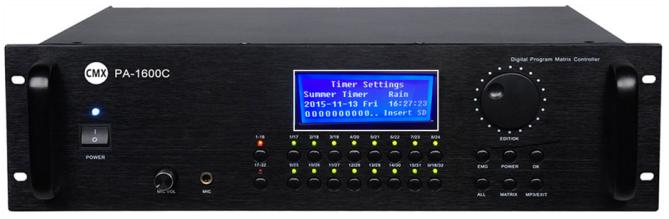

PA-1600C 16 Zone Audio Matrix Controller

Graphic
Detail

PA-1600C 16 Zone Audio Matrix Controller

PA System

PA-1600C is one integrated public address system controller built-in audio matrix, weekly timer, 32 zone speaker selector, 32 zone paging controller, which could set up a 32 zone 32 channel music multiple room audio system, the system zone capacity expandable 64 zones. The PA-1600C is built-in weekly timer could set up auto-announcement at pre-set time. The PA-1600C is with dipswitch could be set up as master controller and slave controller. By connection with PA-1600RM remote paging microphone,

PA System

Download Annex

Product Detail

Description:

PA-1600C is one integrated public address system controller built-in audio matrix, weekly timer, 32 zone speaker selector, 32 zone paging controller, which could set up a 32 zone 32 channel music multiple room audio system, the system zone capacity expandable 64 zones. The PA-1600C is built-in weekly timer could set up auto-announcement at pre-set time. The PA-1600C is with dipswitch could be set up as master controller and slave controller. By connection with PA-1600RM remote paging microphone, live speech, separate zone, group zones and all zone

paging system could be easily set up.

Feature:

Public address system controller with 32 channel audio matrix
Ideal PA sound system controller for school, shopping mall, hotel, and intelligent office etc
PA system controller includes audio matrix, weekly timer, 32 zone speaker selector, 32 zone paging controller
32 Channel audio matrix controller with 8 channel inputs and 32 outputs and output attenuation
Zone capacity expandable to 64 zones by connection one master controller and 7 units slave controllers
PA-1600C with dipswitch could be set up as master or slave controller
Connection up to 5 remote paging microphone PA-1600RM for zone paging system

Specification:

Model	PA-1600C
Description	32 Zone Audio Matrix Controller
Channel	8 channel inputs and 32 channel outputs
Max Capacity	64 zones by cascaded 7 slave units together
Call Station Input	Call station input 1-5, RJ45 port, 10kΩ, 10V, balanced
Input	Line 1-8: 10kΩ, 330mV, unbalanced RCA input EMC1: 10kΩ, 330mV, unbalanced
Output	Line 1-32: 10kΩ, 330mV, unbalanced RCA output EMC1: 10kΩ, 0.775mV, 0dB, unbalanced
Alarm	Alarm input: 0V, closed circuit contact Alarm output, 0V, closed circuit contact
Display	128×64 LCD display in English
Frequency Response	60-16KHz (±3dB)
Control	32 zone output volume controls Menu buttons: up, enter & down ID dip switch Master or slave dip switch
Protection	AC fuse 0.5A, 1PCS
Power Consumption	20W
Power Supply	AC 230V, 50-60Hz
Dimension	484×390×132mm
Net Weight	7.1kg

Rear Panel:

Connection Diagram:
