Outdoor Horn Speaker HSK-15F
2025-09-11 16:09:20
Click：
“
Multiple power taps of 15-7.5W,Waterproof level of IP66,Line input 100V or 70V by speaker cable tail,Ideal for outdoor paging and speech use in school, office, hotel and airport
”
Feature:
- Public Address (PA) system paging horn speaker
- Outdoor horn loudspeaker with 100V/70V transformer
- Ideal for outdoor paging and speech use in school, office, hotel and airport
- Superior long distance voice speech clear & crystal delivery
- Multiple power taps of 15-7.5W
- Waterproof level of IP66
- Line input 100V or 70V by speaker cable tail
- ABS enclosure and stainless metal bracket in white
- Quick installation by supplied stainless mounting bracket
Specification:
| Model | HSK-15F |
| Description | Outdoor Horn Speaker |
| Power Taps | 15-7.5W |
| Line Input | 100V or 70V |
| Frequency Response | 400-5KHz |
| SPL(@1W/m) | 105±3dB |
| IP Rate | IP66 |
| Dimension | 228× 149×232mm |
| Net Weight | 1.4kg |
| Material | ABS enclosure and stainless metal bracket in white |
| Mounting Way | Quick installation by supplied stainless mounting bracket |

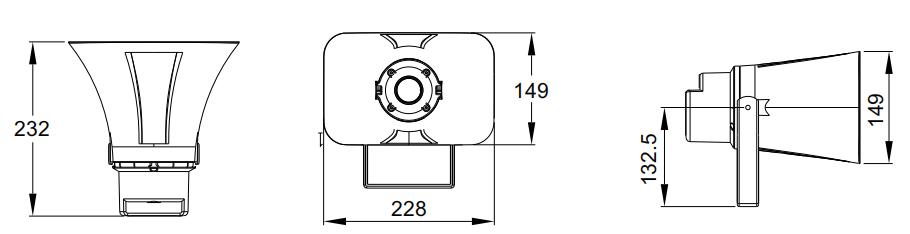

Side View & Dimension:

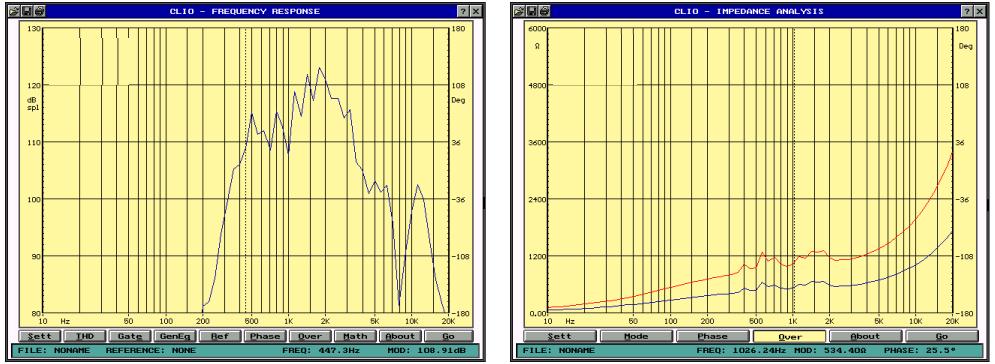

Frequency Response & SPL Diagram:
