Outdoor Horn Speaker HSK-15FH

2025-09-11 16:07:34

Click:

Multiple power taps of 15-7.5-3.75-1.9W & 8 Ohm,Waterproof level of IP66,Line input 100V or 70V by speaker cable tail,Ideal for outdoor paging and speech use in school, office, hotel and airport

Feature:

● Public Address (PA) system paging horn speaker

● Outdoor horn loudspeaker with 100V/70V transformer

● Ideal for outdoor paging and speech use in school, office, hotel and airport

● Superior long distance voice speech clear & crystal delivery

● Multiple power taps of 15-7.5-3.75-1.9W & 8 Ohm

● Waterproof level of IP66

● Line input 100V or 70V by speaker cable tail

● ABS enclosure and stainless metal bracket in white

● Quick installation by supplied stainless mounting bracket


Specification:

Model HSK-15FH
Description Outdoor Horn Speaker
Power Taps 15-7.5-3.75-1.9W & 8 Ohm
Line Input 100V or 70V
Frequency Response 300-8KHz
SPL(@1W/m) 105±3dB
IP Rate IP66
Dimension 228× 149×232mm
Net Weight 1.4kg
Material ABS enclosure and stainless metal bracket in white
Mounting Way Quick installation by supplied stainless mounting bracket

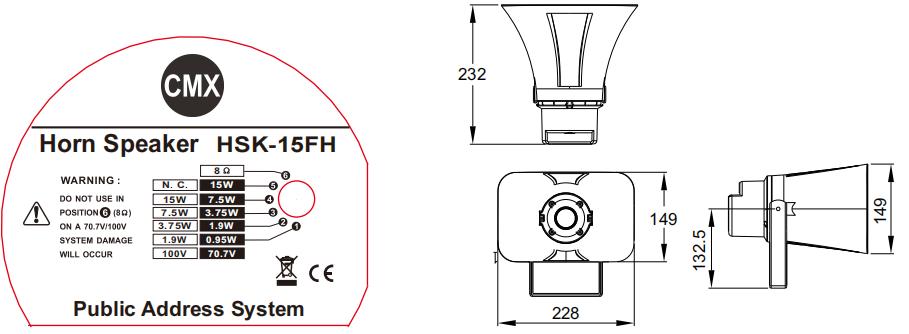

Side View & Dimension:

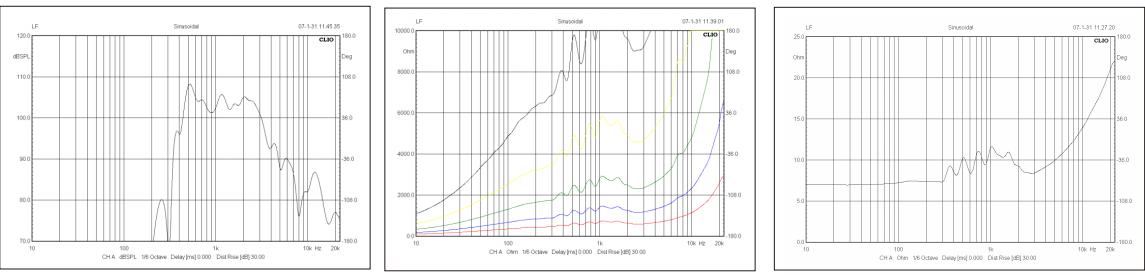

Frequency Response & SPL Diagram:
