WSK-420DSEN WSK-420DSWEN EN54-24 Outdoor Wall Mount Speaker 4.5 inch 20W 100V 70V & 8 Ohm
2024-04-29 14:24:00
Click:
“WSK-420DSEN WSK-420DSWEN is EN54-24 Wall Mount Speaker 20W 100V 70V & 8 Ohms, black and white two colors, ABS cabinet, 4.5 inch dual cone driver unit, IP66 waterproof rate suitable for any outdoor background music systems. Theramic connector, high temp capacitor and fire resistant cable and V0 ABS cabinet.”
Feature:
Compliant with the EN54-24 standards
Ideal for indoor outdoor BGM and paging system
IP66 waterproof finish for all extreme weather applications
4" weatherproof woofer and 1” silk tweeter 2-way speaker system
ABS fire-resistant enclosure, stainless metal grille & stainless mounting bracket
Built-in ceramic connector, 95℃ fire-resistant cable and thermal fuse
Power output 20-10-5-2.5W & 8Ω
70V/100V speaker with power tapping or as a low impedance 8 Ohm speaker
Waterproof cable wiring cover for IP66 secure weatherproof protection
Ultra- reliable, fail safe loudspeaker even at high power loads
Supplied with 360° rotatable bracket for horizontal and vertical installation angle adjustment
Specification:
Model
WSK-420DSEN
WSK-420DSWEN
Description
EN54-24WallMountSpeaker
RatedPowerOutput
20Wand Max.40W
PowerTaps
20-10-5-2.5W& 8Ω
LineInput
100Vor70V&8Ω

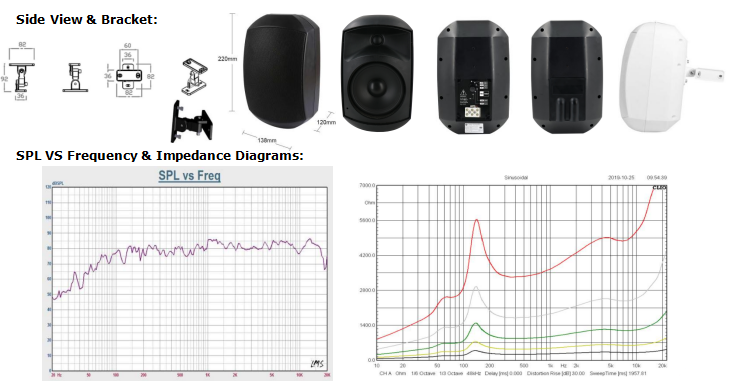

FrequencyResponse
80-20KHz
SPL(@1W/m)
91±3dBand Max110dB(1m)
IPRate
IP66
SpeakerUnit
4"weatherproofwoofer and 1”silktweeter2-wayspeakersystem
Dispersion
Vertical:180°andHorizontal:180°(1KHz)
Dimension
220×138×120mm
Material
ABS fire-resistant enclosure,stainless metal grille&stainlessmountingbracket
WSK-420DSEN WSK-420DSWEN EN54-24 Outdoor Wall Mount Speaker 4.5 inch 20W 100V 70V & 8 Ohm
WSK-420DSEN WSK-420DSWEN is EN54-24 Wall Mount Speaker 20W 100V 70V & 8 Ohms, black and white two colors, ABS cabinet, 4.5 inch dual cone driver unit, IP66 waterproof rate suitable for any outdoor background music systems. Theramic connector, high temp capacitor and fire resistant cable and V0 ABS cabinet.
