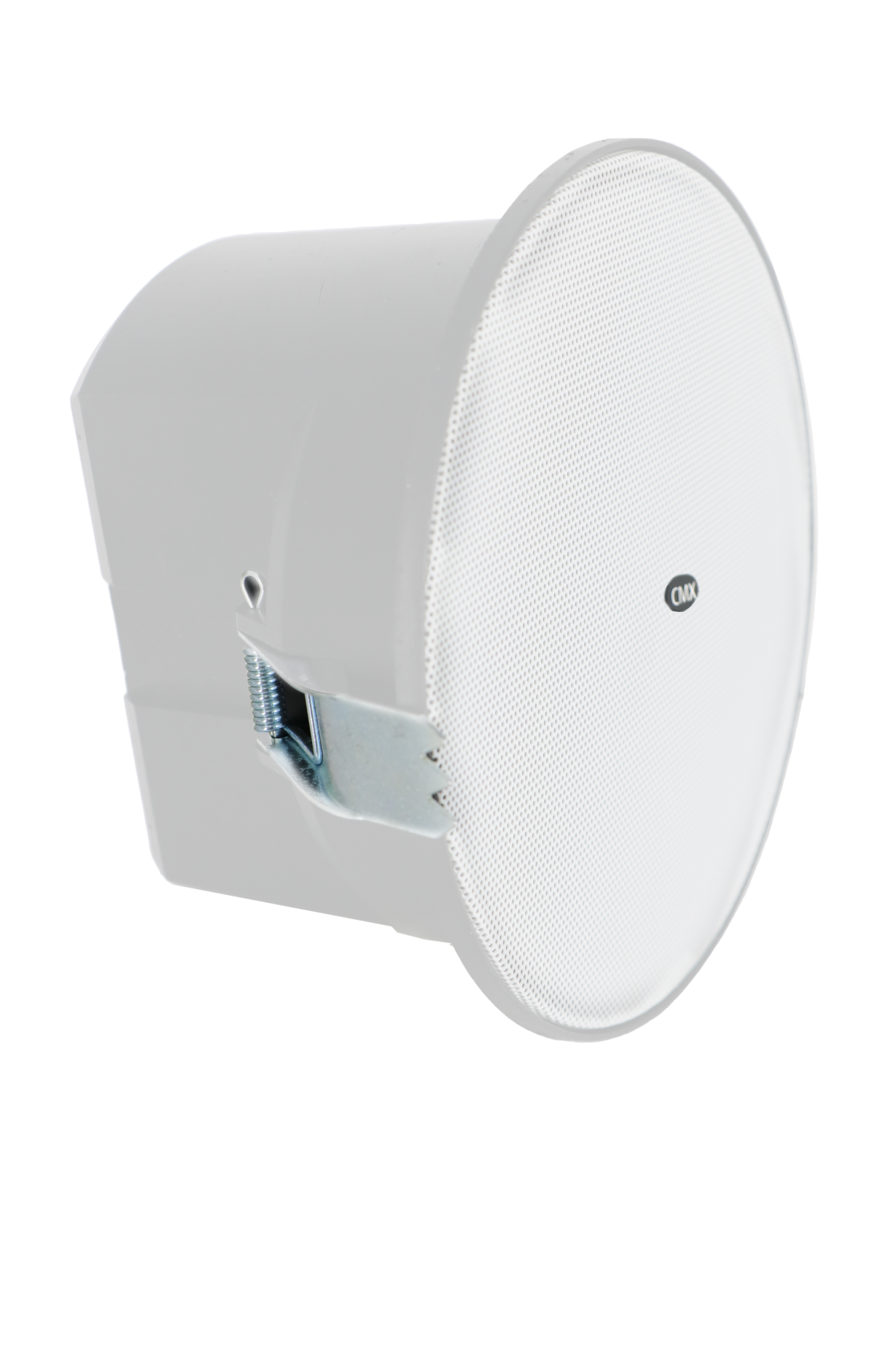

8” Ceiling Speaker with Back Can CSK-830HA
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker 2-Way Speakers8” Ceiling Speaker with Back Can CSK-830HA，Built-in 100v/70v transformer for PA & VA system，Rated power output 30W-15W-7.5W at 100V，ABS enclosure,metal grille in white and with ABS back can
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker 2-Way Speakers
Features:
- Commercial ceiling speaker with 100V transformer
- Built-in 100v/70v transformer for PA & VA system
- Rated power output 30W-15W-7.5W at 100V
- 8' full range paper driver unit
- ABS enclosure,metal grille in white and with ABS back can
- In-ceiling quick installation by spring clip
Specifications:
Model | CSK-830HA |
| Description | 8” Ceiling Speaker with Back Can |
| Power Taps 100V | 100V 30W-15W-7.5W |
| Sensitivity 1W/1m | 96dB |
| Frequency Response | 60-15KHz |
| Speaker Driver | 8” full range paper drive |
| Finish | ABS enclosure,metal grille in white and with ABS back can |
| Mounting | Way In-ceiling spring clip quick installation |
| Cutout Size | Ø205mm |
| Dimensions | Ø233×142mm |
| Weight | 700g |

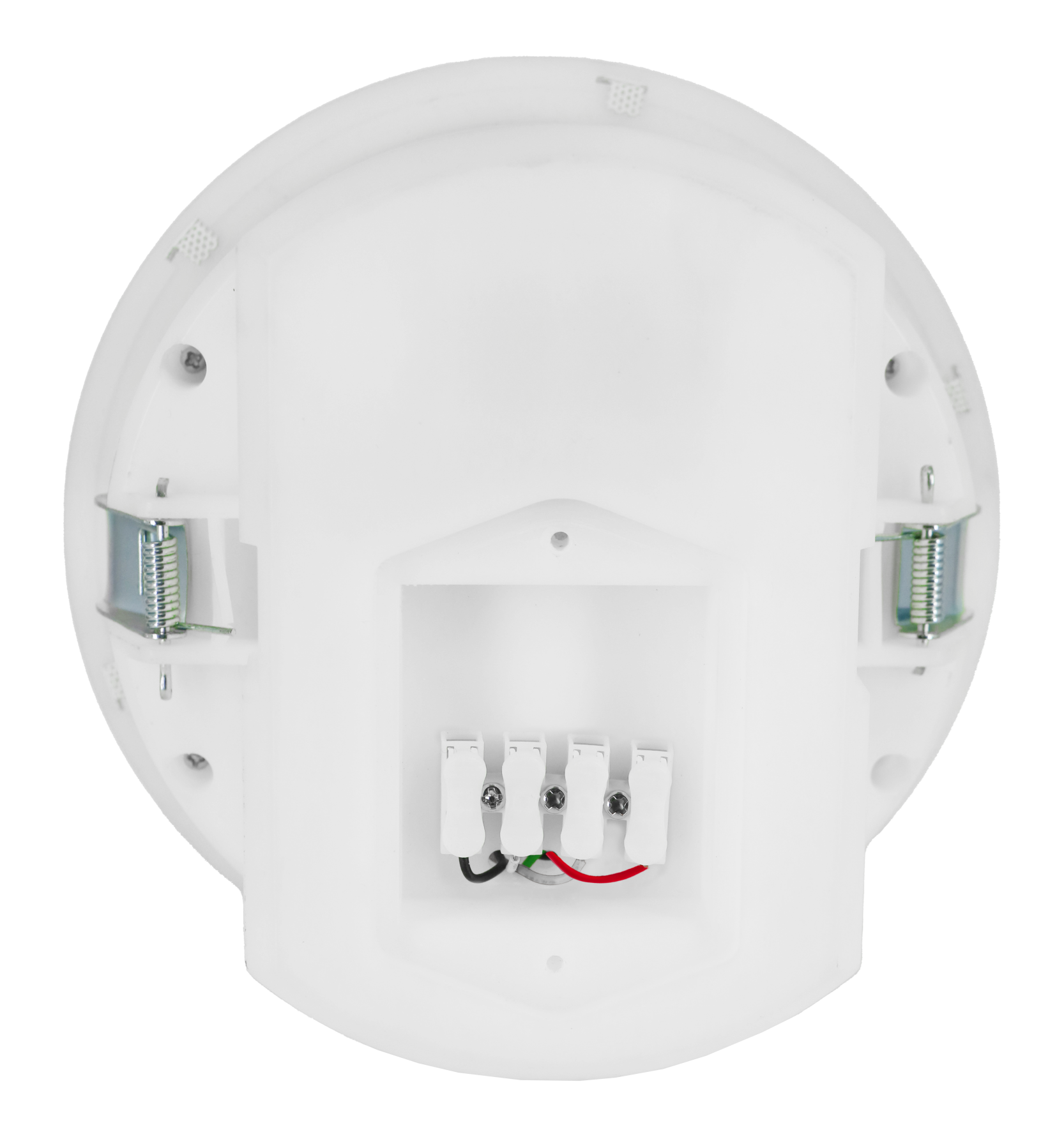

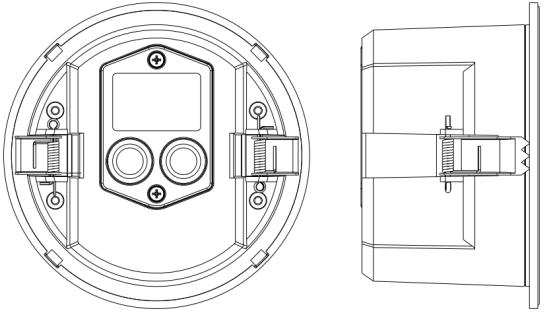

Installation & Wiring diagram:

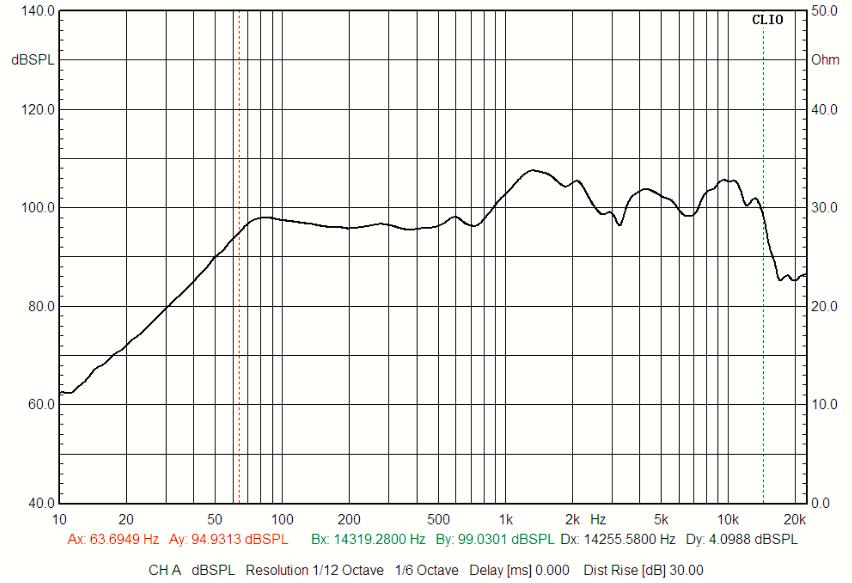

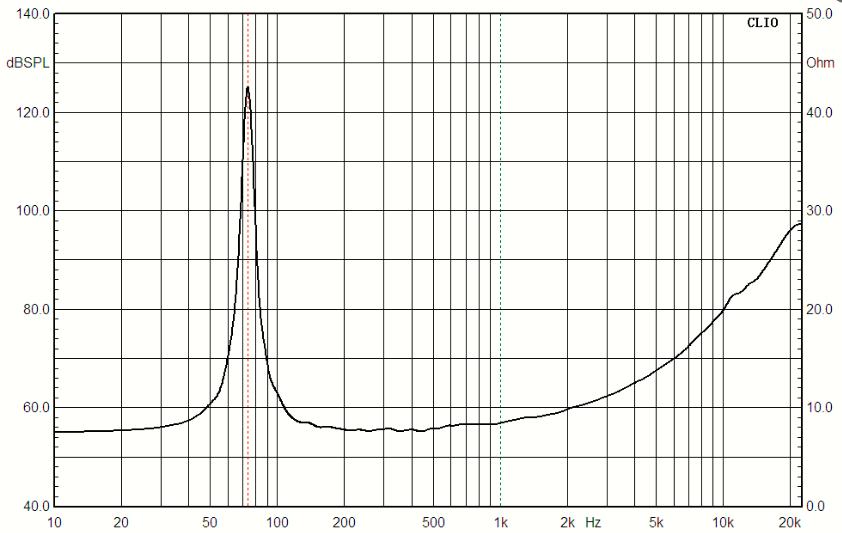

Frequency Response and Impedance Diagram:
