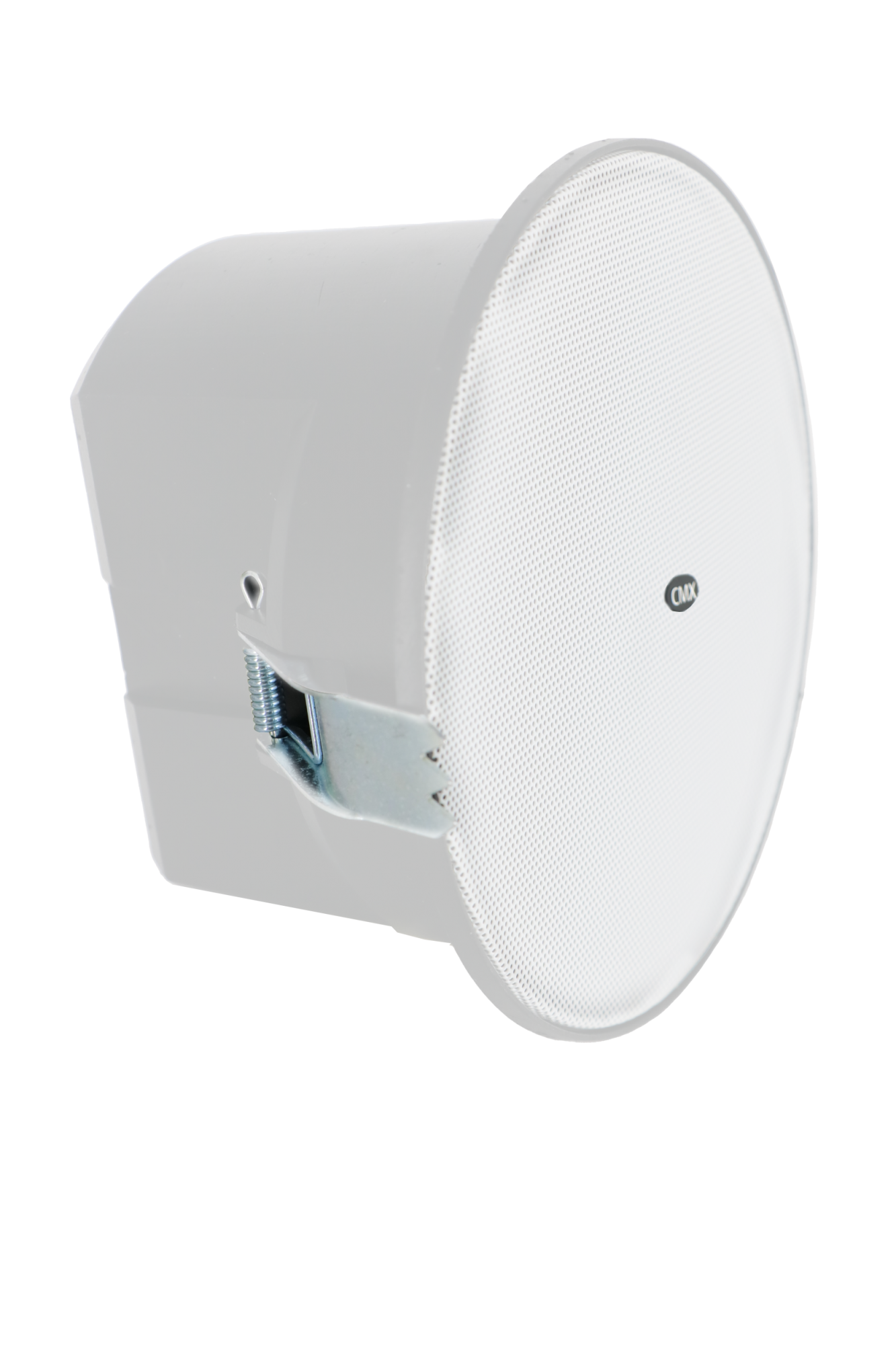

6” Ceiling Speaker with Back Can CSK-620HA
100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker 2-Way Speakers6” Ceiling Speaker with Back Can CSK-620HA，Built-in 100v/70v transformer for PA & VA system，Rated power output 20W-10W-5W at 100V，ABS enclosure,metal grille in white and with ABS back can
100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker 2-Way Speakers
Features:
- Commercial ceiling speaker with 100V transformer
- Built-in 100v/70v transformer for PA & VA system
- Rated power output 20W-10W-5W at 100V
- 6' full range paper driver unit
- ABS enclosure,metal grille in white and with ABS back can
- In-ceiling quick installation by spring clip
Specifications:
Model | CSK-620HA |
| Description | 6” Ceiling Speaker with Back Can |
| Power Taps 100V | 20W-10W-5W |
| Sensitivity 1W/1m | 93dB |
| Frequency Response | 80-15KHz |
| Speaker Driver | 6” full range paper drive |
| Finish | ABS enclosure,metal grille in white and with ABS back can |
| Mounting | Way In-ceiling spring clip quick installation |
| Cutout Size | Ø170mm |
| Dimensions | Ø186×110mm |
| Weight | 520g |
Installation & Wiring diagram:
Frequency Response and Impedance Diagram:
