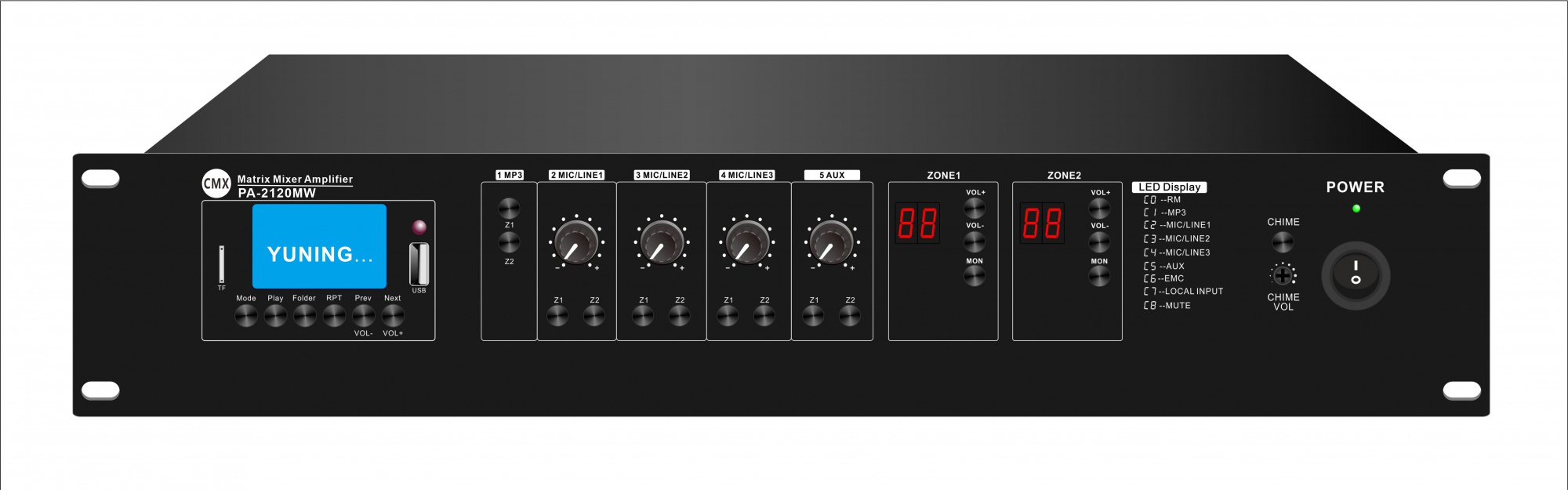

Wi-Fi Internet Streaming 2 Zone Matrix Mixer Amplifier with USB/SD/FM/Bluetooth PA-2120MW/PA-2240MW/PA-2350MW/PA-2500MW

Graphic
Detail

Wi-Fi Internet Streaming 2 Zone Matrix Mixer Amplifier with USB/SD/FM/Bluetooth PA-2120MW/PA-2240MW/PA-2350MW/PA-2500MW

Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Wi-Fi Amplifiers Matrix Amplifier

Wi-Fi Internet Streaming 2 Zone Matrix Amplifier delivering 240W to 1000W output with Bluetooth and Wi-Fi streaming capability. Controlled from an Android or iOS smart phone, the Wi-Fi module is compatible with freely available apps to stream music and podcasts directly from a Wi-Fi network. Embedded internet radio offers high quality digital audio from almost any online radio station or podcast available worldwide. Subscription services can store online playlists which can be cast directly from

Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Wi-Fi Amplifiers Matrix Amplifier

Download Annex

Product Detail

Description:

Wi-Fi Internet Streaming 2 Zone Matrix Amplifier delivering 240W to 1000W output with Bluetooth and Wi-Fi streaming capability. Controlled from an Android or iOS smart phone, the Wi-Fi module is compatible with freely available apps to stream music and podcasts directly from a Wi-Fi network. Embedded internet radio offers high quality digital audio from almost any online radio station or podcast available worldwide. Subscription services can store online playlists which can be cast directly from the internet without requiring the smart phone to be connected to the network. Wireless streaming of tracks and playlists stored on the smart phone can be sent from within the app or directly via Bluetooth to the amplifier. In addition, the Wi-Fi Internet Streaming Amplifier has inputs for USB and TF card for playback of stored tracks. The Wi-Fi Internet Streaming Amplifier provides a versatile 'hands off'background music solution for continuous playback of music from internet services or a choice of other sources for bars, cafes, restaurants, reception areas and house parties. The Wi-Fi Internet Streaming 2 Zone Matrix Amplifier support multiple zone or multiple room of different music, while it also supports multiple mobile to remote control over Wi-Fi, so remote volume and music control is easy for both commercial or home audio applications. The PA-2500MW series 2 zone matrix mixer amplifier is designed for 19” rack mount installation or tabletop use both applications, it is ideal for both professional sound system and commercial audio solutions, since it is designed with 2 zone speaker outputs support 100V & 8-16Ω. The PA-2500MW series mixer amplifier integrates two 100V & 8 Ω amplifier into one unit, so it could be used as stereo mixer amplifier or 2 zone commercial mixer amplifier. The mixer amplifier is built-in media player of USB/SD/FM/ & Bluetooth, with 3 mic inputs, line input, EMC input, 8 units 2 zone remote paging mic PA-2500RM and 6 units remote panel PA-2500SV and one mute input. 3 Mic/line switchable inputs, 1 aux input and an integral USB/SD/FM audio player with Bluetooth receiver can be matrix switched to any of the 2 zones independently. Mic1 channel with VOX highest priority and each microphone 1-3 inputs have switchable +48V phantom power. A master chime with volume can be used for paging calls and Alerts. The 2 zones mixer amplifier is designed for multi-room commercial audio systems requiring different audio sources & multiple paging microphones,additionally, up to 8 units remote microphones and 2 units 2 zone remote control panes could be connected to this 2 zones mixer amplifier through CAT6 cable, which could be installed in two separate rooms to select different audio sources locally and adjust the local loudspeaker loudness and input Bluetooth to its own room. The mute input could integrate with fire alarm system or other third-party system. The amplifier is designed with complete protection includes short-circuit, clip, overload and high temp.

Feature:

Desktop or 19” rack mount 2 zone public address 2 zone matrix mixer amplifier
2 Zone Mixer Amplifier built-in medial player with USB/SD/FM/ & Bluetooth
Wireless multiple room multiple music system with paging microphone and wall plates
Wi-Fi Internet Streaming 2 zone matrix mixer amplifier with Mp3 player, FM radio & Bluetooth
Wi-Fi streaming amplifier with wireless smart phone control
Free Wi-Fi Legacy Player app for Android or iOS
Support Spotify, DLNA, airplay, internet radio and any online radio stations.
Support multiple zone or multiple room of different music
Support multiple mobile to remote control over Wi-Fi
Support one mobile to remote control multiple Wi-Fi amplifiers
With LAN port and WPS to reset Wi-Fi address
Rate power output at 2×120W, 2×240W, 2×350W to 2×500W
2 zone separated speaker output of 100V & 8-16Ω
Each input with zone 1 or zone 2 output selector on front panel
Each zone output with volume +, volume- and mono control on front panel
3 x Mic/line inputs, 1 x RCA line input, 1 x RCA EMC input and 1 x mute input
Mic/line inputs1-3 of Combo type with switchable +48V phantom power
With emergency remote mute input
Input priority level from high to low: Mute, EMC, Mic1 and remote paging mic to others inputs.
Each amplifier support 8 units 2 zone remote microphones PA-2500RM through CAT6 cable
Each amplifier support 2 units 2 zone remote control panels PA-2500SV through CAT6 cable
With short-circuit, clip, overload and high temp protection

Specification:

Model	PA-2120MW	PA-2240MW	PA-2350MW	PA-2500MW
Description	Wi-Fi Internet Streaming 2 Zone Matrix Mixer Amplifier with USB/SD/FM/Bluetooth
Rated Power Output	2×120W	2×240W	2×350W	2×500W
Speaker Outputs	2 zone separated speaker output of 100V & 8-16Ω
Connector	Mic/line1-3: 2.5mV, balanced COMBO XLR input with +48V phantom power, Line1 & EMC input: 250mV; RCA type, Mute: Closed circuit= remote mute, open circuit=normal working, Two RJ45 ports for remote microphone & remote-control panel
Input	MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
Line Out	0.775(0dBV)
Frequency Response	60Hz-15kHz(±3dB)
S/N Ratio	Line ≥ 85dB, Mic≥ 72dB
THD	Less than 0.5%
Protection	short-circuit, clip, overload and high temp protection
Power Consumption	300W	600W	850W	1200W
Power Supply	230V AC; 50-60Hz
Dimension	484×405×88mm
Weight	6.6kg	9.6kg	11.9kg	13.7kg

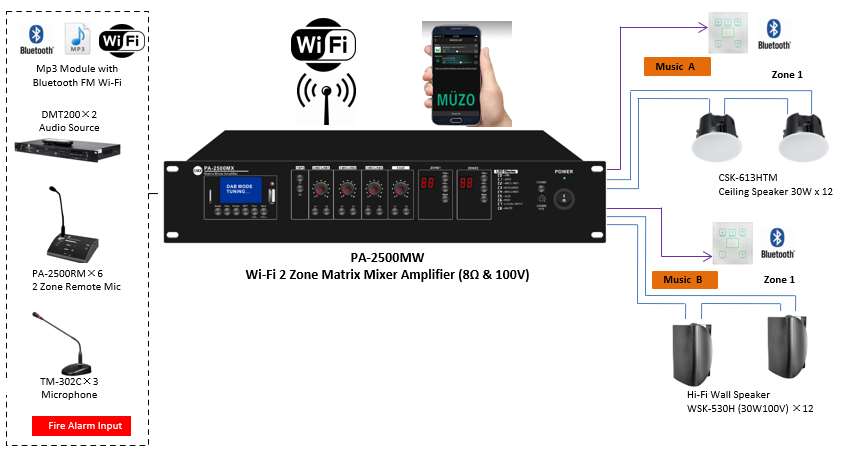

Diagram:

Wi-Fi Music APP Player:
