WSK-640DS WSK-640DSW 6.5" 2-Way Indoor Outdoor Wall Mount Speaker
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Outdoor Speaker Waterproof Speaker Weatherproof Speaker IP66 Waterproof ABS Speaker 2-Way Speakers Fashion Speaker Wall Mount Speaker Box SpeakerWSK-640DS & WSK-640DSW is 8 inch 2-way all weatherproof loudspeaker with 100V, 70V & 8 Ohm power tapping, 40W/20W/10W/5W/2.5W/8 Ohm, ideal for indoor outdoor all music & paging applications, IP66 waterproof rate, with 360 degree rotatable bracket for vertical and horizontal dispersion angle adjustment.
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Outdoor Speaker Waterproof Speaker Weatherproof Speaker IP66 Waterproof ABS Speaker 2-Way Speakers Fashion Speaker Wall Mount Speaker Box Speaker
Tender Specification:
The all weatherproof wall mount speaker shall be designed with 6.5”weatherproof woofer and 1” silk tweeter 2-way speaker system. The rated power output at 40 watts and max power output at 80 watts. The music loudspeakers shall support 70V/100V transformer power tapping of 40W, 20W, 10W, 5W & 2.5W or as a low impedance 8 Ohm version.The wall mount speaker shall be IP66 waterproof rate, which is made of high quality ABS enclosure, , stainless metal grille & stainless mounting bracket. The wall mount loudspeaker shall support wide range dispersion angle up to vertical: 180° and horizontal: 180° (1KHz). The loudspeaker is designed of high SPL up to 94±3dB and Max 112dB (1m). The Wall mount loudspeaker support all music and paging system because of its wide range frequency response of 65-20KHz. The supplied mount bracket shall support 360° rotatable bracket for horizontal and vertical installation angle adjustment. The wall weatherproof wall mount speaker comes with black & white two color option.
Feature:
- All weather loudspeakers for music applications and projects.
- Ideal for indoor outdoor BGM and paging system
- IP66 waterproof finish for all extreme weather applications
- 6.5' weatherproof woofer and 1” silk tweeter 2-way speaker system
- ABS enclosure, stainless metal grille & stainless mounting bracket
- Power output 40-20-10-5-2.5W & 8Ω
- 70V/100V speaker with power tapping or as a low impedance 8 Ohm speaker
- Waterproof cable wiring cover for IP66 secure weatherproof protection
- Ultra- reliable, fail safe loudspeaker even at high power loads
- Supplied with 360° rotatable bracket for horizontal and vertical installation angle adjustment
| Model | WSK-640DS | WSK-640DSW |
| Description | Indoor Outdoor Wall Mount Speaker | |
| Rated Power Output | 40W and Max. 80W | |
| Power Taps | 40-20-10-5-2.5W & 8Ω | |
| Line Input | 100V or 70V & 8Ω | |
| Frequency Response | 65-20KHz | |
| SPL(@1W/m) | 94±3dB and Max 112dB (1m) | |
| IP Rate | IP66 | |
| Speaker Unit | 6.5' weatherproof woofer and 1” silk tweeter 2-way speaker system | |
| Dispersion | Vertical: 180° and Horizontal: 180° (1KHz) | |

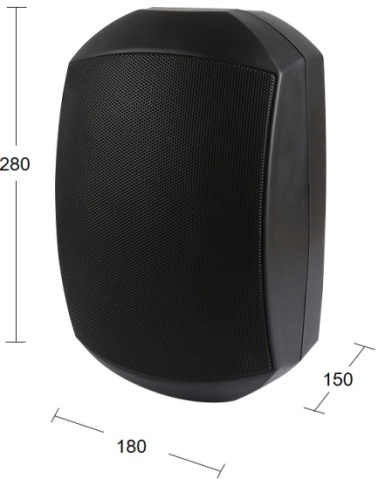

| Dimension | 280×150×180mm | |
| Material | ABS enclosure, stainless metal grille & stainless mounting bracket | |
| Color | Black | White |
| Mounting Way | 360° rotatable bracket for horizontal and vertical installation angle adjustment | |
| Net Weight | 3.5kg | |

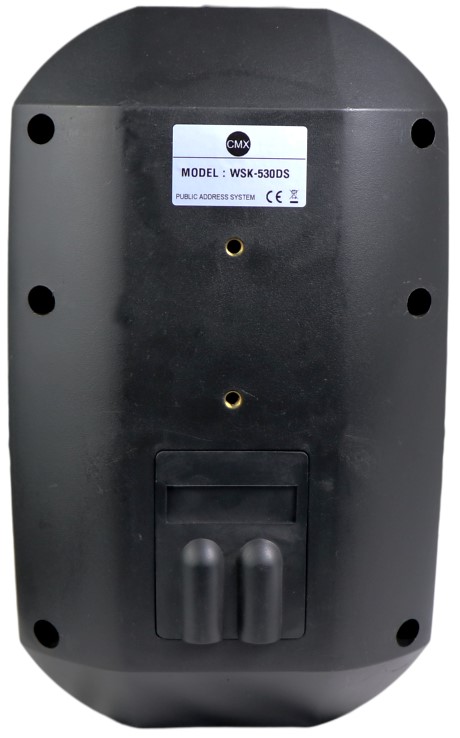

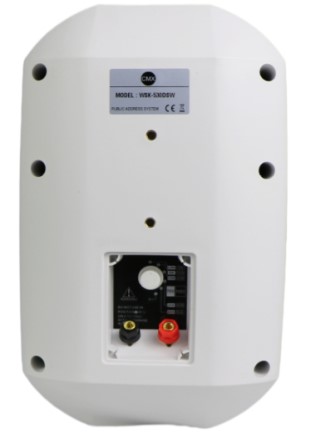

Side View:

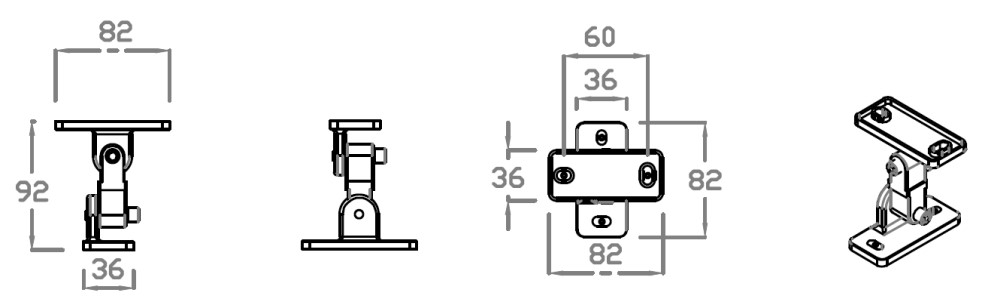

Mounting Bracket

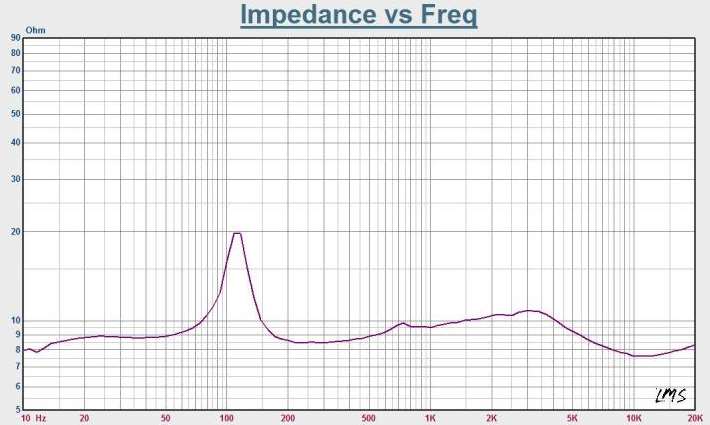

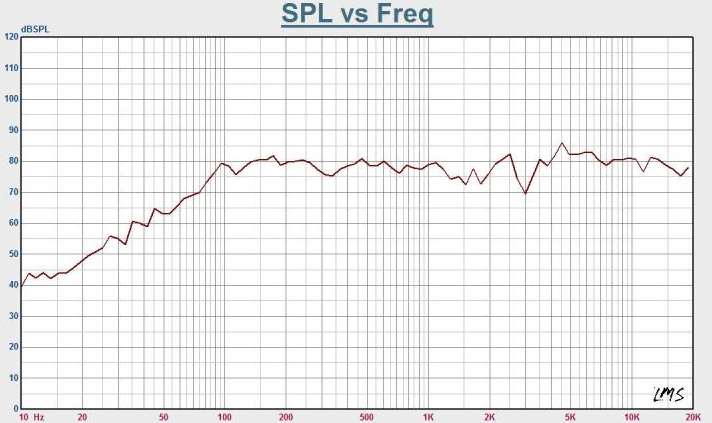

SPL & Impedance VS Freq Diagrams:
