VE-C6F VE-C30F VE-C60F VE-C120F 6W-120W 100V Volume Controller with Relay
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume Controller Volume Controller with RelayVE-C6F VE-C30F VE-C60F VE-C120F 6W-120W 100V Volume Controller with Relay range volume controls is volume attenuation for speaker loudness, wherever public address and background music speaker volume control is needed.
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume Controller Volume Controller with Relay
Features:
- PA (Public address) system use volume control with relay.
- The volume controller is used to adjust the loudspeaker output in the room.
- The volume controller is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its outputs is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.
- The volume controller with 24V relay operation: the relay from the amplifier or PA system will be input to this volume controller to override the output level to maximum when there is fire alarm or other emergency situation, by this way, some conference room even lower the volume or off the level during meeting even could hear the evacuation message during emergency.
- High level white UV-protected ABS material to integrate together with the white wall and architecture design.
- Built-in transformer to control the PA 100V line loudspeakers.
- With 10 levels of volume attenuator and one position of off.
- Surface wall mount or in-wall mounting box shall be purchased separated.
Specification:
Model | VE-C6F | VE-C30F | VE-C60F | VE-C120F |
Description | 100V Volume Controller with Relay | |||
Rated Output | 6W | 30W | 60W | 120W |
24V Relay | With 24V relay | |||
Line Input | 100V or 70V | |||
Volume Step | 10 steps plus off | |||
Attenuation Per Step | 3dB | |||
Total Attenuation | 33dB | |||
Material | UV-protected ABS in white | |||
Mounting Way | Surface mount or in-wall mount | |||

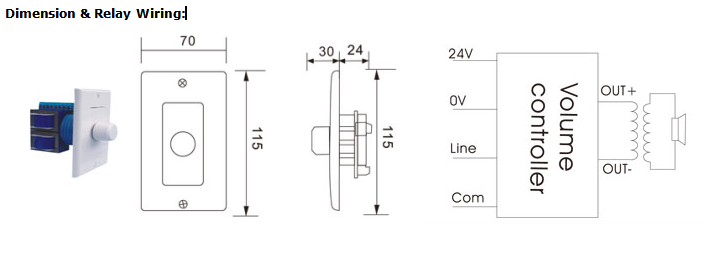

Dimension | 115(W)×70(D)×54(H)mm | |||
