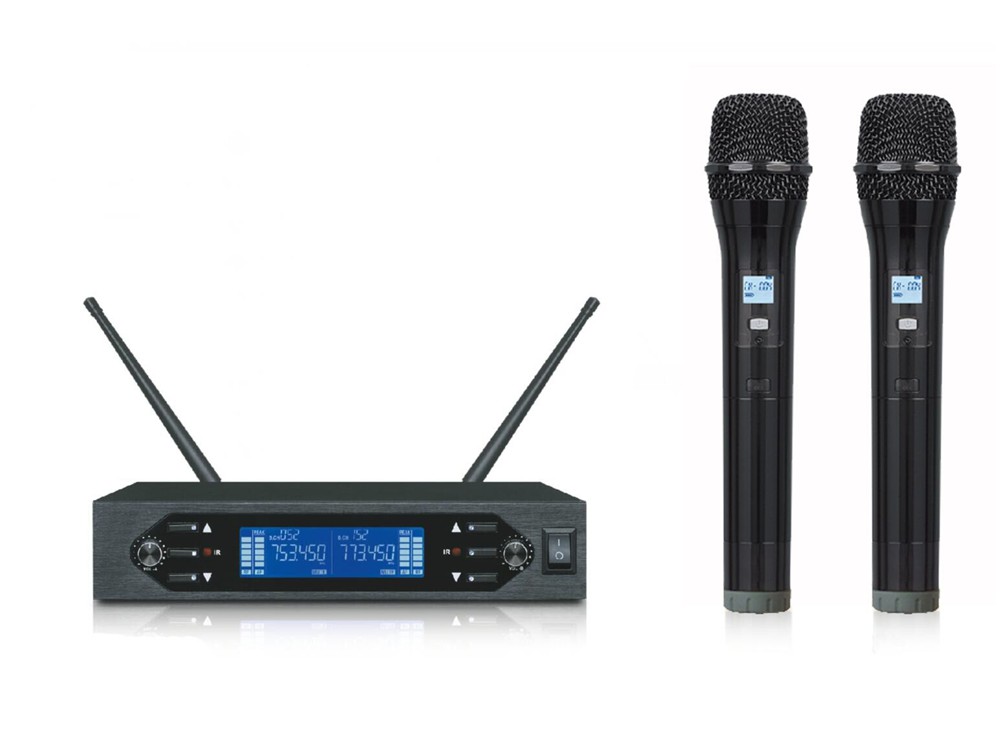

UHF Wireless Microphone System WM-U200B
WM-U200B is adjustable frequency UHF wireless microphone set with one receiver and two handheld or lavaliere microphone as options.
Feature：
- State of art design UHF wireless microphone system of tabletop design in 1U height.
- Ideal for speech, announcement, meeting system or religious gathering and life performance use.
- Suitable for hotel, factory, school, restaurant, train station, church, mosque sound system use.
- Includes dual channel receiver with LCD.
- Two microphones working together without any interference.
- Supplied with two wireless microphones (Handheld & Bodypack) of fixed frequency.
- Each channel of 100 adjustable frequencies total of 200.
- Support more than 500 meters operation distance.
- Microphone is powered by DC3V, battery working time more than 10 hours and standby 30 hours.
- Strong damage proof design dynamic microphone with high sensitivity.
- Option: Two Channel Receiver + Two Handheld Mic
Transmitter:
- Frequency range: UHF 520-930MHz
- Frequency stability: 10ppm
- Transmit power: 10mV
- Launch distance: 100 (m)
- Harmonic suppression: 65db above
- Modulation method: FM
- The maximum modulation: 75K
- Working voltage: 3V
- Working current: 120mA
- Function display mode: LCD
Receiver:
- Frequency: 520-930MHZ
- Frequency stability: 10ppm
- Sensitivity: 13dbuv
- Linkage suppression: 65db
- Image frequency suppression: 75db
- Audio output: 200mV
- Output impedance: XLR interface: 200 Europe 1/4 connector: 1K Europe
- Signal to noise ratio: 100dB
- Distortion: <0.1%
- Frequency response: 50Hz-15 kHz
- Function display mode: LCD
- Power Supply: 12V DC
