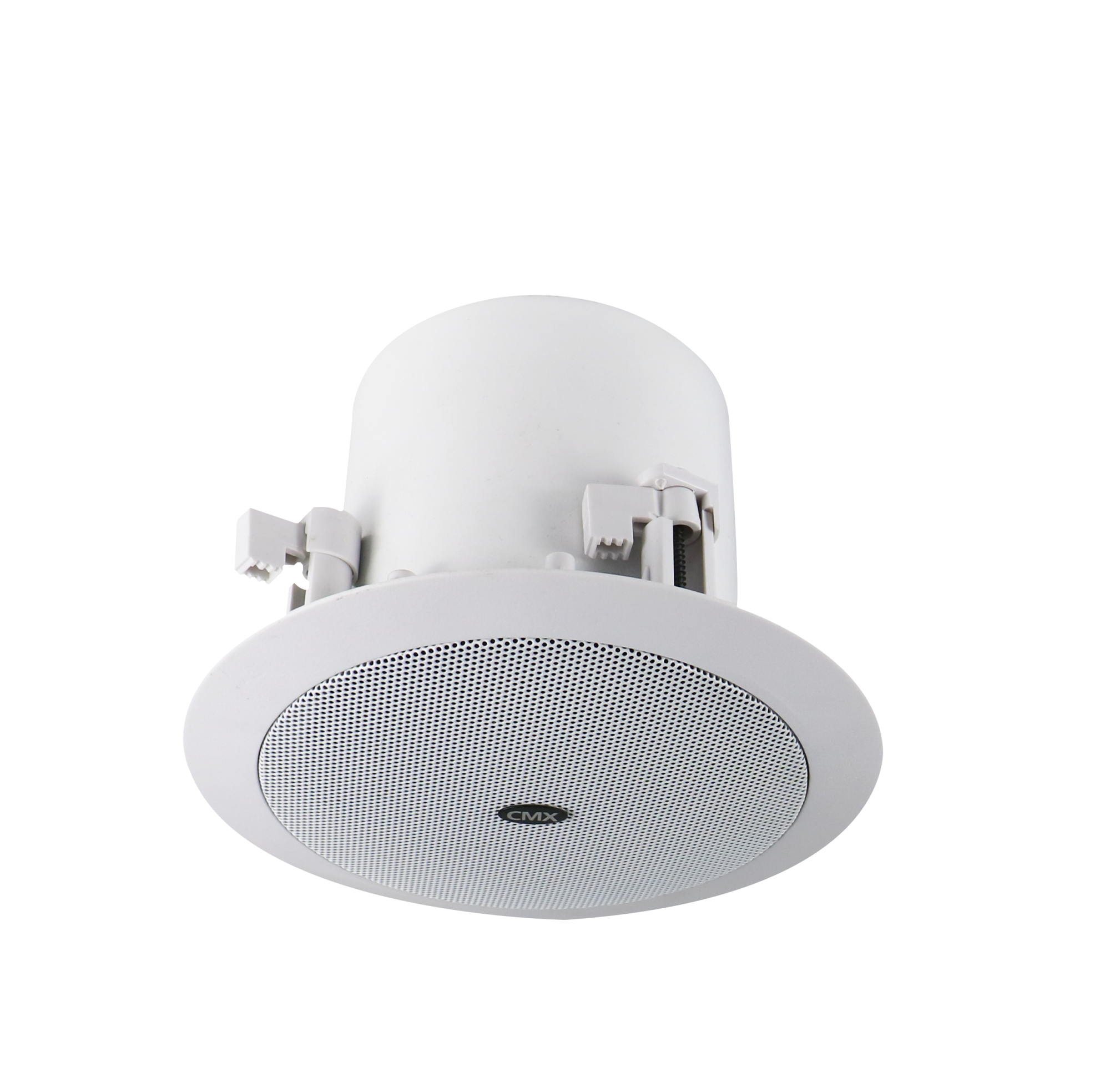

SIP-99501 SIP Ceiling speaker
IP Speaker IP Audio SolutionsThe SIP Ceiling Speaker SIP-99501 is one IP based active speaker, built-in ip decoder, amplifier and indoor ceiling speaker all in one solution.SIP-99501 provides high intelligible speech for remote speaking in public notification applications. In emergency, SIP-99501 enables an operator to remotely address people and deliver pre-recorded alarm messages which can be manually or automatically triggered via LAN.
IP Speaker IP Audio Solutions
Product introduce
The SIP Ceiling Speaker SIP-99501 is one IP based active speaker, built-in ip decoder, amplifier and indoor ceiling speaker all in one solution.SIP-99501 provides high intelligible speech for remote speaking in public notification applications. In emergency, SIP-99501 enables an operator to remotely address people and deliver pre-recorded alarm messages which can be manually or automatically triggered via LAN.
Feature
- Coaxial tweeter design, clear sound quality, rich bass, and bright mid-range;
- Support the use of network systems with standard SIP protocol, without the need for manufacturer specific software;
- Equipped with online upgrade function, the device can be remotely operated through the platform;
- Built in POE power switch access module, compatible with IEEE 802.3af and IEEE 802.3at，
- Built in network hardware audio decoding module, support SIP TCP/IP、UDP、IGMP (multicast) protocol;
- Built in 20W output and high-quality speakers, with CD level sound quality;
- Equipped with an LED indicator light to indicate different working states;
- Support background music, broadcast paging, fire alarm grouping and zoning broadcasting applications;
- Support 100 levels of custom audio priority mute control;
- Support SIP intercom;
- Support mobile WIFI on-demand and wireless remote control on-demand;
- Support real-time and scheduled file broadcasting, text broadcasting
- Support server unified authorization operation management function, unified configuration management of users and passwords;
- Support DHCP, TCP/IP,compatible with routers, switches, bridge gateways, and mutual Networking, 4G, 5G, and any other network structure;
- Support remote management and maintenance, software upgrades, control, etc;
- Digital networked products that support cloud deployment, easy scalability, and are not affected by geographical location Restrictions, no need to add data center management equipment;
- Adopting the design concept of shared network without line construction, the installation is simple; Optional DC power supply or POE power supply (compliant with IEEE802.3at standard);
- Support a reset function and can restore the factory default settings.
Technical Parameters
| Model | SIP-99501 |
| Description | SIP Ceiling Speaker |
| RMS Power (DC power supply) | 20W @8Ω |
| RMS Power (POE power supply) | 15W @8Ω |
| Network Transmission Rate | 10/100Mbps adaptive, Ethernet protocol, RJ-45 interface |
| Protocol | ARP、UDP、TCP/IP、SIP、ICMP、IGMP (Group Broadcast) |
| Audio Format | MP3、WMA、WAV、APE、FLAC、OGG |
| Audio Bit Rate | 8Kbps ~ 320Kbps adaptive |
| Sampling Rate | 16K~48K |
| Bit Rate | 8K~512Kbps |
| Sensitivity | 92dB/1W/1M |
| S/N Ratio | ≧75dB（1KHz,0dB） |
| THD | ≦1%（1KHz，-3dB） |
| Frequency Response | 100Hz-15KHz(±3dB) |
| Connector | RJ45 port x1pcs |
| LAN Network Delay | ≤1ms |
| Sound synchronicity | ≤50ms |
| Reset button | Can be restored to factory default Settings |
| Power Input | POE power supply POE 802.3af or POE 802.3at or DC 24V |
| Operation Temp | -10℃～+50℃ |
| Dimension | Ø200×140mm |
| Cutout Size | 168mm |
| Bracket | ABS enclosure, metal grille and metal back box |
| Weight | 1.4kg |
