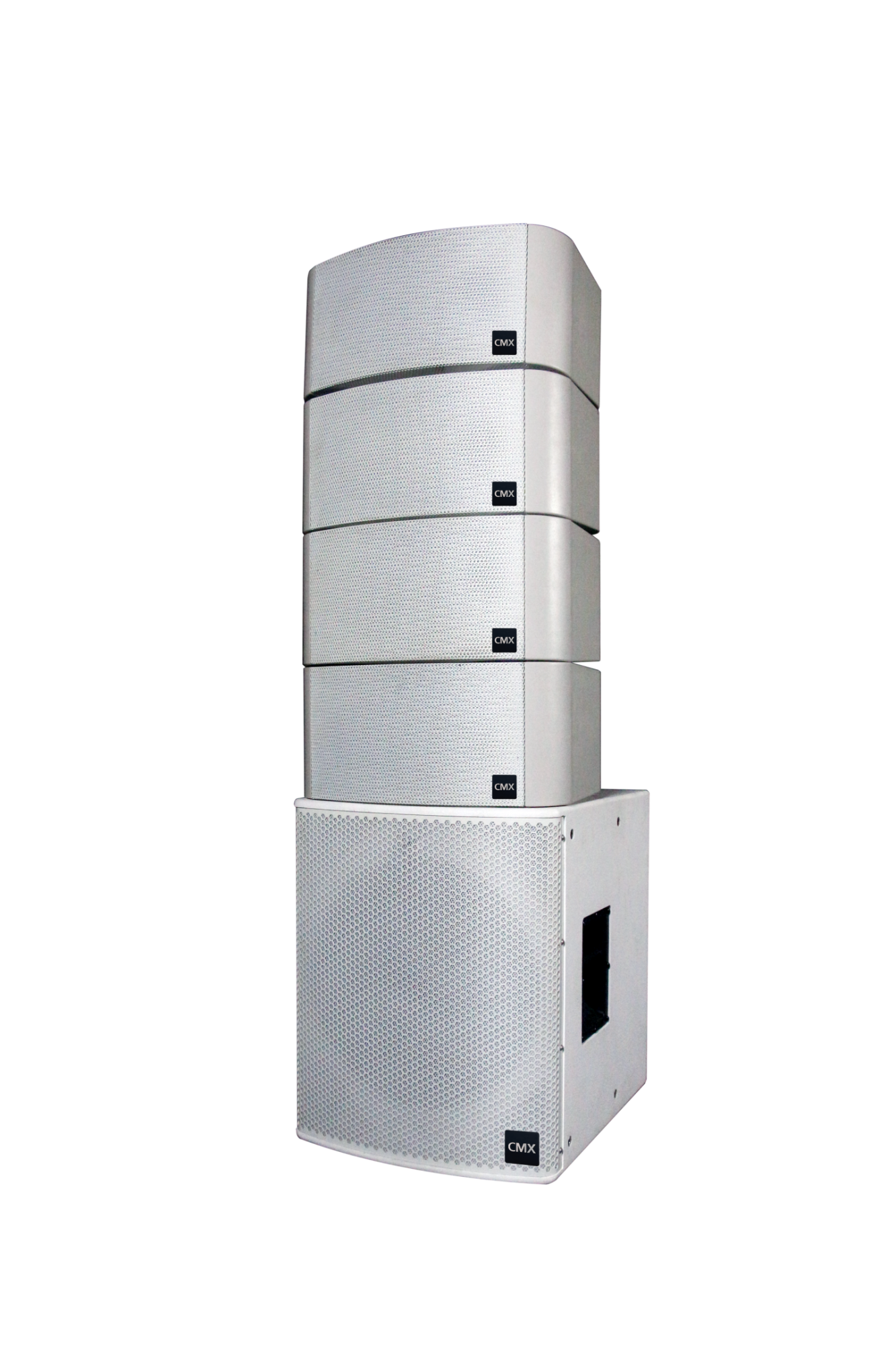

Passive Dual 6.5” Line Array Loudspeakers SA-263 & SA-263B
Column Line Array Active Line Array Powered Line Array Portable Line ArraySA-263 2-way passive line array loudspeakers is an high quality sound reinforcement system designed for nightclubs,theatres, cinemas and conference halls. The system comprises of a subwoofer and double 6.5" LF woofer and one 1" exit HF compressin driver on a dendritic device that shall be driven by the external power amplifiers.
Column Line Array Active Line Array Powered Line Array Portable Line Array
Feature:
- Compact 2-way passive line array loudspeaker system
- 1x 15” high performance subwoofer of low frequency SA-263B
- 2 x 6.5” & 1” Titanium tweeter line array speakers
- High output, full range speakers for excellent sound reinforcement
- High SPL up to 124dB Max for all fixed installation sound system
- Drivers constructed with a unique thin foam surround to reduce distortion
- Ribbon tweeters give a wide frequency response of up to 20k Hz
- Adjustable rigging angle for the line array speakers
- Vertical dispersion of 15° and horizontal of 100°
- Combined up to 4-32 units for large venue applications
- Installation mounting bracket and accessories are included
Description:
SA-263 2-way passive line array loudspeakers is an high quality sound reinforcement system designed for nightclubs,theatres, cinemas and conference halls. The system comprises of a subwoofer and double 6.5' LF woofer and one 1' exit HF compressin driver on a dendritic device that shall be driven by the external power amplifiers. it is scalable from 4 to 32 modules. The 1x 15” subwoofer is of powerful bass effect, which is rated power output of 500 watts and peak of 1000 watt, the dual 6.5” line array module speaker is of 2-way loudspeaker system, each module of 300 watts power output and continuous power output of 600 watt and peak of 600 watt. The installation mounting bracket and accessories are included.
Specifications:
Line Array Modular Loudspeaker SA-263 | |
| Speaker | LF: 2×6.5', HF: 1” |
| RMS Power Output | 300 Watt |
| Peak Output | 600 Watt |
| Impedance | 4 Ohm |
| Frequency Response | 50Hz-20KHz (±3dB) 1W/1m |
| Sensitivity | 94dB 1W/1m |
| MAX SPL | 124dB |
| Vertical Dispersion | 15° |
| Horizontal Dispersion | 100° |
| Material | Polyurea coating |
| Connector | 2 x Neutrik speakon NL4 |
| Dimension | (W)456mmx(H)215mmx(D)340mm |
| Weight | 16kg |
Subwoofer SA-263B | |
| Speaker | 1x 15” |
| RMS Power Output | 500 Watt |
| Peak Output | 1000 Watt |
| Impedance | 8 Ohm |
| Frequency Response | 45Hz-120 Hz (±3dB) 1W/1m |
| Sensitivity | 98dB 1W/1m |
| MAX SPL | 129dB |
| Material | Polyurea coating |
| Connector | 2 x Neutrik speakon NL4 |
| Dimension | (W)472x (H)690 x (D)496mm |
| Weight | 36kg |
| Mounting bracket | included |
| Line Array Module | 4-32units |
