PJSK-20PSEN EN 54-24 Sound Projector
Installation Loudspeakers 100 Volt Speakers Sound Projectors Projection Speakers EN54 Certified Speakers EN54-24 Loudspeakers Paging SpeakersEN 54-24 Certified Sound Projector Speaker PJSK-20PSEN is one outdoor speaker for EN 54-24: 2008 Fire detection and fire alarm systems Part 24: Components of voice alarm systems, 20W, 100V & 8 Ohm, buillt-in ceramic connector, thermal fuse and fire resistant cable, IP66 fully outdoor BGM & Paging use loudspeakers.
Installation Loudspeakers 100 Volt Speakers Sound Projectors Projection Speakers EN54 Certified Speakers EN54-24 Loudspeakers Paging Speakers
Feature:
- Compliant with the EN54-24 standards
- Public address (PA) system music & paging sound projector with transformer
- Public Address outdoor sound projector for BGM & paging system
- Ideal for outdoor music and speech use in factory, school, office, hotel and airport
- 6.5” PP dual cone waterproof woofer
- Rated power output 5W-10W-20W at 100V& 8 Ohm
- Waterproof level of IP66
- Built-in ceramic connector, 95℃ fire-resistant cable and thermal fuse
- 2 waterproof glands for speaker cable connection
- UV protected ABS enclosure and stainless metal bracket in white
- Quick installation by supplied stainless mounting bracket
Specification:
Model | PJSK-20PSEN |
Description | EN54-24 Sound Projector |
Rated Power Output | 5W-10W-20W at 100V& 8 Ohm |
Speaker | 6.5” PP full range waterproof woofer |
Line Input | 100V or 70V& 8 Ohm |
Frequency Response | 110-18KHz |
SPL(@1W/m) | 92dB and Max 95dB |
IP Rate | IP66 |
Connector | 2 waterproof glands for speaker cable connection |

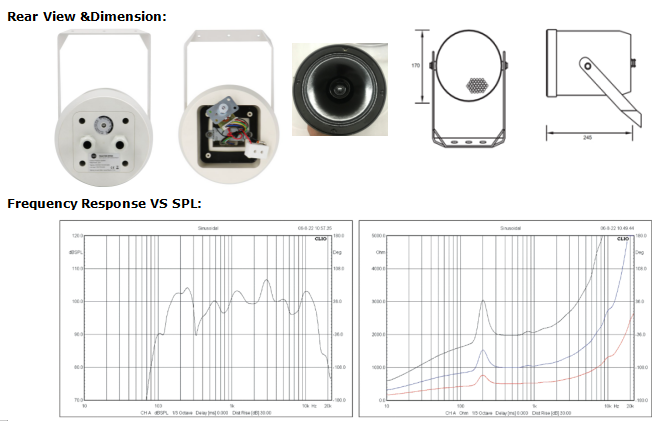

Dimension | Φ170×245mm |
Weight | 1.9kg |
Material | UV protected ABS enclosure and stainless metal bracket in white |
Mounting Way | Quick installation by supplied stainless mounting bracket |
