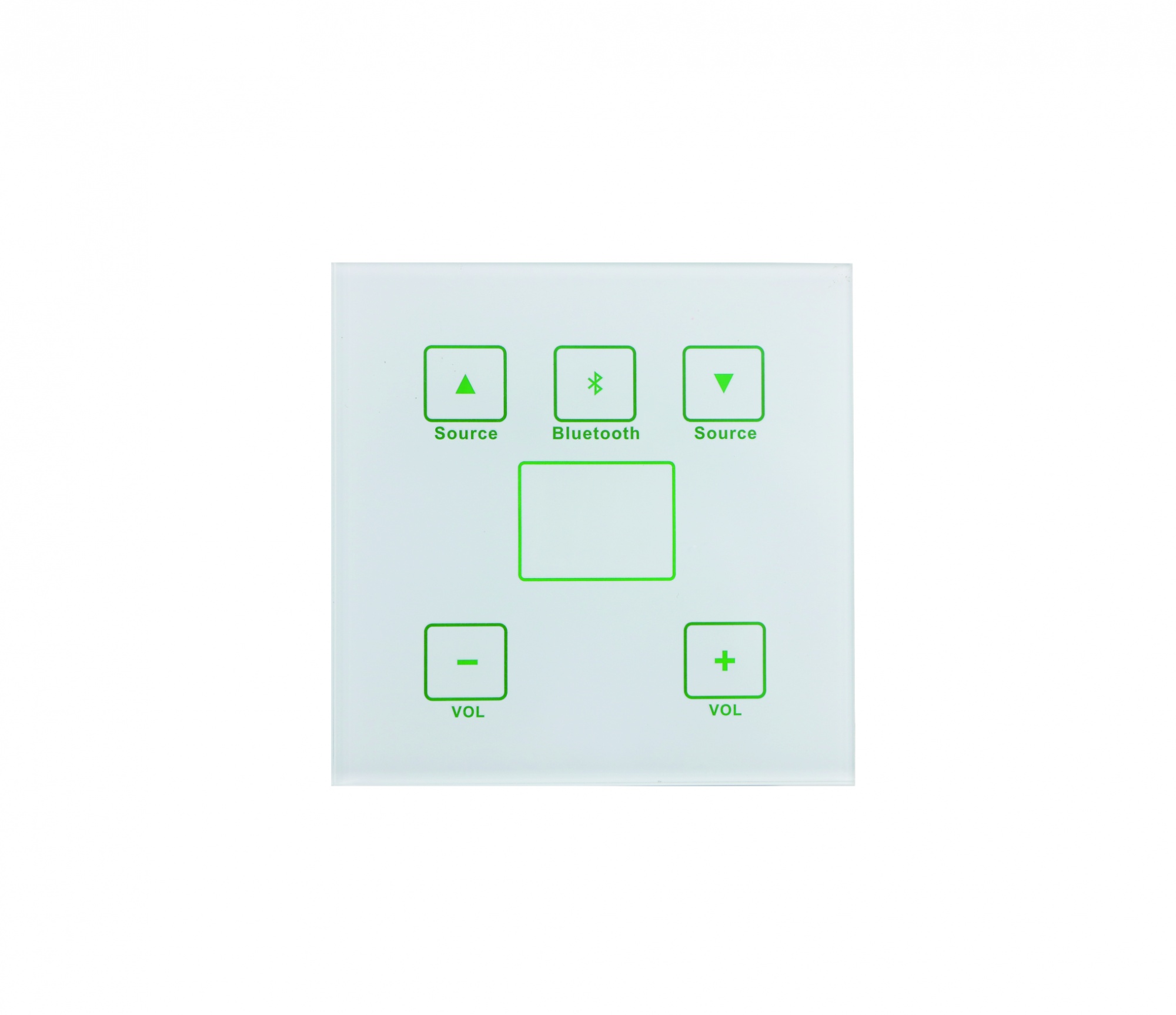

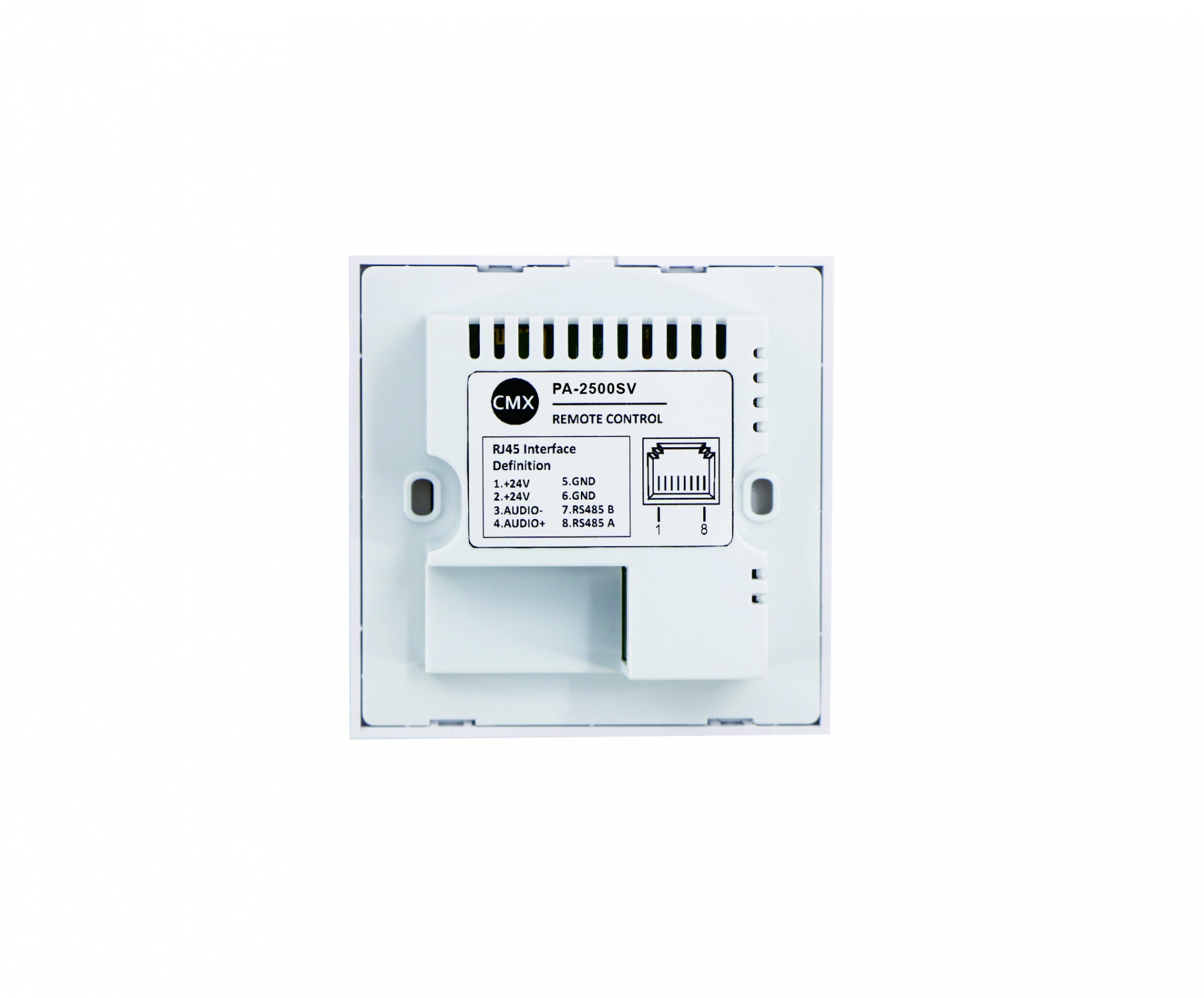

PA-2500SV Remote Control Panel
PA-2500SV is a remote in-wall controller to work exclusively with PA-2500MX series amplifier. The in-wall controller or remote control panel enable to adjust its zone output volume up and down, also it can select all inputs of the amplifier to assign it output to its zone. It is remote controller for multiple zone multiple background music system.
Description:
PA-2500SV is a remote in-wall controller to work exclusively with PA-2500MX series amplifier. The in-wall controller or remote control panel enable to adjust its zone output volume up and down, also it can select all inputs of the amplifier to assign it output to its zone. It is remote controller for multiple zone multiple background music system.
Feature:
- Communication through CAT6 cable up to 999 m
- Direct power supply from matrix controller
- Audio sources selection and volume control
- 2 units capacity for each matrix controller
- PA-2500SV Bluetooth Name: BK3254, Password: no password
Specification:
Model | PA-2500SV |
| Description | Remote Control Panel |
| Compatible Model | PA-2120MX, PA-2240MX, PA-2350MX,PA-2500MW |
| Power Consumption | 3W |
| Zone Capacity | 2 zones |
| System Capacity | 2 units in total |
| Frequency Response | 20hz-20khz |
| THD | ＜1% at RMS,1KHz |
| S/N Ratio | >70dB |
| Operating Temp | -20℃ to +70℃ |
| Power Supply | Direct from the amplifier, 24V DC, ±20% |
| Humidity | <95% no condensation |
| Dimension | 120.5x85x36.5mm |
| Weight | 0.12kg |
