PA-2120MX PA-2240MX PA-2350MX PA-2500MX 2 Zone Mixer Amplifier with USB/SD/FM/Bluetooth
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Matrix Amplifier Zone PagingPA-2500MX is a 2 zone mixer amplifier or 2 channel stereo mixer amplifier, which support 100V & 8 Ohm two outputs at the same time, 3 mic, 1 aux, RMS 120W+120W to 500W+500W by two channels. With remote paging microphone and remote control PA-2500SV as option to add with system.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Matrix Amplifier Zone Paging
Description:

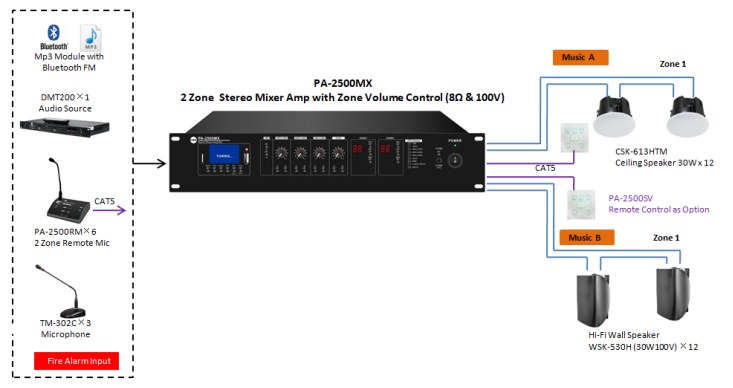

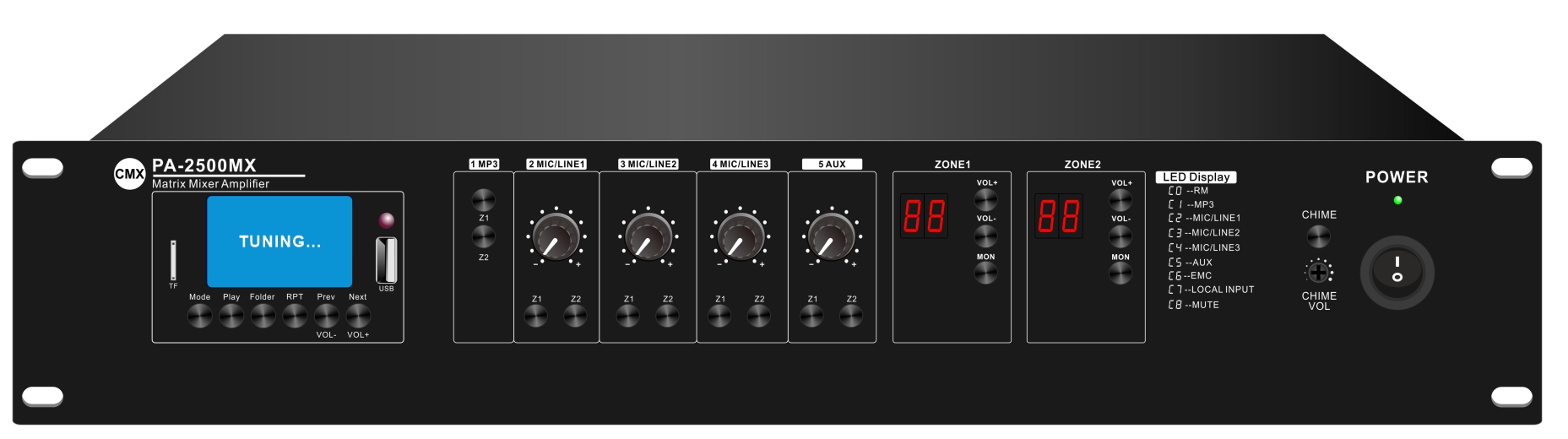

The PA-2500MX series 2 zone mixer amplifier is designed for 19” rack mount installation or tabletop use both application, it is ideal for both professional sound system and commercial audio solutions, since it is designed with 2 zone speaker outputs support 100V & 8-16Ω. The PA-2500MX series mixer amplifier integrates two 100V & 8 Ω amplifier into one unit, so it could be used as stereo mixer amplifier or 2 zone commercial mixer amplifier. The mixer amplifier is built-in media player of USB/SD/FM/ & Bluetooth, with 3 mic inputs, line input, EMC input, 6 units 2 zone remote paging mic PA-2500RM and 6 units remote panel PA-2500SV and one mute input. 3 Mic/line switchable inputs, 1 aux input and an integral USB/SD/FM audio player with Bluetooth receiver can be matrix switched to any of the 2 zones independently. Mic1 channel with VOX highest priority and each microphone 1-3 inputs have switchable +48V phantom power. A master chime with volume can be used for paging calls and Alerts. The 2 zone mixer amplifier is designed for multi-room commercial audio systems requiring different audio sources & multiple paging microphones, additionally, up to 8 units remote microphones and 2 units 2 zone remote control panes could be connected to this 2 zone mixer amplifier through CAT6 cable , which could be installed in two separate rooms to select different audio sources locally and adjust the local loudspeaker loudness and input Bluetooth to its own room. The mute input could integrate with fire alarm system or other third party system. The amplifier is designed with complete protection includes short-circuit, clip, overload and high temp.
Feature:
- Desktop or 19” rack mount 2 zone public address 2 zone mixer amplifier
- 2 Zone Mixer Amplifier built-in medial player with USB/SD/FM/ & Bluetooth
- Rate power output at 2×120W, 2×240W, 2×350W to 2×500W
- 2 zone separated speaker output of 100V & 8-16Ω
- Each input with zone 1 or zone 2 output selector on front panel
- Each zone output with volume +, volume- and mono control on front panel
- 3 x Mic/line inputs, 1 x RCA line input, 1 x RCA EMC input and 1 x mute input
- Mic/line inputs1-3 of Combo type with switchable +48V phantom power
- With emergency remote mute input
- Input priority level from high to low: Mute, EMC, Mic1 and remote paging mic to others inputs.

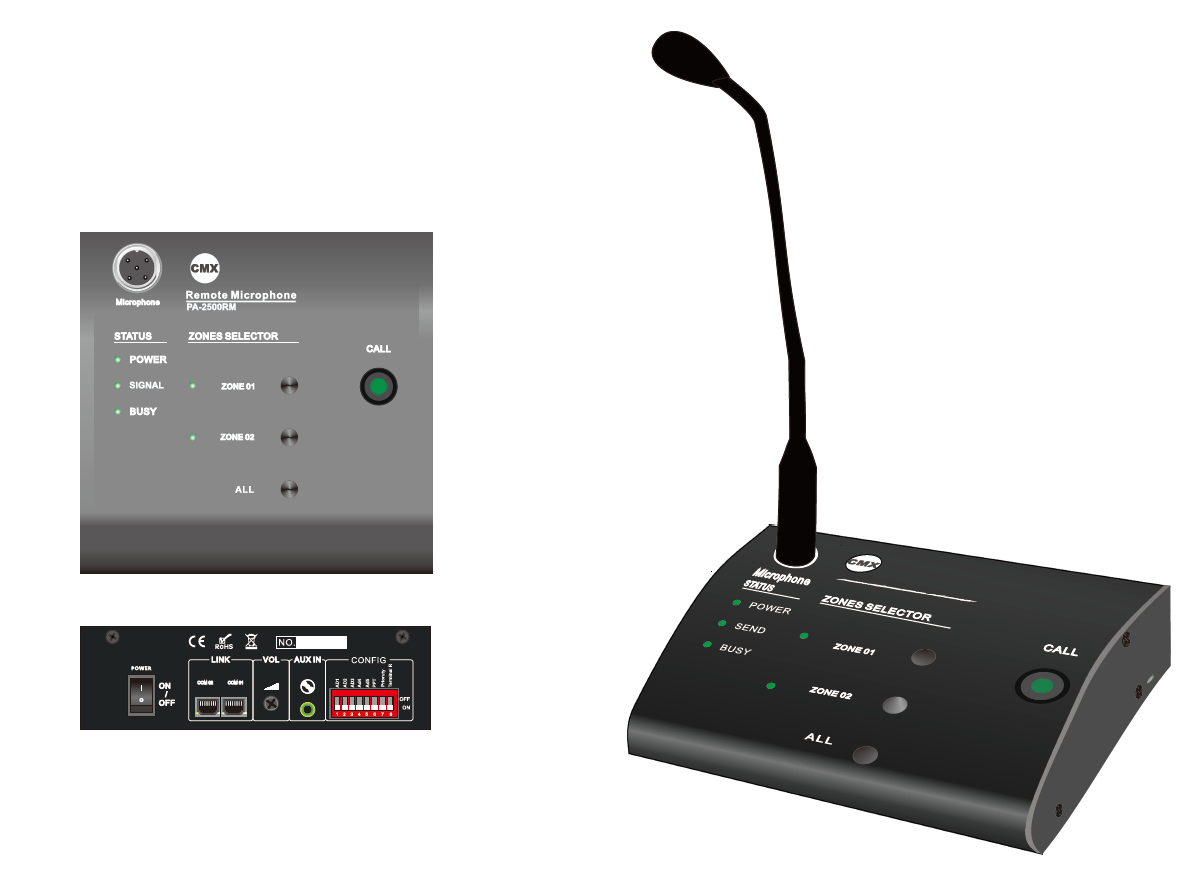

- Each amplifier support 8 units 2 zone remote microphones PA-2500RM through CAT6 cable
- Each amplifier support 2 units 2 zone remote control panels PA-2500SV through CAT6 cable
- With short-circuit, clip, overload and high temp protection
Specification:
Model | PA-2120MX | PA-2240MX | PA-2350MX | PA-2500MX |
Description | 2 Zone Mixer Amplifier with USB/SD/FM/Bluetooth | |||
Rated Power Output | 2×120W | 2×240W | 2×350W | 2×500W |
Speaker Outputs | 2 zone separated speaker output of 100V & 8-16Ω | |||
Connector | Mic/line1-3: 2.5mV, balanced COMBO XLR input with +48V phantom power, Line1 & EMC input: 250mV; RCA type, Mute: Closed circuit= remote mute, open circuit=normal working, Two RJ45 ports for remote microphone & remote control panel | |||
Input | MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA | |||
Line Out | 0.775(0dBV) | |||
Frequency Response | 60Hz-15kHz(±3dB) | |||
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | |||
THD | Less than 0.5% | |||
Protection | short-circuit, clip, overload and high temp protection | |||
Power Consumption | 300W | 600W | 850W | 1200W |
Power Supply | 230V AC; 50-60Hz | |||
Dimension | 484×405×88mm | |||
Weight | 6.6kg | 9.6kg | 11.9kg | 13.7kg |
