PA-8000 Audio Matrix Processor
2026-05-30 09:25:03
Click：
“
PA-8000 is the top choice for professional conference sound reinforcement, delivering clear, stable audio for diverse meeting scenarios.
”
PA-8000 is the top choice for professional conference sound reinforcement, delivering clear, stable audio for diverse meeting scenarios.
Key Features:
1. Low Latency & Smooth Transmission
It adopts PTP v2 clock synchronization to deliver millisecond low latency and support cross-segment audio transmission.
2. Full-Scenario Flexible Adaptation
Equipped with a 16×16 digital matrix, it provides 8×8 analog and 8×8 AES67 channels with 48V phantom power per input.
3. Powerful DSP Processing
It integrates powerful DSP functions such as EQ, limiter, FIR, auto-mixing and feedback suppression.
4. Stable Network Transmission
It uses TCP/IP protocol with dual network ports, supporting daisy-chain networking for stable 100M bandwidth transmission.
5. High-Definition Lossless Audio
It supports 24bit/48kHz HD audio transmission with noise reduction and echo cancellation for pure sound quality.

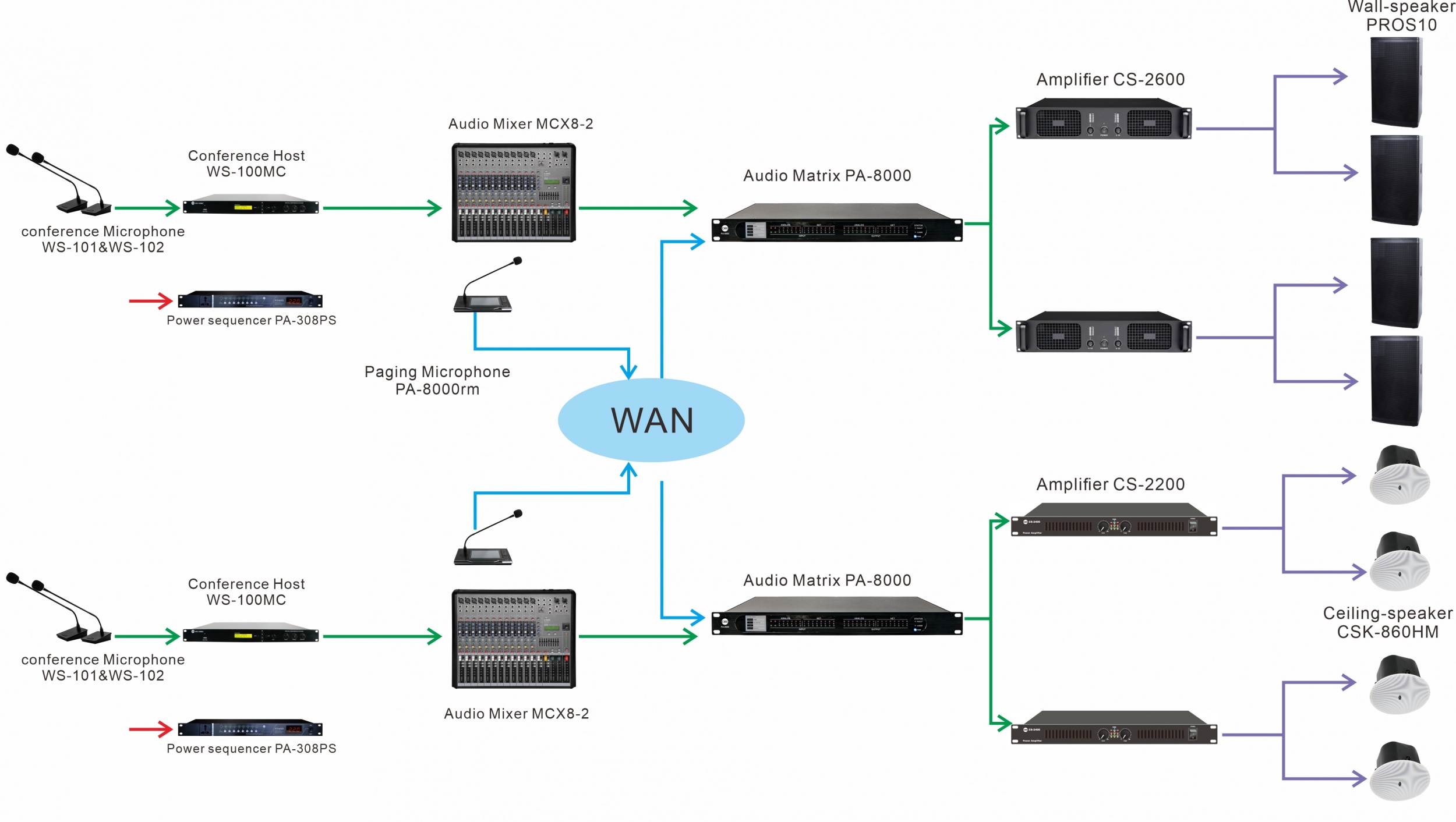

Model | Feature | QTY |
| DS-2500 | Amplifier | 4 |
| CSK-860HM | Ceiling-speaker | 16 |
| MCX8-2 | Mixer | 2 |
| PA-8000RM | paging microphone | 2 |
| PA-8000 | audio matrix | 1 |
| WS-100MC | Conference microphone host | 2 |
| WS-101 | Chairman's microphone | 2 |
| WS-102 | Guest microphone | 20 |
| PA-308PS | Power Sequencer | 2 |
