DI-9704NA IP NETWORK AUDIO ADAPTER

Product introduce

The IP Network audio encoder and IP audio decoder DI-9704NA, which can encode various analog audio sources media player & microphone over IP audio streaming and also can decode various IP audio, server audio into analog to Preamplifier or mixer amplifier or active loudspeakers. Via software to program the IP audio encoder’s audio output over IP to single zone, multiple zones or all zones. Simple IP network audio system by IP encoder & IP decoder to compatible with any analog system. The IP audio encoder decoder is compatible with DI-9700 full range all IP decoders, IP amplifiers & IP speakers. The IP audio system could be built up over existing network, non-dedicated network audio system solution over LAN/WAN or Internet. The IP audio encoder & decoder is designed of two aux input, two microphone input, one aux output,two control input and two control output, separate attenuator is designed for each aux input, microphone input & aux output, there is one RJ45 port for network connection. The network audio adapter is of direct visual indication where the stat indicator of IP encoder and IP decoder task activation and power indicator for power on & power off. The network audio adapter is ideal to work with existing analog sound system upgrade into IP audio system by keep using the analog amplifier and loudspeakers, it is also used to connect with audio sources like Mp3,CD, DVD player over IP transmission or decode IP audio into analog to Pre-Amplifier or mixer..

Feature

• 19” rack mount type IP network audio encoder & IP audio decoder

• Encode various analog audio sources media player & microphone over IP audio streaming

• Use it as one IP audio encoder or IP audio decoder, can not use it both simultaneously

• Ideal for upgrade analog PA system into IP based PA system without changing existing analog amplifier & speakers

• Huge system capacity of 6,000 units IP audio encoders

• Via software to program the IP audio encoder’s audio output over IP to single zone, multiple zones or all zones

• Simple IP network audio system by IP encoder & IP decoder to compatible with any analog system

• Compatible with DI-9700 full range all IP decoder, IP amplifiers & IP speakers

• Minimum cable connection by using existing network framework

• Non-dedicated network audio system solution over LAN/WAN or Internet

• Economy network PA system for multiple room and multiple program applications

• Ideal for school, office, restaurant and fitness center IP PA sound system

• Remote volume control and program via remote server software

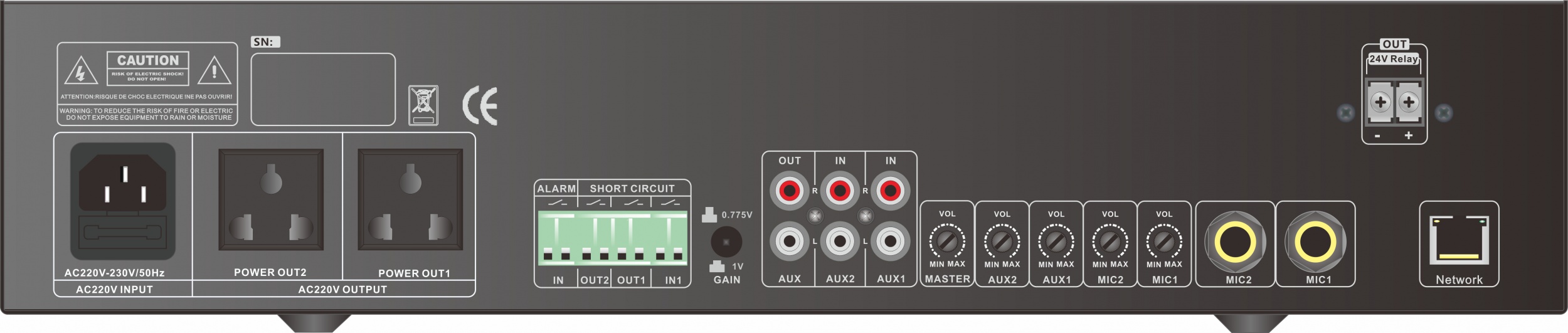

• 2 MIC inputs, 2 AUX inputs, 1 AUX output, with independent volume control for each channel

• MIC1 set as the highest priority. The MIC2, AUX1, and AUX2 are assigned the second priority

• Equipped with 2 control input and 2 control output interfaces for user expansion

• A DC24V/1.5A forced switching power supply interface is provided, capable of connecting 31 volume control panels

• Equipped with two AC220V power output interfaces, the maximum output power can reach 3KW, with each channel

• capable of delivering up to 1500W. The output sockets feature universal interfaces, compatible with various plug types

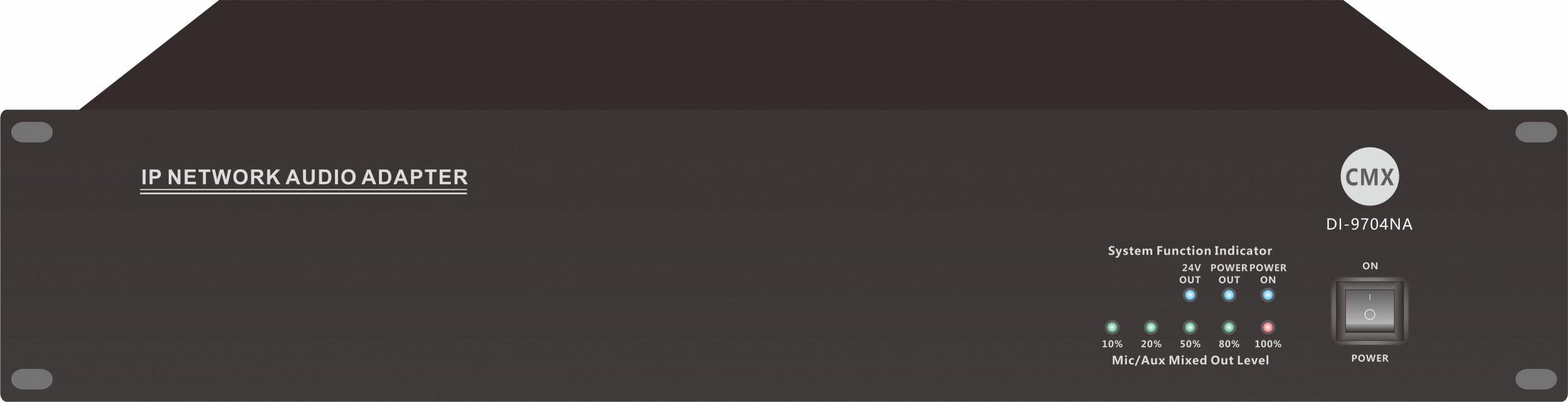

• Stat indicator of IP encoder and IP decoder task activation
