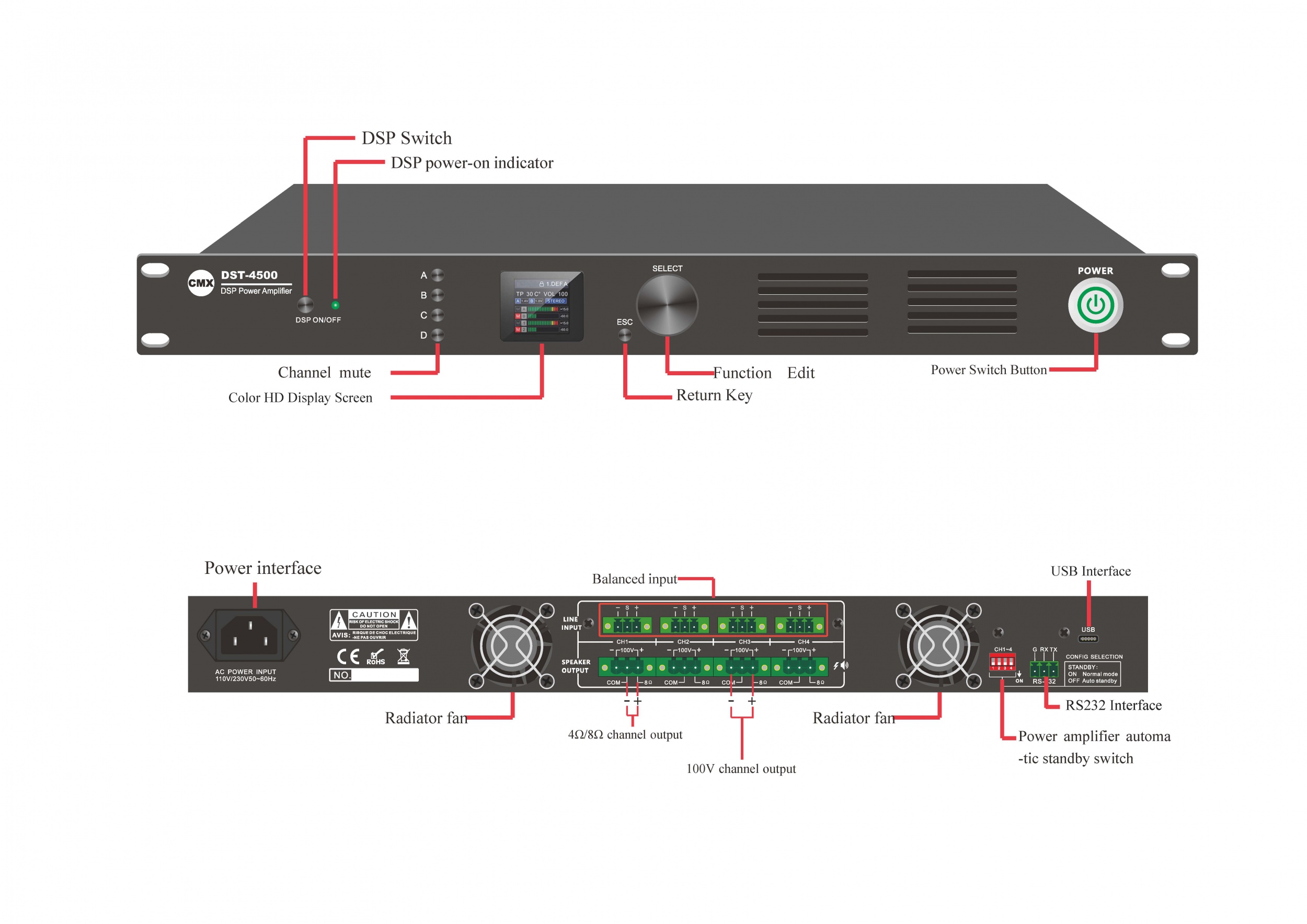

100V Four Channel Power Amplifier with DSP Processor DST-4120/ DST-4240/ DST-4350/ DST-4500

Description

The DST-4500 is 4-channel flexible amplifiers with DSP processor for high performance installation sound system. The 4-channel power amplifiers with DSP processor are rated power output at 4 x 120W to 4 x 500W@ 100V & 4 Ohm which provide an enormous flexibility for different size sound system applications. The DSP processor in combination with remote management software gives user friendly experience with intuitive functions overview for easy configuration. Acoustics can be optimized using noise gate, matrix mixer, PEQ, crossover, delay, compressor,Butterworth, Bessel, Linkwitz6~24. These settings can be custom configured using the English remote software by mini USB port on front panel. Loudspeaker protection is provided by an output power limiter whereby the maximum output power for every channel (in Watt) can be configured. Configuration is made simple with loudspeaker presets and full system configurations which can be selected from a library and uploaded to the amplifier. This ensures the best acoustical performance with a bullet-proof loudspeaker protection. The amplifier built-in 4 Input 4 Outputs high performance DSP processor, which can ensure each input and output could be managed respectively. One type C style USB on rear panel for DSP configure. There are four balanced line inputs by phoenix terminal. The amplifiers support 100V, 4 Ohm & 8 Ohm both commercial audio & professional audio applications, where an output selector could enable this function for dedicated sound system. The installation of this 4-channel amplifier with DSP allows receiving and sending of low latency, high quality audio with multiple Presets. Dante (DT22) or AES67 (AES672) enabled network module are optional to add.

Feature:

• 4-channel amplifier with DSP processor

• Rated power output at 4 x 120W to 4 x 500W@ 100V & 4 Ohm

• Support 100V & 8 Ohm, 4 Ohm speaker output

• Built-in DSP with EQ, gain control, crossover, delay, limiter, high-pass filter & low-cut filter

• 31 bands of input PEQ and 10 bands of output PEQ

• 30 presets of DSP (Digital Signal Processor)

• 4 In 4 Out matrix DSP processor

• One type C style USB port on front panel for DSP configure

• 0dBu/6dBu sensitivity adjustment for each input

• Support RS232 Control

• 1U height 19” rack mount type power amplifier

• Balanced line input by phoenix terminal for two channels

• Complete short circuit, overload, high temp, clip and DC protection

• Dante (DT22) or AES67 (AES672) enabled network module are optional to add


Specification:
