A1 Bluetooth On-wall Stereo Music Amplifier

Description

Wall mounted stereo music amplifier, available in multiple colors and featuring a luxurious exterior design,pure and unadulterated. A wide range of audio sources, including FM, SD, BT, USB, AUX, enable fast and convenient playback. The speaker output is an 8-ohm low impedance output with a frequency response of 20Hz-20kHz. Supports FM radio and 20 channels of radios. Audio formats include MP3, WMA, WAV, FLA,and sound. It supports infrared remote control and has an LED display screen. You can see the time, title,and total number of songs on the screen. You can also control the volume, work status buttons, and controller. Very suitable for offices, restaurants, shops, bedrooms, etc.

Features

• Standard 86 box, luxurious appearance design with LED screen.

• Built-in 2x20W high efficient amplifier @ 8Ω./Built-in 4 x 2 0 W high efficient amplifier @ 8Ω.

• Music source: USB, Micro SD, Bluetooth and FM, 1 AUX input, 1 AUX output.

• Bluetooth: V5.3 ,name: 'BGM-0000 ' .

• Can store 20 radio channels, support automatic and manual search.

• Wide Freq. Response 20Hz~20kHz for excellent music effect.

• Support common music format as MP3, WMA, WAV, FLAC, etc.

• With remote controller for convenient use.

• With remote controller for convenient use.


Specifications

Product Information:

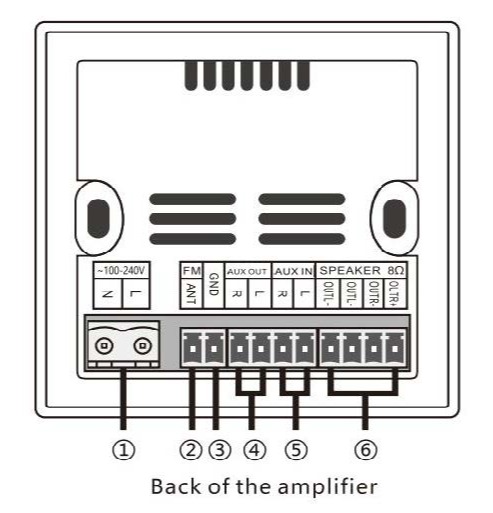

2*20W

①Power input：AC~100-240V

②FM antenna

③Signal ground

④Audio output(2x0.3 ㎟ double-shielded audio cable)

⑤Audio input(2x0.3 ㎟ double-shielded audio

⑥Power amplifier output( Oxygen-free copper speaker cable)

Note: All wire connections shall not be naked.

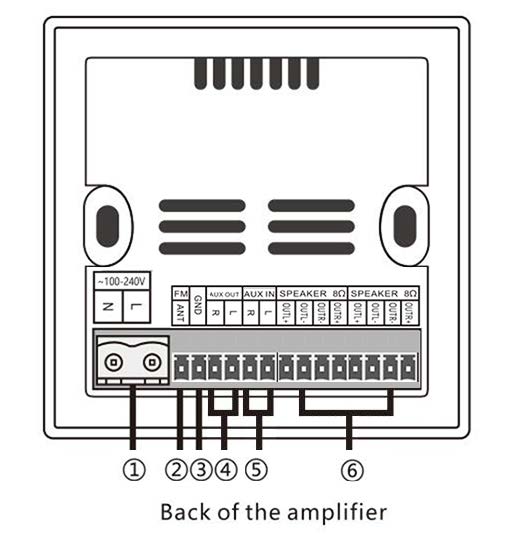

4*20W

①Power input：AC~100-240V

②FM antenna

③Signal ground

④Audio output(2x0.3 ㎟ double-shielded audio cable)

⑤Audio input(2x0.3 ㎟ double-shielded audio

⑥Power amplifier output( Oxygen-free copper speaker cable)

Note: All wire connections shall not be naked.

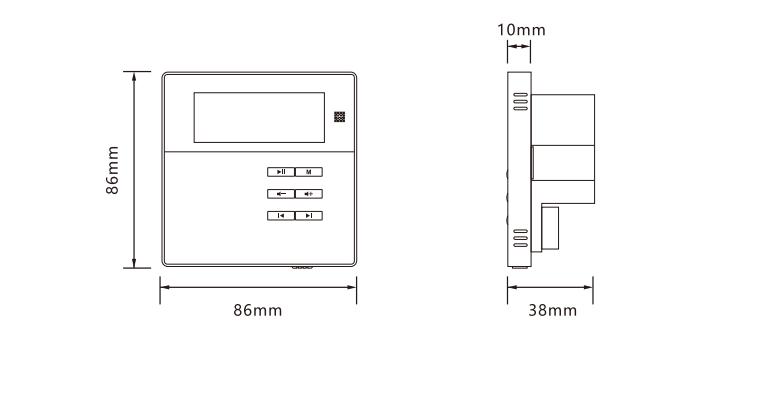

Dimension:

Remote Controller:

1. Standby Switch

2. Mode Selection: Click the key, it will display FM radio receiver, USB, SD, AUX,BLUETOOTH.

3. Mute

4. Voice Mode Selection

5. Menu(not available yet)

6. Play Control Area: Able to play/pause, move to previous and next songs,and control the volume.

7. Play Mode Selection: Click the key, it will display single cycle and order play.

8. Number Key Area: When it is under SD card mode, you can choose a track to play directly by pressing the number key;and when it is under FM mode, you can input an FM frequency directly by pressing the number key
