CMX School Professional Sound System in Chile

2025-09-02 15:19:58

Click:

Congratulation CMX Audio professional sound system sucessfully applied in in MURIALDO School, VALPARAISO,CHILE. The sound of professional line array speaker LAS-210A received high recognition from school leaders,teachers,and stundent . This line array composed by 4 units Dual 10" speaker module plus 1 active 18" subwoofer to power the full system. Total 5 speaker boxes jointed to a one unit array. Play appropriate voice effect include bass and full frequency sound, remarkably elevate the fantas

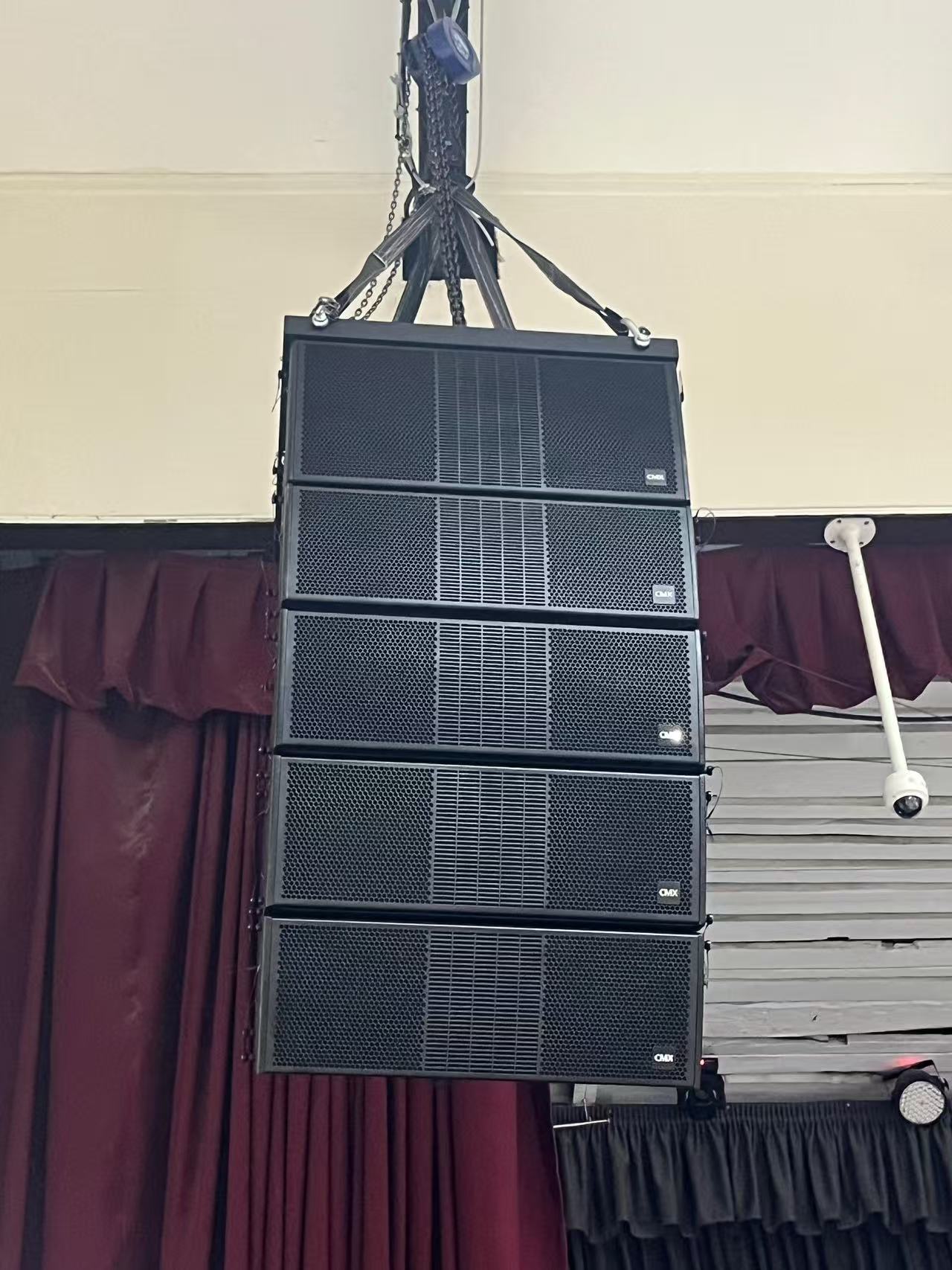

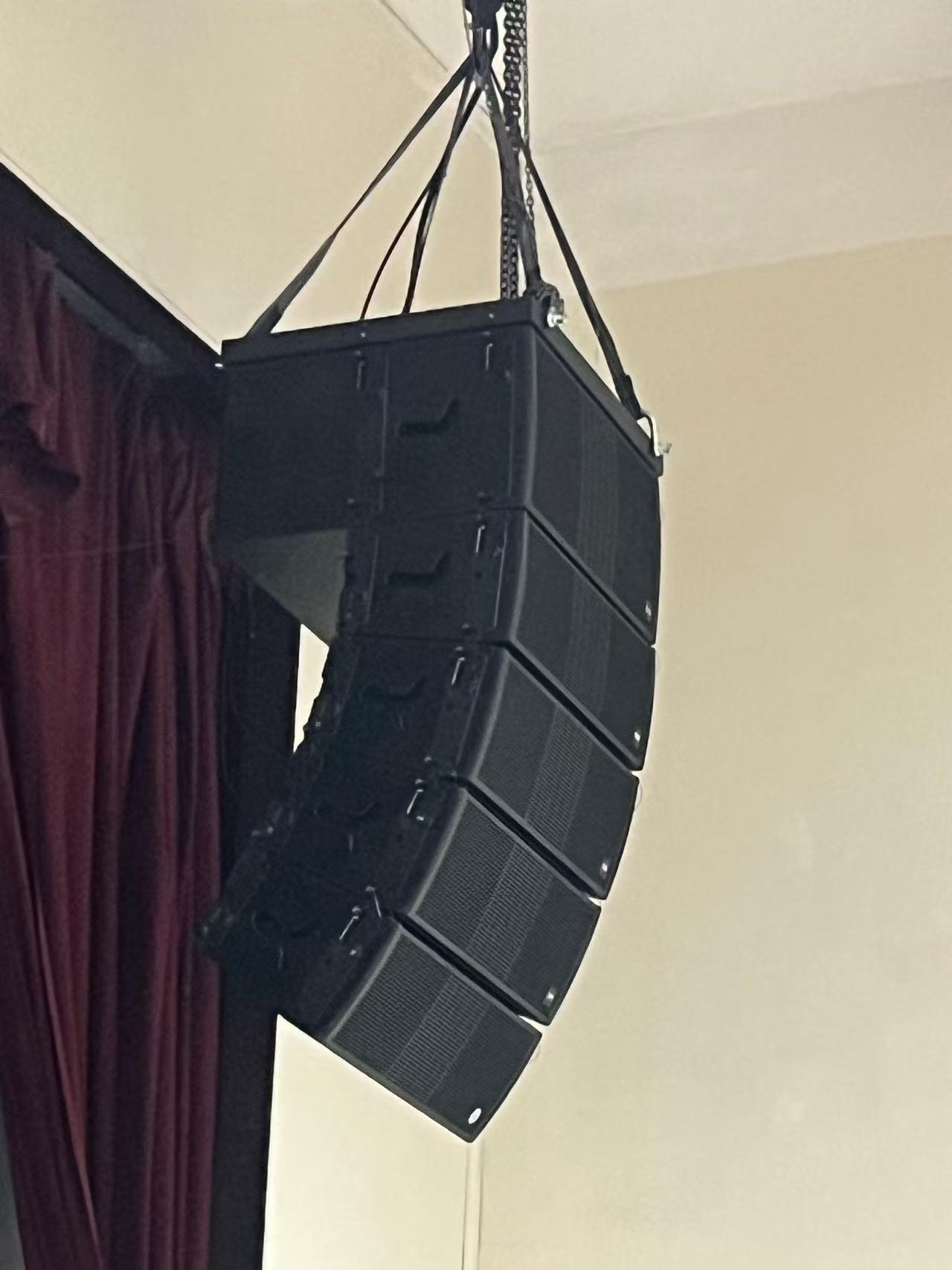

Congratulation CMX Audio professional sound system sucessfully applied in  in MURIALDO School, VALPARAISO,CHILE. The sound of professional line array speaker LAS-210A received high recognition from school leaders,teachers,and stundent . This line array composed by 4 units Dual 10' speaker module plus 1 active 18' subwoofer to power the full system. Total 5 speaker boxes jointed to a one unit array. Play appropriate voice effect include bass and full frequency sound, remarkably elevate the fantastic theater atomosphere and enthusam for the auditorium.  It hang on horizontal steel beam under the infrastructure roof on the left and right side of the stage, assure the sound spreading at a unique clarity and sufficient coverage.



Accompany with LAS-210A, there is also monitor speaker MNS12 in the front of the stage, to let the performer hear his own voice to ensure correctness and effectiveness are considerably optimal.


This professional audio system utilize wireless microphone to speech, adopt mixing console, digital process to adjust sound effect, and professional amplifier to support monitor speaker. System BOQ as below


CMX Model

Description

Qty(pc/set)

LAS-210A4 units of Dual 10' speaker module plus one active 18' subwoofer to power the full system2
LAS-ZG100Linear steel wire sling 1M lenth, 6MM thick. One side locked and another side movable 4
CS-P16C16 In/16 Out DSP, built-in EQ, three way crossover, DSP, Effector, Limiter1
MNS1212' Professional Monitor Speaker,400W RMS, 8 Ohm4
CS-4800Power Amplifier, RMS 4×800W 8 Ohm,  Class-D, support 4 Ohm and bridge, 1U1
MD-32M32 Channel Digital Mixer,10.1' HD touch sreen display,42 channels line in (38 channels analog and 4 channels digital,support 32 channel Mic/Line input,2 group 3.5 RCA stereo input,1 group digital input,MP3,AES digital input and output,20 channel signal out, 14 channel AUX 1-14 aux output,1 monitor out.1
WM-U200CUHF Wireless Microphone System, Two channel, Handheld Mic or bodypack receiver with lavalier Mic, adjustable frequency1

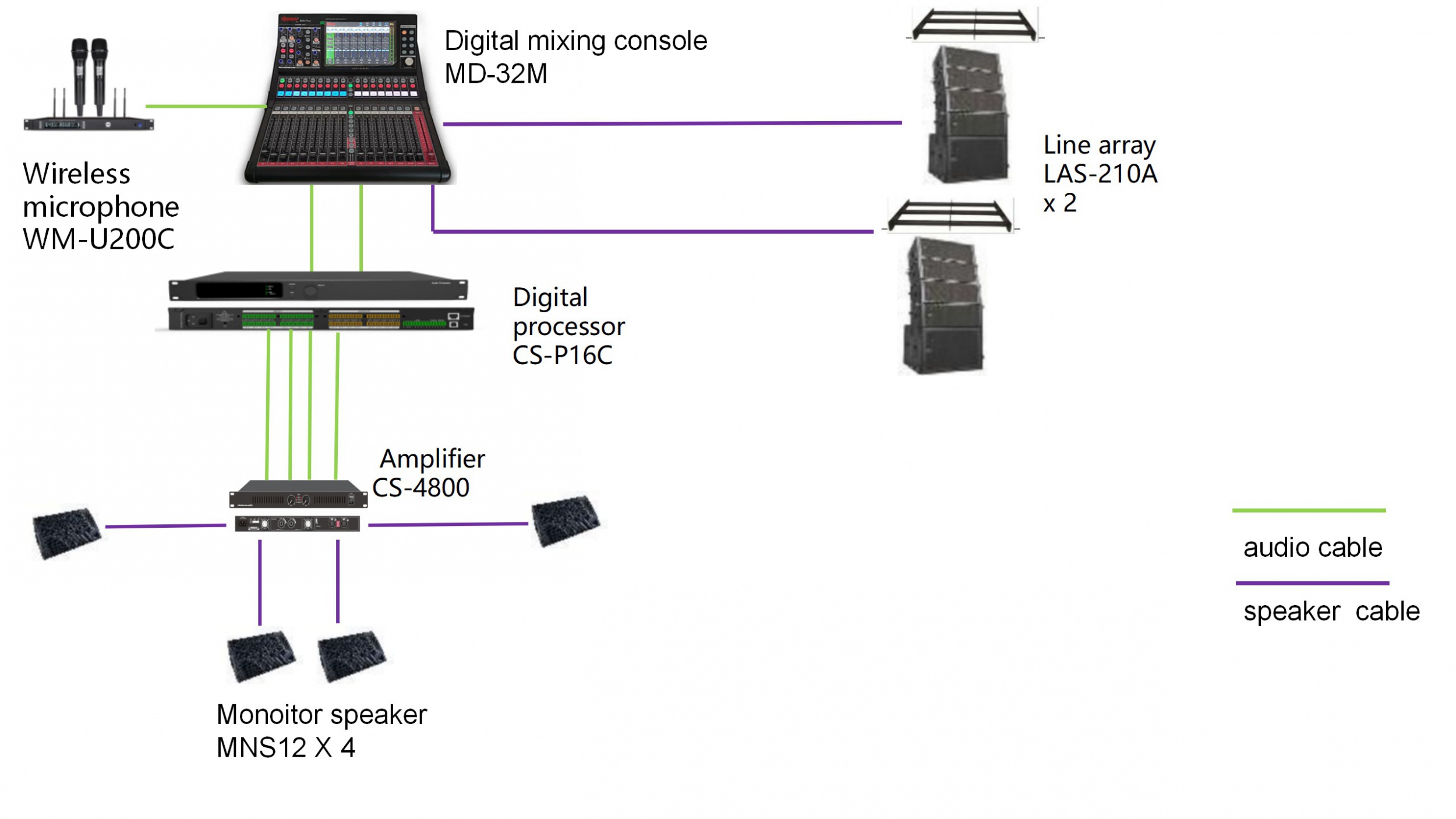

Equioments connect diagram as this





We are excited that not only our PA products are popular in Europe, but also our professional audio products gain a wonderful horizon. Thanks to our prominent customers, our more type products are contently recognized which lead to brighter envision of future.

Author: Guangzhou CMX AUDIO Co., Ltd
