Feature:
Specification:
| Model | MCS-420 |
| Description | Coaxial Marine Ceiling Speaker |
| Speaker Size | 4”+0.5”MYLAR |
| Rated Power Output | 20W |
| Max Power Output | 40W |
| Impedance | 8 Ohms |
| Frequency Response | 155-20KHz |
| SPL(@1W/m) | 88±3dB |
| Speaker Unit | Coaxial waterproof PP cone |
| Dimension | 141(D)×70(H)mm |
| Cutout Size | 105mm |
| Material | ABS enclosure and ABS grille in white |
| Mounting Way | In-ceiling quick installation |
| IP Rate | IP66 |
| Operation Temp | -20℃ to +55℃ |
| Humidity | 90-95% |
| Weight | 0.5kg |

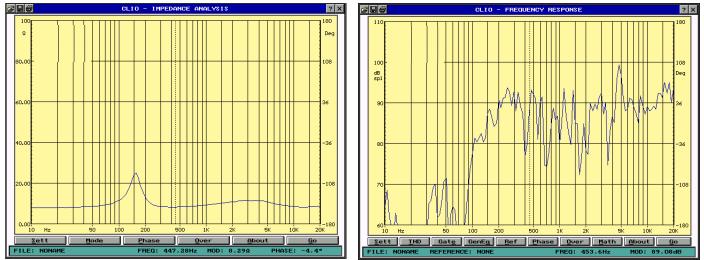

Side View, Mounting & Frequency VS SPL Diagrams:
