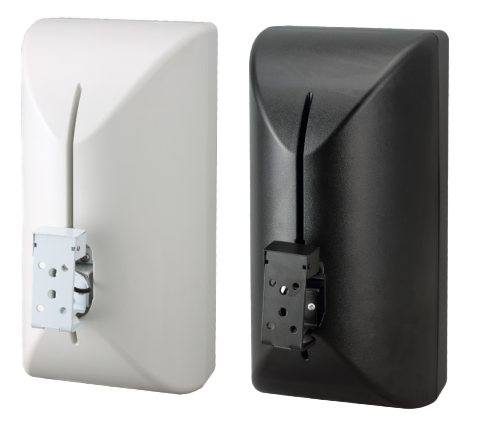

8" 2-Way Wall Mount Speaker WSK-812GT
2025-06-30 16:40:26
Click：
“
WSK-8120GT is 8" 2-way wall mount speaker with 100V/70V power tapping, 120W/60W/30W,Ideal for school, office, hotel and airport background music system
”
Feature:
- Commercial public address speaker with 100V/70V transformer
- Ideal for school, office, hotel and airport background music system
- Power output 1 2 0 W - 60W-30W
- 8' woofer and 1.3” silk tweeter 2-way speaker system
- ABS enclosure, waterproof finish metal grille in black
- Quick installation by supplied 180 degree rotatable mounting bracket
- WSK-812G as option of 8ohm low impedance version
- WSK-812GO as option of 100V & 8ohm power tap version
Specification:
Model | WSK-812GT |
| Description | 8” 2-Way Wall Mount Speaker |
| Power Taps | 120-60W-30W |
| Line Input | 100V or 70V |
| Frequency Response | 80-20KHz |
| SPL(@1W/m) | 93± 3dB |
| Speaker Unit | 8' woofer and 1.3” silk tweeter 2-way speaker system |
| Dimension | 470 × 230 × 257 mm |
| Material | ABS enclosure and waterproof finish metal grille in black |
| IP Rated | IP55 |
| Mounting Way | Quick installation by 180 degree rotatable mounting bracket |
| Net Weight | 6.5kg |

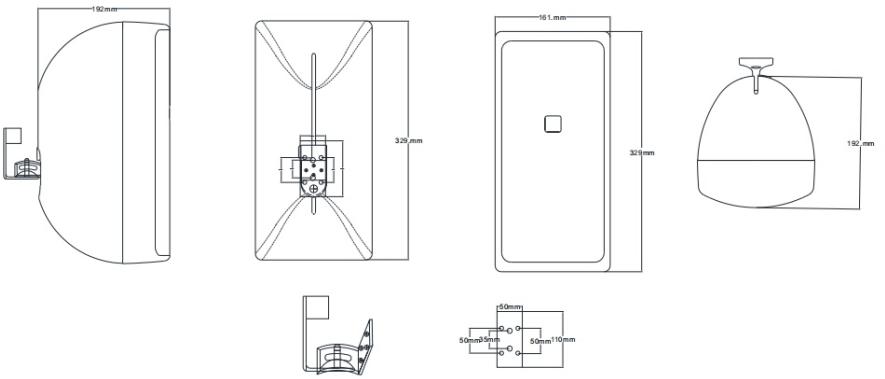

Side View & Dimension:

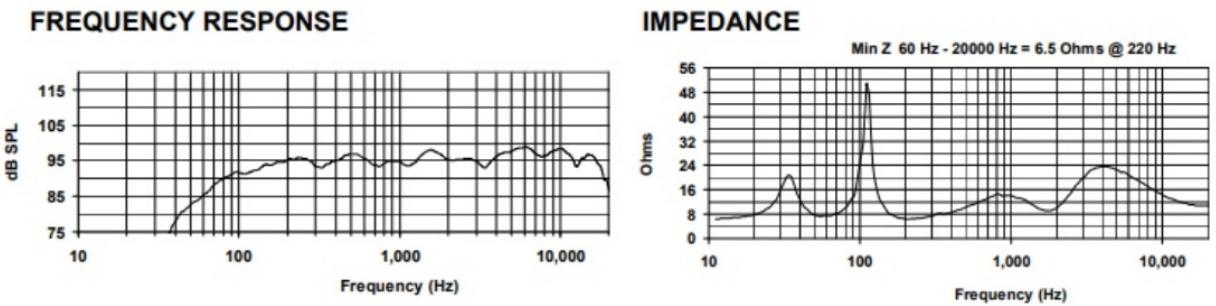

Impedance VS SPL Diagrams:
Author：
Guangzhou CMX AUDIO Co., Ltd
