CMX 24 ZONES PAVA-6500 VOICE EVACUATION SYSTEM FOR HOTEL

2025-06-23 09:30:41

Click：

“ The hotel's emergency broadcast system is an important facility for daily management and emergency response. It is mainly used to quickly transmit key information in an emergency to protect the lives and property of passengers ”

The hotel's emergency broadcast system is an important facility for daily management and emergency response. It is mainly used to quickly transmit key information in an emergency to protect the lives and property of passengers. Its core functions include:

1. Rapid response to emergency events. The PVAV system has a default alarm priority level. In response to emergencies, the alarm and evacuation route are broadcast in the first time to avoid trampling;

2. Automatic emergency broadcast for firefighting, support docking with the firefighting system, and automatically trigger the broadcast of fire alarms;

3. Response to public safety incidents and emergency paging broadcasts to ensure customer safety;

4. Support host expansion backup and emergency power supply. The host built-in amplifier fails and quickly switches to the backup amplifier. When the building power is off, the backup emergency power supply can be switched to ensure stable operation of the system;

5. Support speaker line detection, automatically detect the speaker line status, and ensure normal broadcasting;

6. Background music, support 24 zones. Relaxing music is played in the public areas of the hotel to create a good living atmosphere;

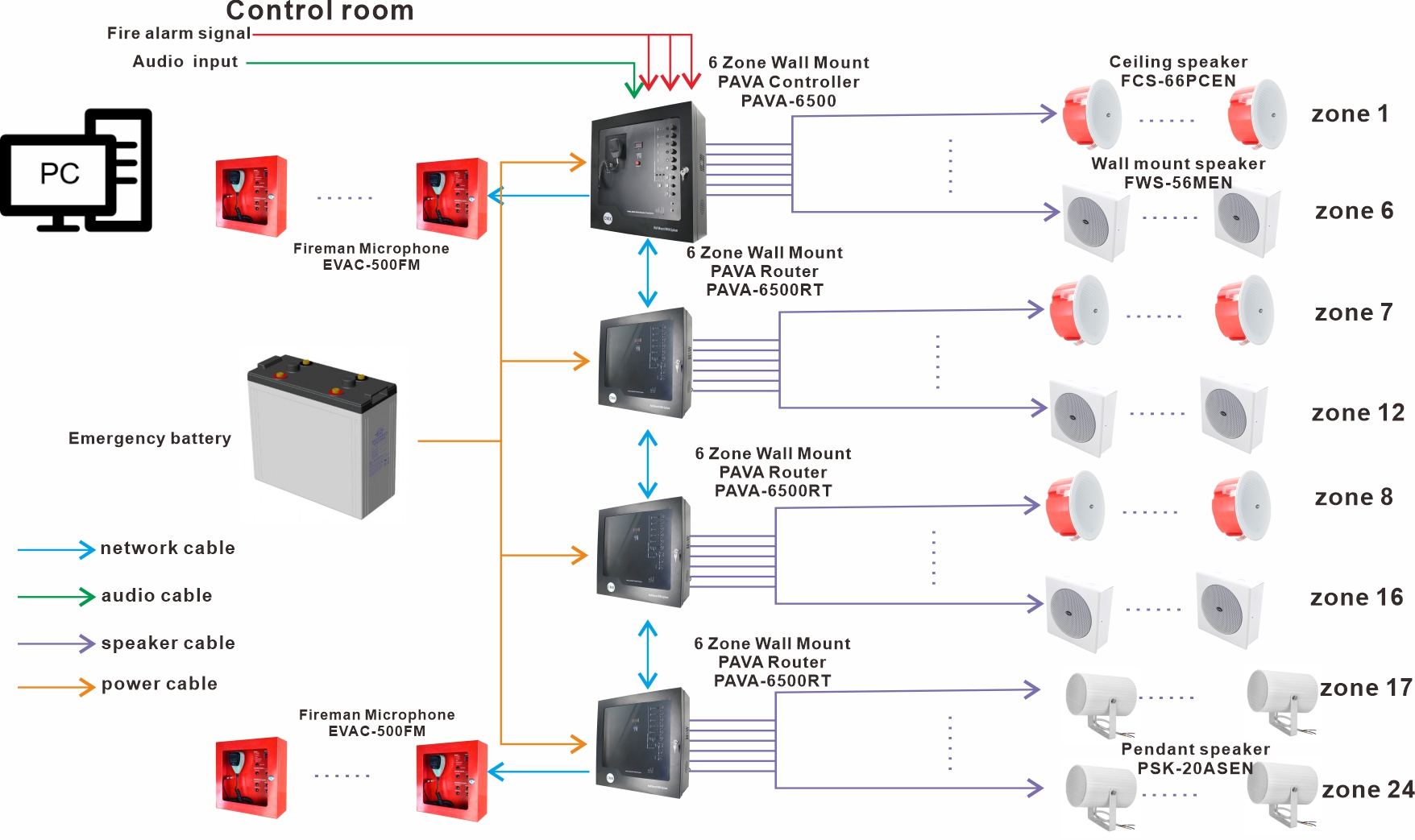

Model	Description	QTY
PAVA-6500	6 Zone EVAC Controller, built-in 500W class-D amplifier, built-in EVAC and alert voice message by SD card, with fireman microphone, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate	1
PAVA-6500RT	6 Zone Router, built-in 500W class-D amplifier, with 6 zone speaker outputs and volume control, receive sources and fire alarm message from master controller, with AB speaker line low impedance supervision, with amplifier auto changeover into standby when fault, with extension amplifier connector, AC and DC battery operation. EN54-16 certificate	3
EVAC-500FM	Fireman Microphone, built-in EVAC/Alert message, program button setting, capacity is of 120 zones, DC24V power supply, with door and lock. EN54-16 certificate	8
FCS-66PCEN	EN54-24 6.5' Ceiling Speaker with Fire Dome, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable,ABS, with EN54-24 certificate	120
FWS-56MEN	EN54-24 5' Wall Mount Speaker, 6-3-1.5W, 100V, ceramic connector, thermal fuse and fire resistable cable, with EN54-24 certificate	96
PSK-20ASEN	EN54-24 Outdoor Horn Speaker, 30-15-7.5W/100V+ 8 Ohm, ceramic connector, thermal fuse and fire resistant cable, with EN54-24 certificate	8
