Voice Evacuation System EVAC-8500 at a resort in Vietnam.
2025-05-24 09:20:54
Click：
“

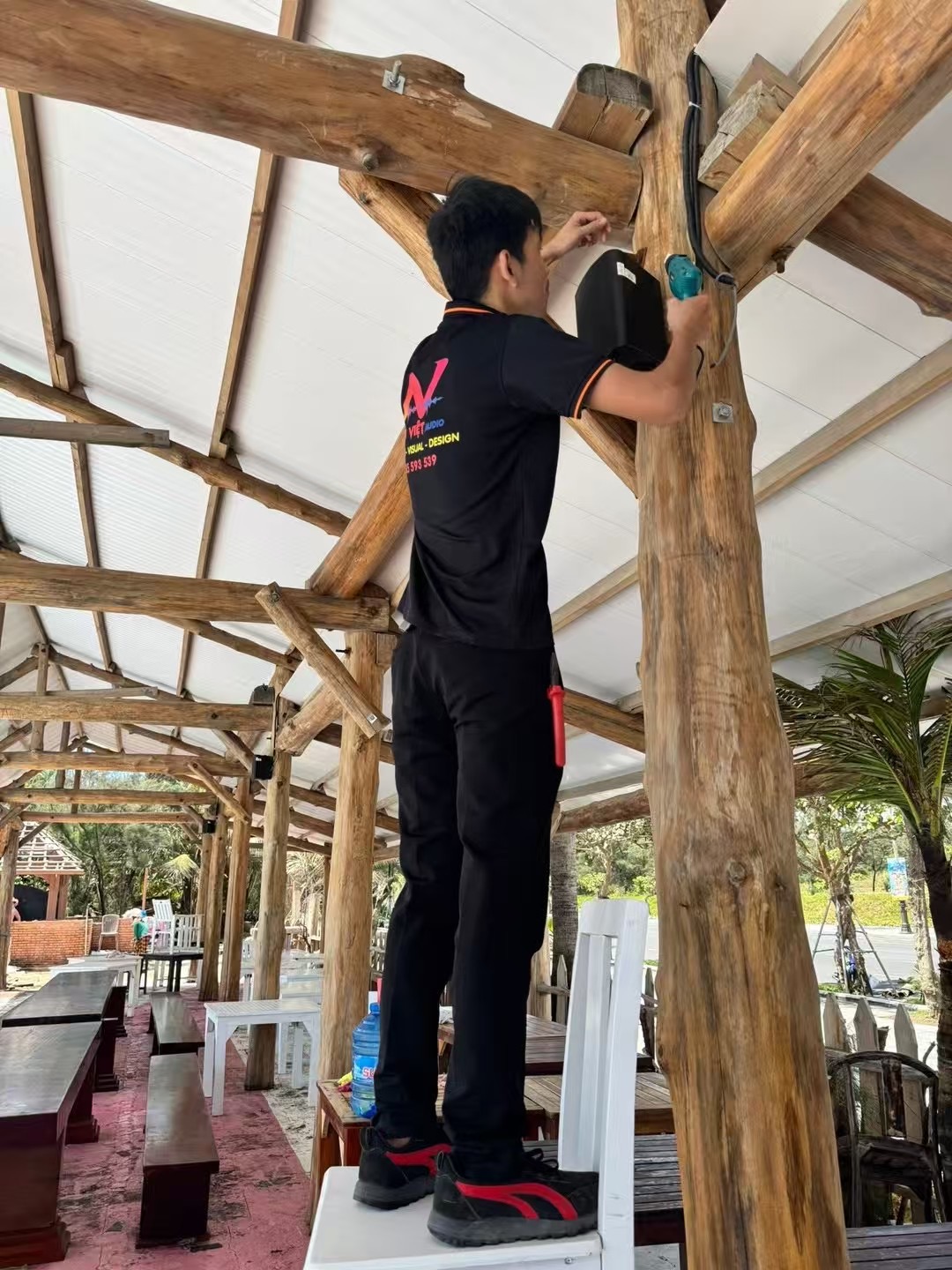

We’re thrilled to announce the successful installation of our 28-zone EVAC-8500
”
We’re thrilled to announce the successful installation of our 28-zone EVAC-8500 Voice Evacuation System at a stunning resort in Vietnam! This advanced system ensures seamless BGM playback across leisure areas, clear public address broadcasts, and life-saving emergency notifications.
- BGM Integration: Soothing music enhances guest experience in pools, lobbies, and dining zones.
- Reliable Paging: Crystal-clear announcements for events, staff coordination, and guest services.
- Emergency Ready: Instant voice evacuation alerts for maximum safety during critical situations.
A big shoutout to our team and the client for their trust! This project highlights our commitment to smart, reliable, and scalable safety solutions for hospitality.
System BOQ
| Model | Description | Quantity |
EVAC-8500 | 8 Zone EVAC Controller, built-in 500W class-D amplifier, built-in EVAC andalert voice message by SD card, with fireman microphone. with AB speaker line low impedance superision, with amplifier auto changeover into standby when fault, with exension amplifier connector, Ac and DC battery operation.EN54-16 certificate | 1 |
| EAVC-8500RT | 8 Zone Router, built-in 500Wclass-D amplifier, with 6 zone speaker outputs and volume control, receive sources and fire alarm message frommaster controller, with AB speaker line low impedance superision, with amplifier auto change over into standbywhen fault, with exension amplifier connector, AC and DC battery operation.EN54-16 certificate | 3 |
| EVAC-500RM | Remote Paging Microphone, 12 zone and expandable to 120 zones byconnection with zone keypad,DC24Vpower supplyEN54-16 certificate | 2 |
| EVAC-12KD | 12 Zone Keypad for remote microphone EVAC-500RM, system capacity upto 120 zones. EN54-16 certificate | 4 |
| DA-500 | Single Channel Class-D Amplifier, RMs 500w, 100V& 8 Ohm, 1U | 1 |
| DMT200 | CD Player/Mp3/Tuner, with remote control, with USB & SD, AMFM & RDS two separate outputs.1U | 1 |
| CSK-66E | 6.5' Ceiling Speaker,6-3W,100V ABS | 35 |
| WSK-420CSIP | 4' 2-Way Outdoor Wall Mount speaker, 20-10-5w8 Ohm & 100V, ABSblack.lP66 | 53 |
| GSK-630B | 6.5' 2-Way Outdoor Garden speaker,30-15W,100V, Fiber-glass | 15 |

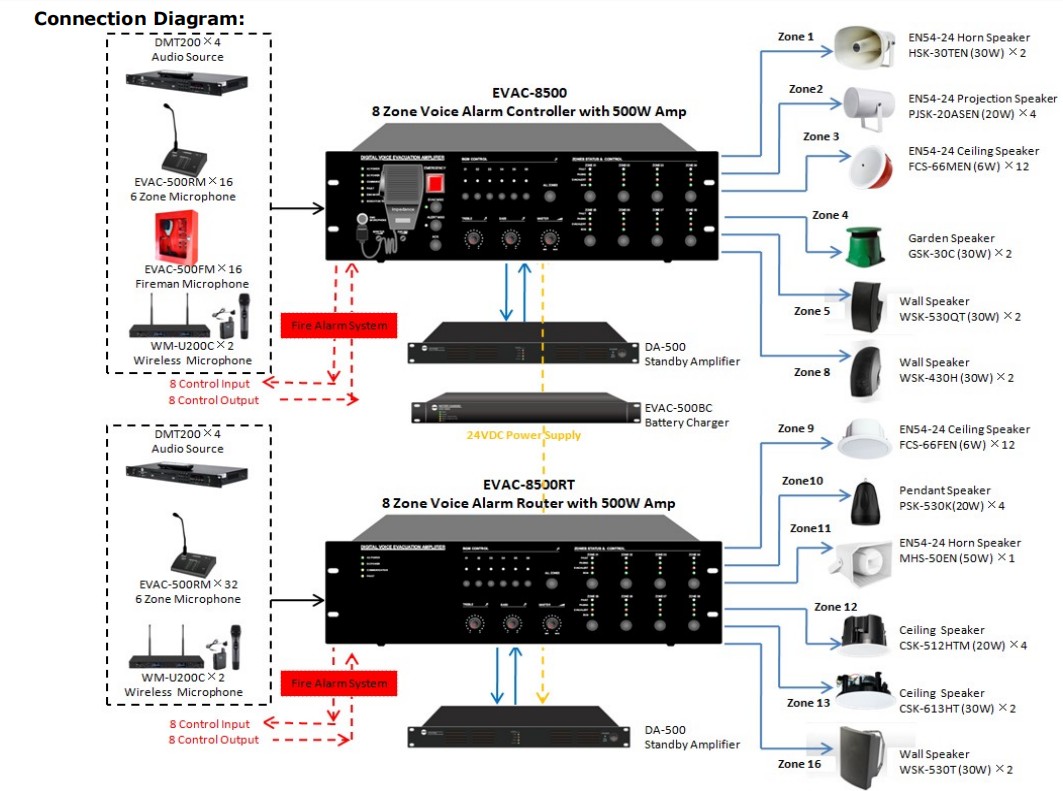

What is Voice Alarm & Evacuation System EVAC-8500?
CMX AUDIO EVAC-8500 system is one voice alarm & evacuation system, it is PAVA system and public address & zone paging and music system all in one solutions. 8 zone controller with 500W amplifier and 8 zone router for zone expansion up to 120 zones, with 32 units call stations, with remote control software, with speaker line failure monitoring, with amplifier failure monitoring, with AC/DC failure monitoring, auto alert/EVAC/Test/Clear message announcement, ideal emergency evacuation system in case of fire, disaster for airport, train station, office,hotel and school.
