CMX IP Network PA System for 4-Story Building in Algeria

2025-04-11 17:23:46

Click：

“ CMX DI-9700A IP PA System had been successfully installed in a 4-story commercia ”

CMX DI-9700A IP PA System had been successfully installed in a 4-story commercial building located in Algiers, the capital of Algeria.Though modest in height, this building required a professional-grade public address system with zoned control, clear audio delivery, and cost-effective installation.

DI9700 IP Network PA System provided the perfect solution — expandable, easy to manage, and ideal for multi-zone paging and background music in a compact property.

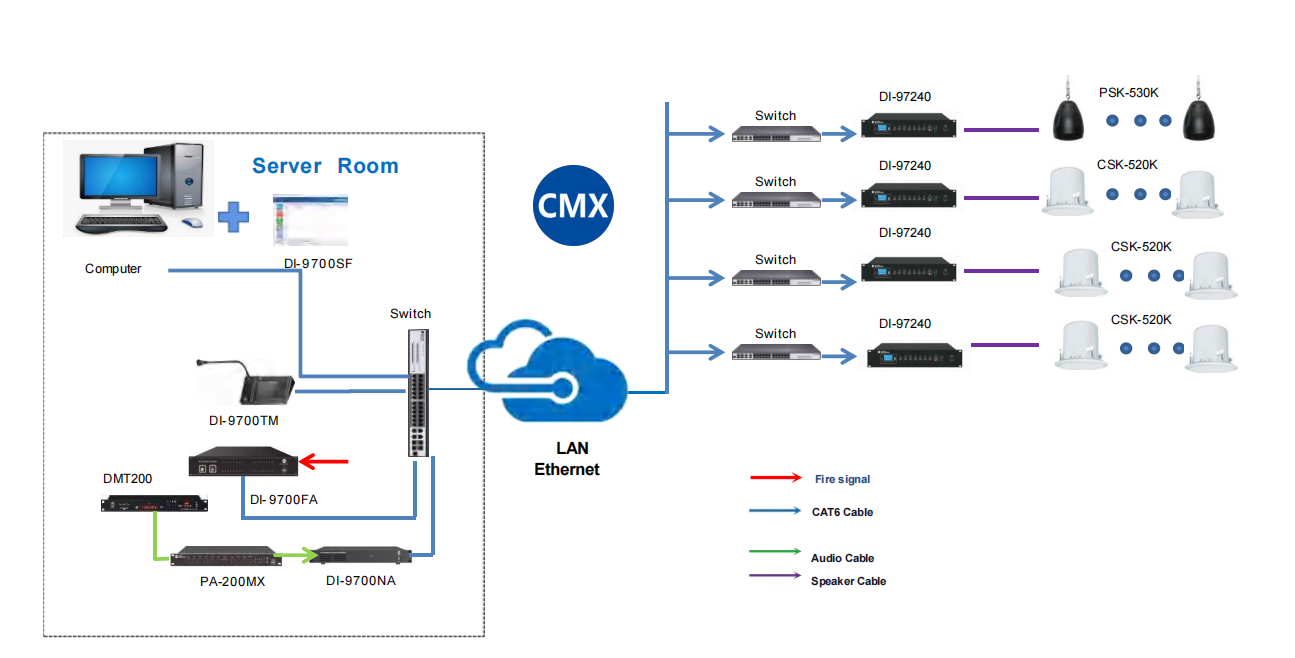

Project Overview:

4-story modern office building

Multi-zone background music + public announcements

IP audio over existing LAN infrastructure

Centralized PC-based control & remote paging

Model	Description	Qty

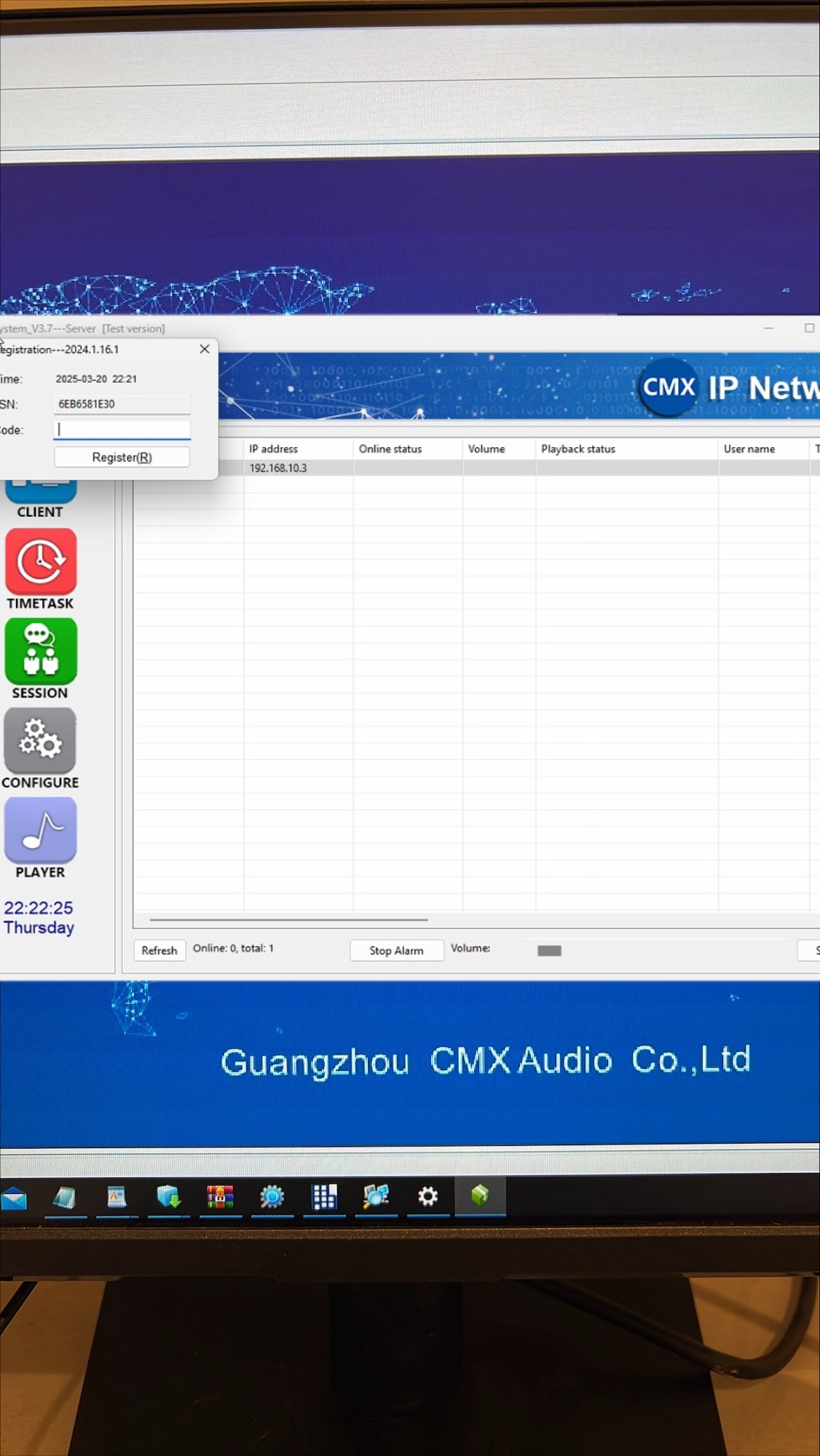

DI-9700SF	IP Network PA System Software, built-in server, built-in encoder, built-in media player, built-in status monitor, built-in weekly program timer, support English Windows 7,8,10	1
DI-9700UB	Dongle for DI-9700SF	1
DI-9700TM	IP Network Remote Microphone, with 7' touch screen,5W monitor speaker, USB input to broadcast pre-record voice message to different zones, control up to 6,000 speaker zones	1

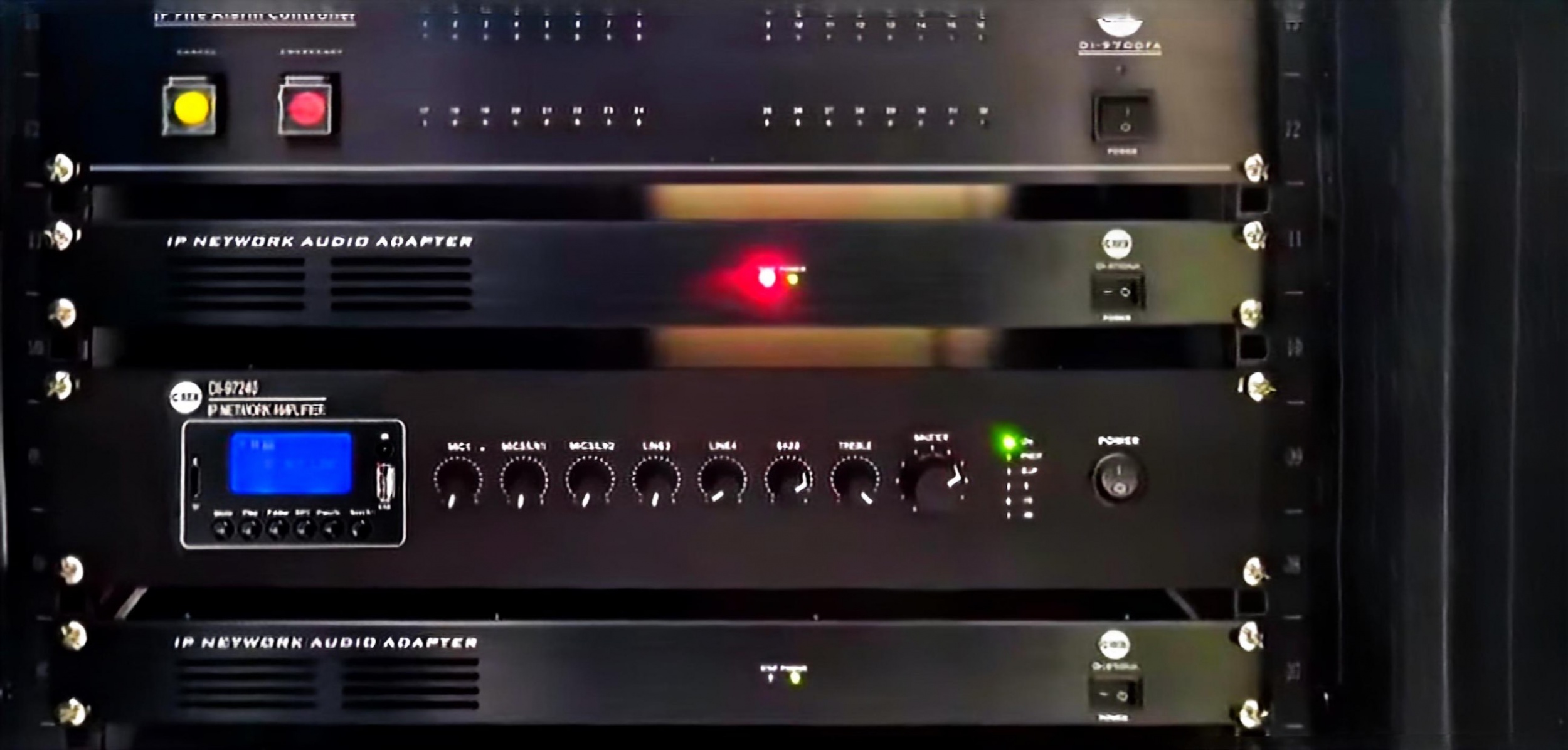

DI-9700NA	IP Network Audio Encoder & Decoder	1
DMT200	DVD/CD Player/Mp3/Tuner, with remote control, with USB & SD, FM & RDS, two separate outputs. 1U	1
DI-9700FA	32 Zone IP Voice Alarm Panel, interface of fire alarm system with public address system, automatically trigger the voice alarm system or pre-record voice message broadcasting after receiving trigger, 19' rack mount design, with IP addressable, AC220V power supply.	1
PA-200MX	Stereo 10 Channel Mixer, Mic1-6 XLR with phantom power, Line1-4, Balanced XLR stereo output	1

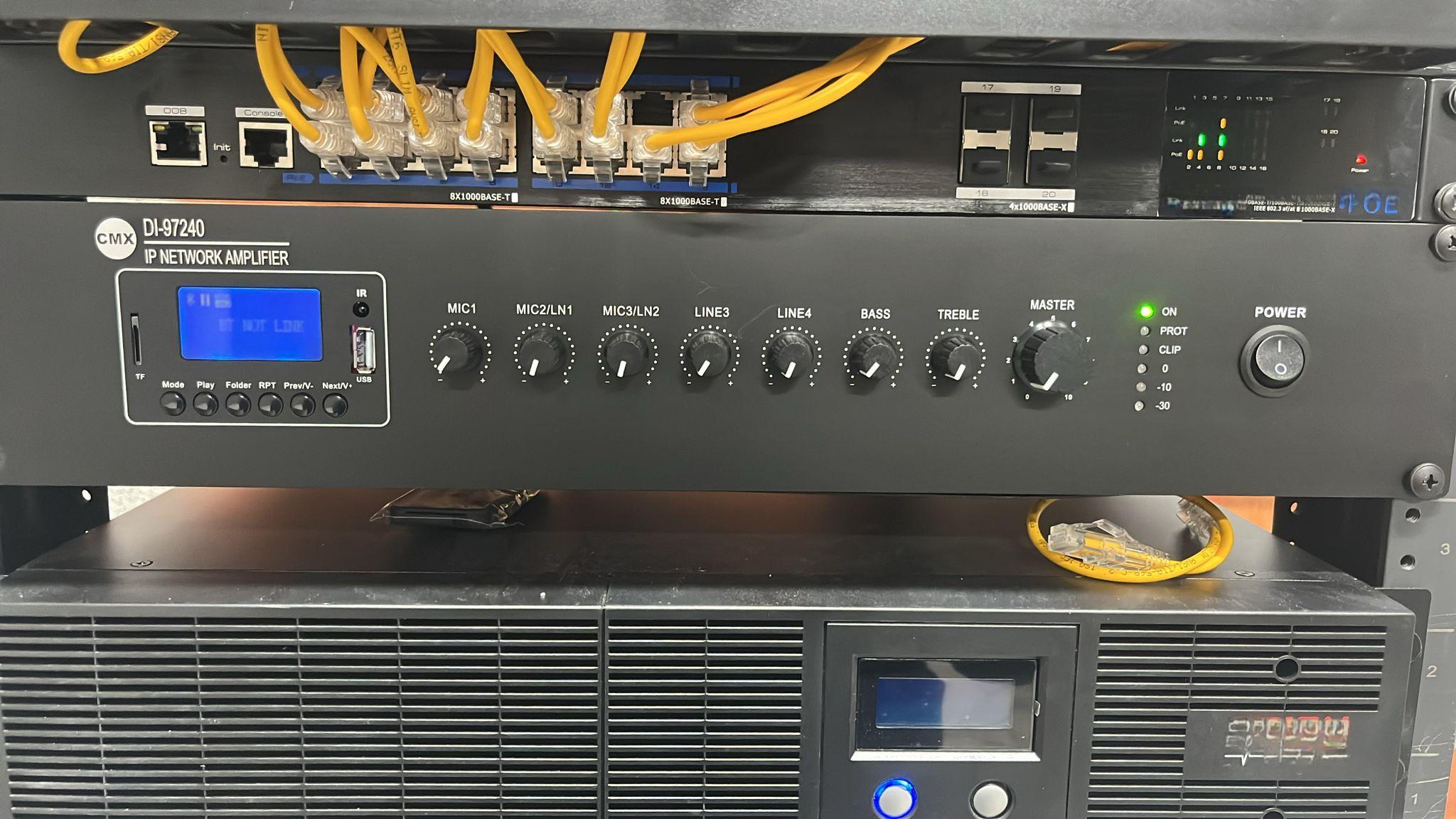

DI-97240	19' IP Amplifier, 240W,100V & 4-16 Ohm, with streaming and decoder, with 3 mic inputs and 2 line inputs	4

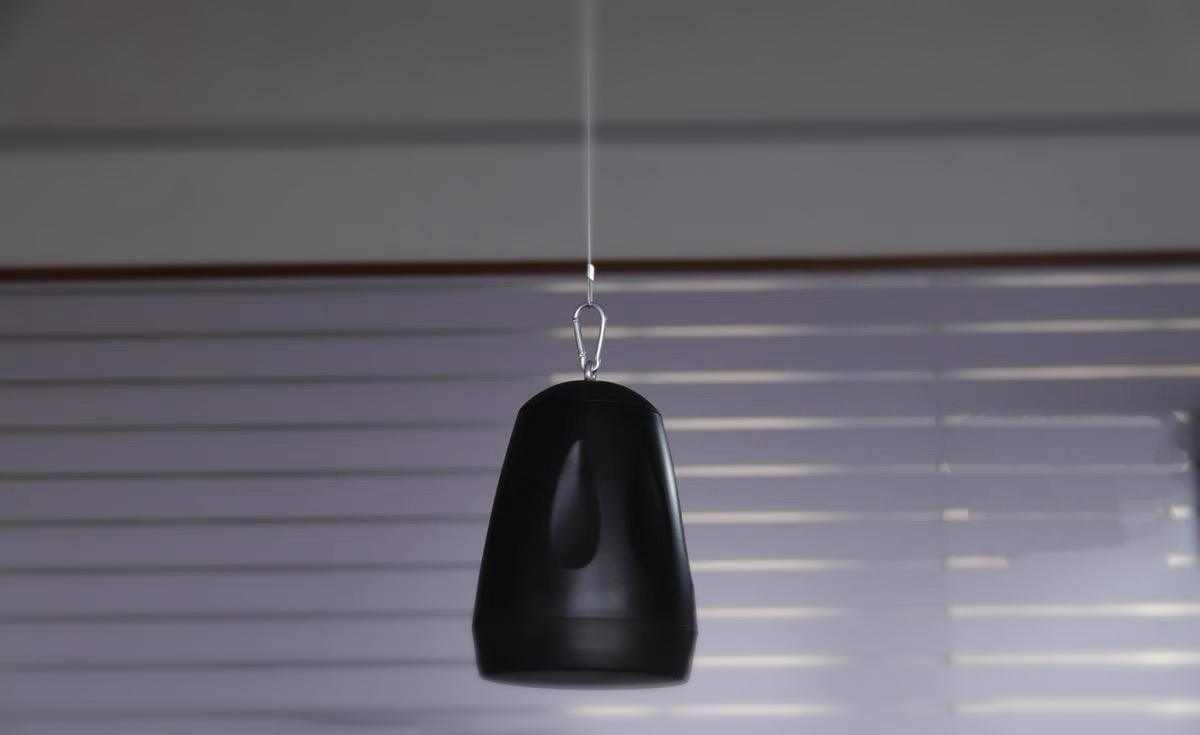

PSK-530K	5.25' Pendant Speaker, 30-15-7.5W/100V+ 8 Ohm, ABS black	8

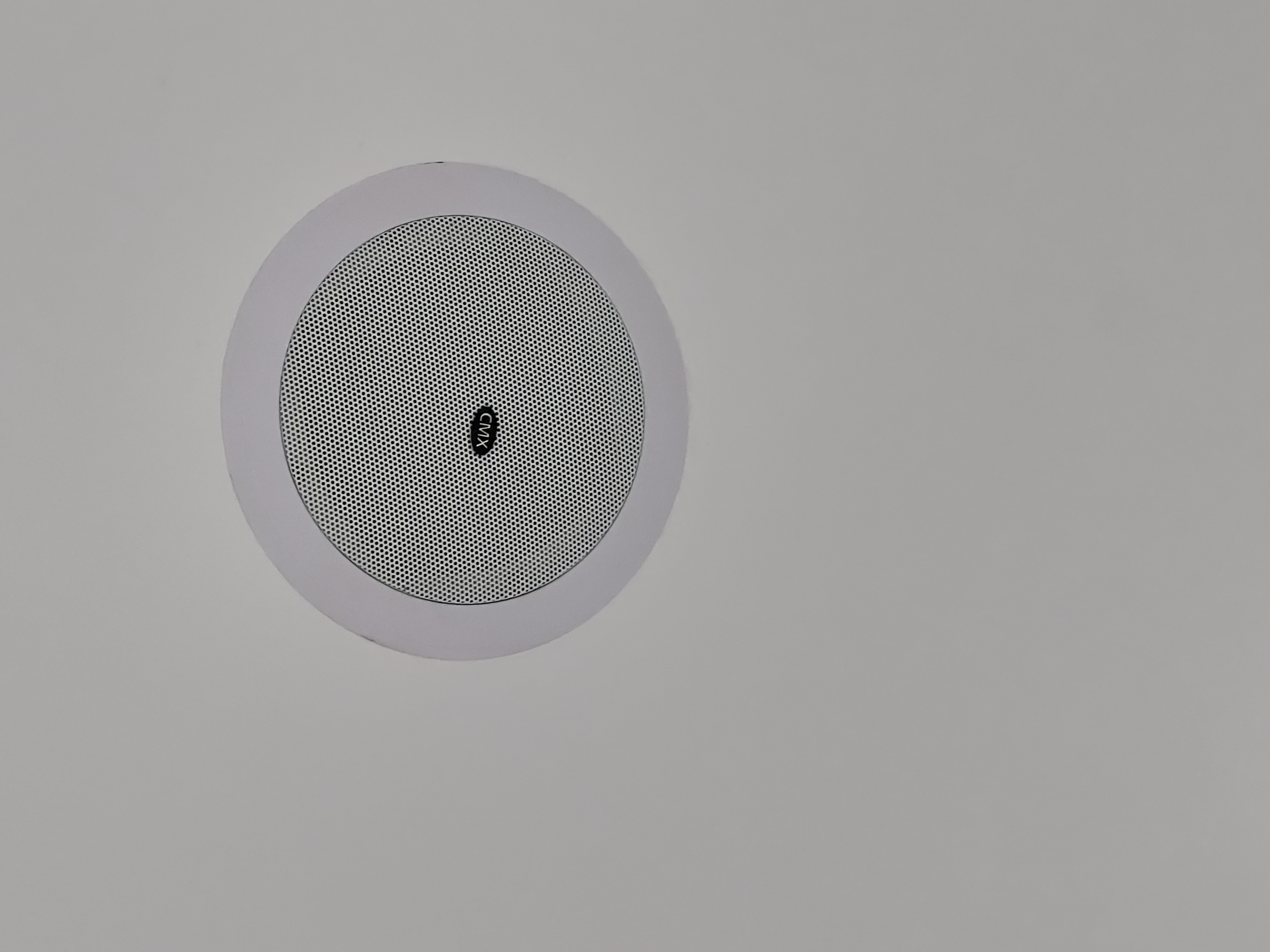

CSK-520K	5' 2-Way Ceiling Speaker with ABS Cover, 20/10/5W/8 Ohm, 100V, metal with fire dome	24
