EN54-24 6” Ceiling Speaker FCS-66PCEN
2025-02-14 10:20:56
Click：
“
Features:Compliant with the EN54-24 standards.Built-in 100v/70v transformer for
”
Features:
- Compliant with the EN54-24 standards.
- Built-in 100v/70v transformer for PA & VA system.
- Commercial fireproof ceiling speaker with transformer.
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse.
- Rated power output 6 /3 /1.5 /0.75 W at 100V.
- 6' dual cone fire resistant finish and rustproof speaker unit.
- V0 fire resistant ABS enclosure,back box and metal grille in white.
Specifications:
| Model | FCS-66PCEN |
| Description | EN54-24 6” Ceiling Speaker |
| Power Taps 100V | 0.75W-1.5W-3W-6W |
| Sensitivity 1W/1m | 92±3dB and Max 98±3dB |
| Frequency Response | 100-16KHz |
| Speaker Driver | 6” dual cone fire resistant finish and rustproof speaker unit |
| Finish | V0 fire resistant ABS enclosure,back box and metal grille in white |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø180mm |
| Dimensions | Ø202.5×104mm |
| Weight | 0.6kg |

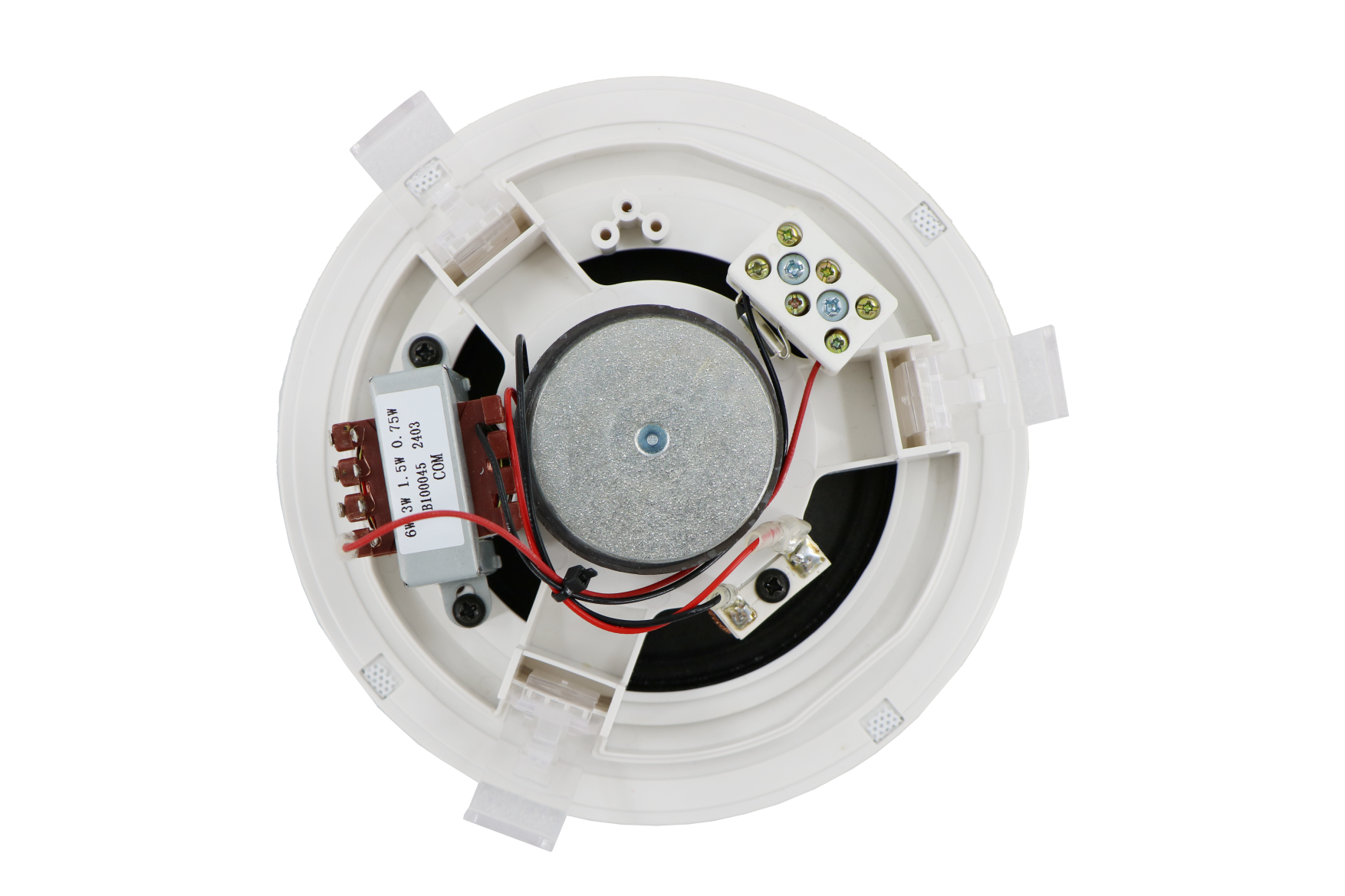

Installation & Wiring diagram:
Author：
Guangzhou CMX AUDIO Co., Ltd
