Paperless Conference System Solution

2025-01-18 14:29:00

Click:

System Overview:The conference room needs to have information storage security,

System Overview:

The conference room needs to have information storage security, be collaborative and reduce the use and waste of paper, be able to meet the needs of the conference to quickly transmit, store and share information, accurately restore the speaker's voice, and have uniform sound throughout the conference room. At the same time, the conference room equipment needs to be uniformly managed and easy to operate. The conference room has 18 unit conference units.


Features:

  • Support pre-meeting, in-meeting and post-meeting processes. Before the meeting, the meeting staff ensures the electronic transmission of pre-meeting materials and prepares for the meeting.
  • The meeting combines meeting process management, information sharing, interactive communication, voting statistics and meeting services, from agenda arrangement to information sharing, to instant messaging and conference service calls.
  • After the meeting, the agenda, announcements, materials, voting, sign-in details, etc. of this meeting are archived with one click.
  • Support clear microphone voice quality: closely linked to the meeting agenda and integrated into the process, and cooperate with instant messaging to promote discussion.
  • Support paperless display screens and lifting microphones, unified management, unified lifting, and convenient operation.
  • Support unified management of equipment and lighting in the conference room, free and convenient operation.
  • The sound reinforcement system can accurately restore the speaker's voice, the speakers are evenly distributed over a wide area, the sound is uniform over the entire area, the anti-interference ability is strong, the operation is long-lasting, and the sound quality is constant.

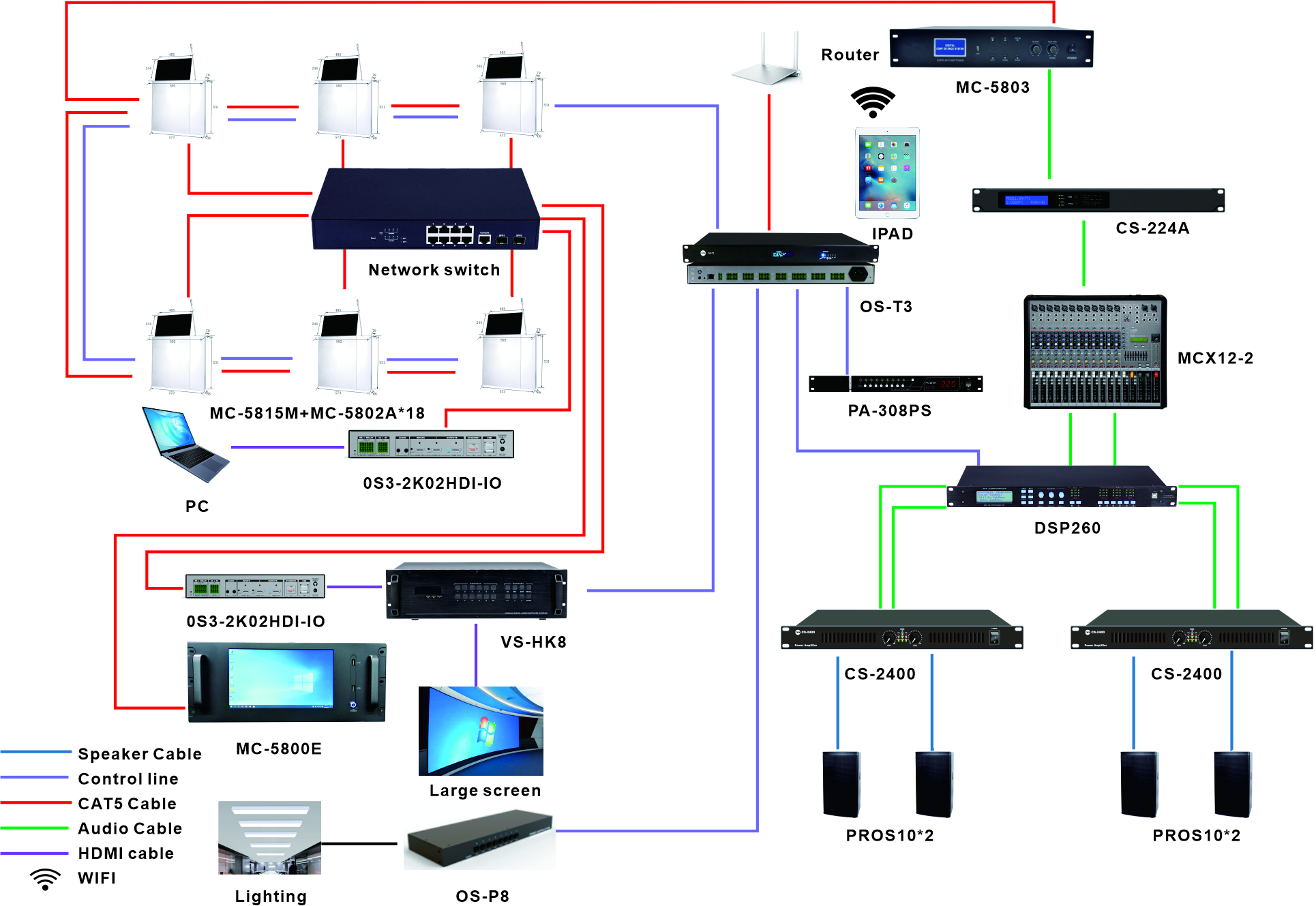

System BOQ

Model

FeatureQTY
MC-5815M15.6 Inch LCD Motorized Paperless System Interactive Monitor

18

MC-5802APaperless Conference Encoder18
MC-5803Digital Conference System Controller 1
MC-5800V3.0ENPaperless Conference System Management Server Software1
MC-5800S01ENSoftware for Paperless Conference System Terminal18
MC-5800F01Dongle (Only one dongle in one project)1
0S3-2K02HDI-IOOptional 2.08-inch OLED screen can be used to display the node IP address, software version and operation status information2
VS-HK88 Channel HDMI Matrix,support 8 channels signal input and 8 channel signal output,support 3D video,HDMI 1.4 protocal,HDCP,support touch key interface control、RS-232,TCP/IP,IR control,iOS mobile phone and App remote control1
OS-T3Programable Multimedia Control Cente,TCP/IP protocol, support unlimited extension,8 individual programable RS232/422/485 port,8 channels relay interface,can drive the load under AC125V/1A, can control third party device,8 channels individual programable IR port,8-channel digital Input/Output control port1
OS-P88 Channel Power Controller 8 on/off relay control switches,support TCP/IP protocol,support RS-232/485 control port1
CS-224ADual Channel Automatic Feedback Suppression,with noise gate, gain, 8-brand PEQ and compressor for each channel1
MCX12-212 Channel Mixer, with USB, 16 DSP, 3 Band EQ, 48V phantom power,Aux send,2 group output, monitor out1
DSP2602 In/6 Out DSP, built-in EQ, three way crossover, DSP, Effector, Limiter1
CS-2400Power Amplifier, RMS 2×400W 8 Ohm,  Class-D, support 4 Ohm and bridge, 1U2
PROS1010' 2-Way Professional Loudspeaker, 500W/250W, 8 Ohm4


Author: Guangzhou CMX AUDIO Co., Ltd
