4” Two Way Frameless Ceiling Speaker with Fire Dome CSK-430HM
2024-11-27 14:59:54
Click：
“
Features:Commercial ceiling speaker with 100V/70V transformerBuilt-in 100V/70V t
”
Features:
- Commercial ceiling speaker with 100V/70V transformer
- Built-in 100V/70V transformer for PA & VA system
- 100V power taps 30-15-7.5-3.8W & 8Ω
- 100V power taps selector on front panel
- 100V/70V transformer and 8Ω both applications
- 4" woofer and 1.5” silk teeter coaxial speaker system
- ABS enclosure and metal grille in white with black metal fire dome
- 4 Dog ears flush mount in-ceiling quick and secure installation
Specifications:
Model | CSK-430HM |
| Description | 4” Two Way Frameless Ceiling Speaker with Fire Dome |
| Power Taps 100V | 30-15-7.5-3.8W & 8Ω |
| Sensitivity 1W/1m | 89±2dB |
| Frequency Response | 90Hz-20KHz |
| Speaker Driver | 4” woofer and 1.5” silk teeter coaxial speaker system |
| Finish | ABS enclosure and metal grille in white with black metal fire dome |
| Mounting Way | 4 Dog ears flush mount in-ceiling quick and secure installation |
| Cutout Size | Ø172mm |
| Dimensions | Ø208×195mm |
| Weight | 2.5kg |

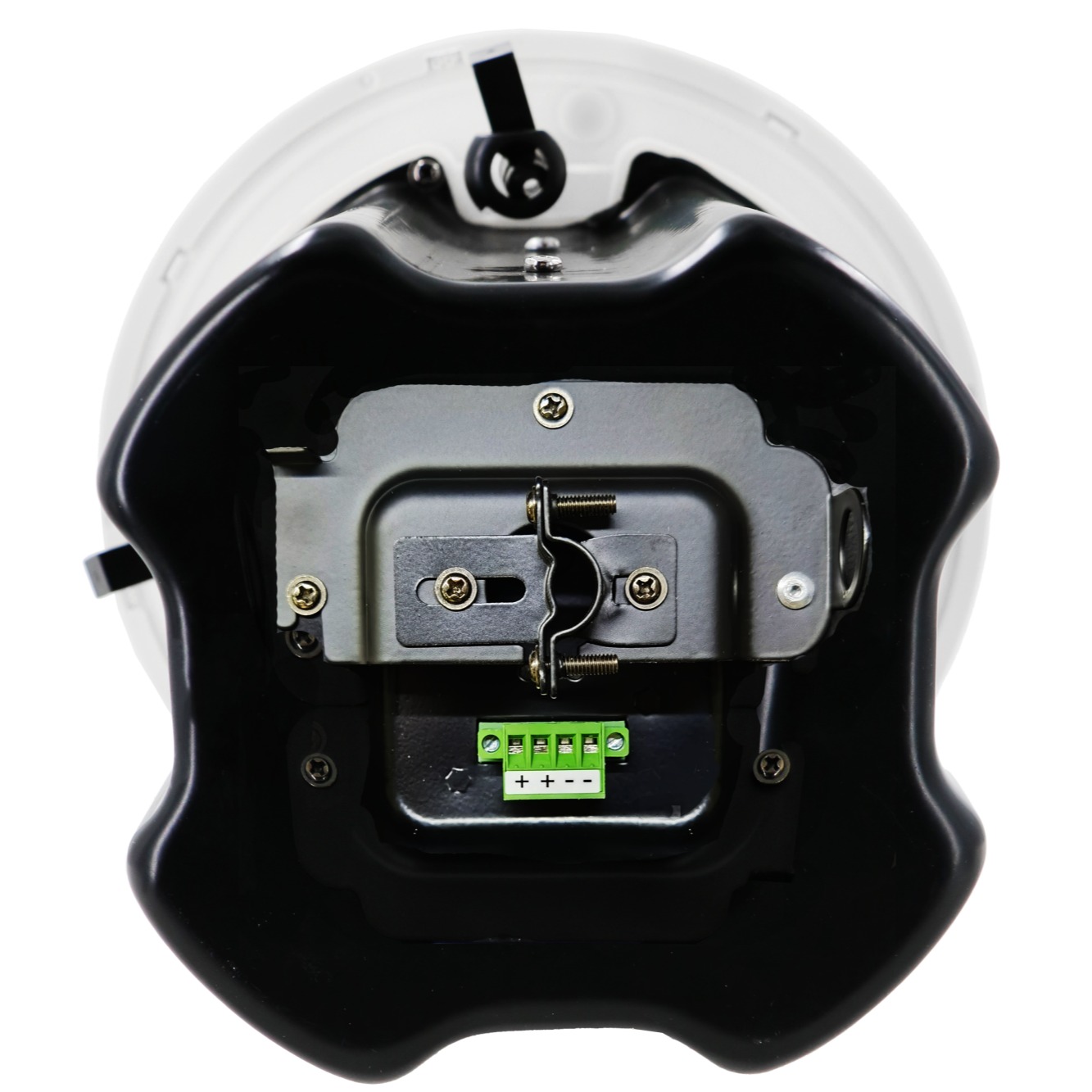

Installation & Wiring diagram:
Author：
Guangzhou CMX AUDIO Co., Ltd
