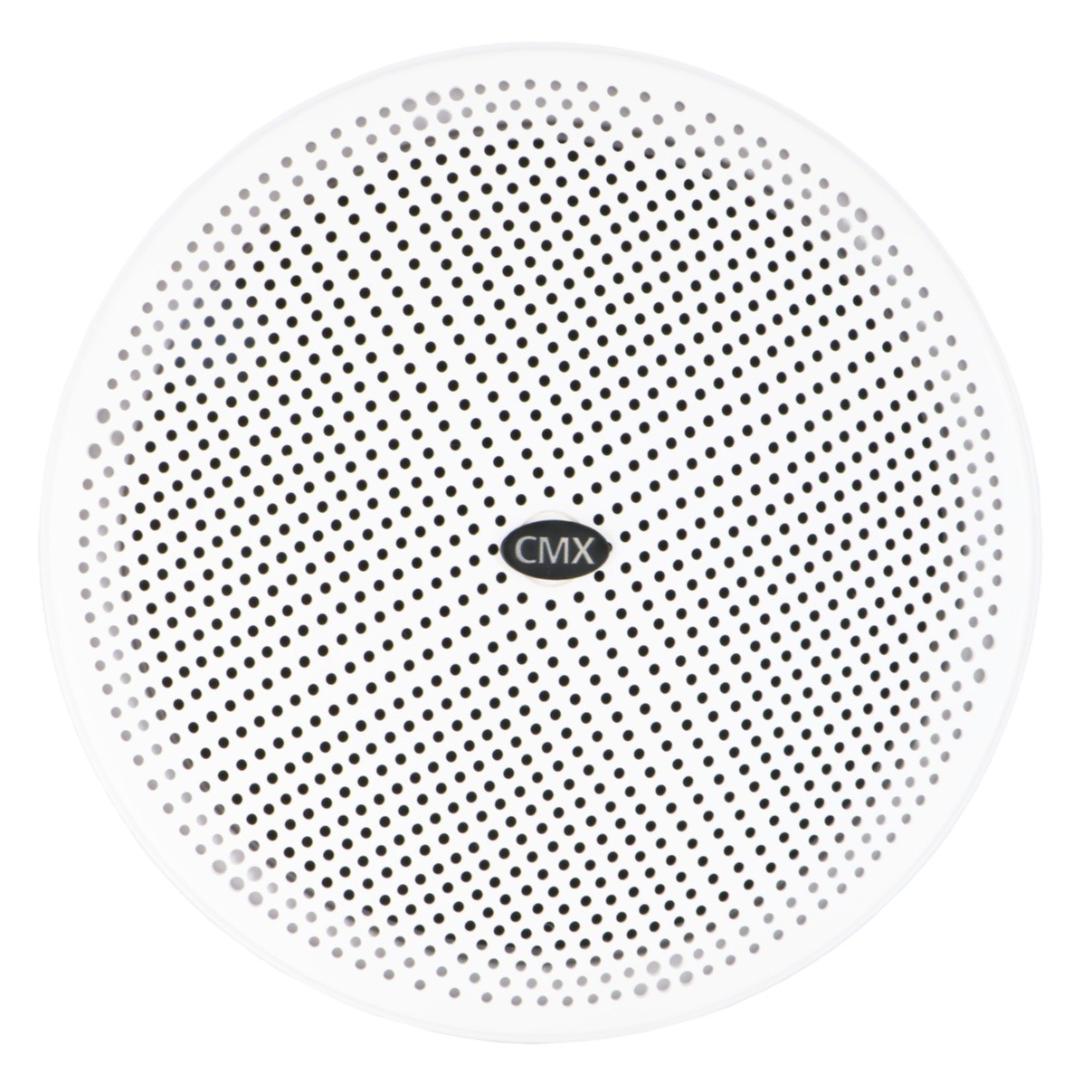

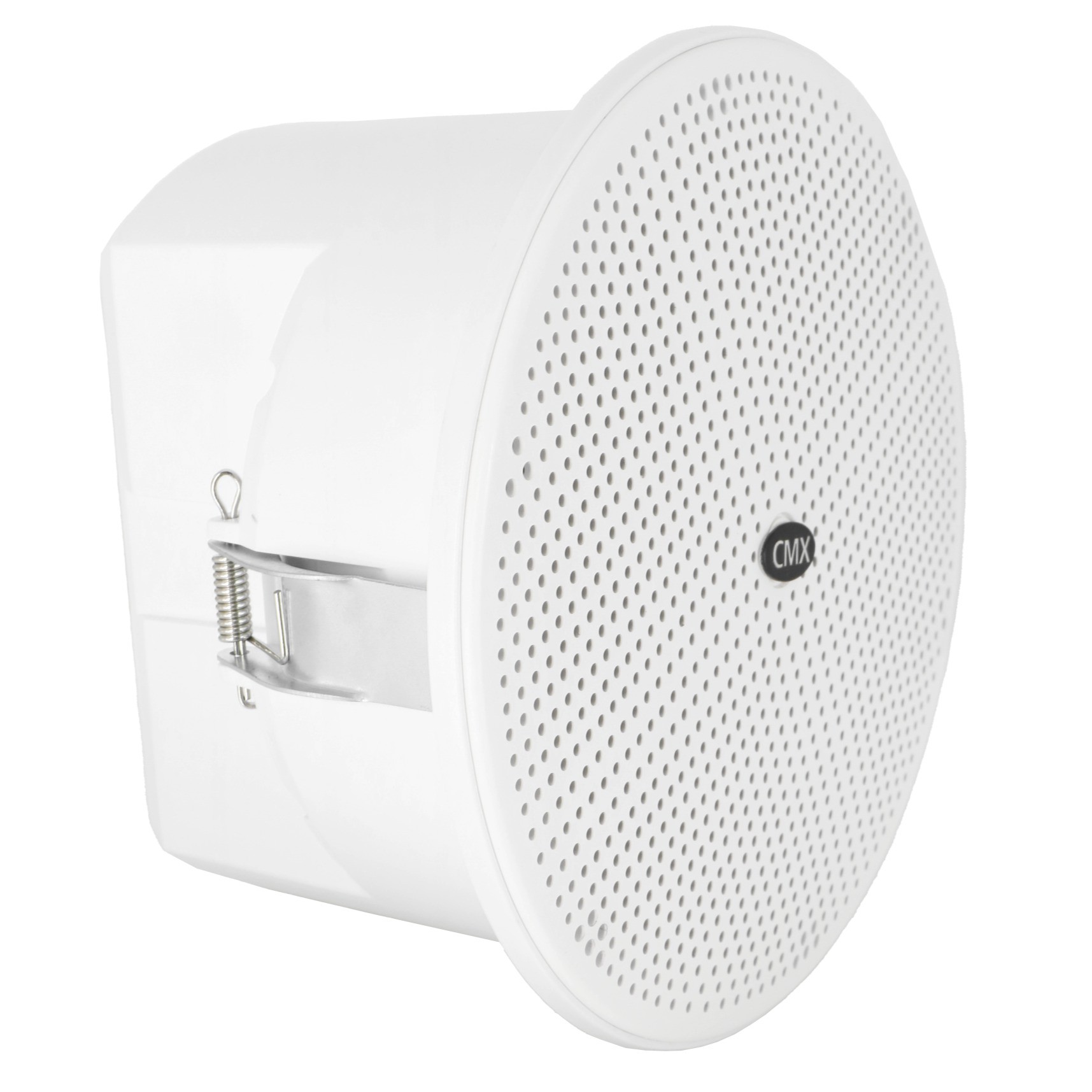

6.5” Waterproof Ceiling Speaker with Back Can CSK-66WEC
2024-11-20 11:32:10
Click：
“
Features:Commercial ceiling speaker with 100V transformerBuilt-in 100v/70v trans
”
Features:
- Commercial ceiling speaker with 100V transformer
- Built-in 100v/70v transformer for PA & VA system
- Rated power output 6W-3W at 100V
- 6.5" full range paper driver unit
- IP55 waterproof rate
- ABS enclosure,metal grille in white and with ABS back box
- In-ceiling quick installation by spring clip
Specifications:
Model | CSK-66WEC |
| Description | 6.5” Waterproof Ceiling Speaker with back can |
| Power Taps 100V | 3W-6W |
| Sensitivity 1W/1m | 93±3dB |
| Frequency Response | 100-15KHz |
| Speaker Driver | 6.5” full range paper driver |
| IP Rate | IP55 |
| Finish | ABS enclosure,metal grille in white and with ABS back box |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø170mm |
| Dimensions | Ø186×110mm |
| Weight | 520g |
Installation & Wiring diagram:
