Vietname Hanoi Mon City Public Address & Voice Evacuation System EVAC-500

Hanoi development to include Mon Home and Mon Street areas. HD Mon Real Estate will launch and open display homes at its Mon City residential project in Hanoi’s Nam Tu Liem district on December 19.

Mon City is located on an area of 6.7 ha at 2 Le Duc Tho Street, with total investment of VND6 trillion ($266.2 million).

To provide high quality products and the best services to customers, HD Mon Real Estate has prepared detailed planning with partners in all stages, such as design, construction contractor selection, construction supervision, and finance, according to a company representative.

In the first phase Mon City will be implemented in two major areas and is expected to be completed in 2017. Mon Home will comprise two 30 storey apartment buildings with a total of 896 apartments of 52.6 to 86 sq m. Mon Street, meanwhile, will include 147 shophouses with areas from 78 to 174.8 sq m and is expected to become one of most crowded commercial areas in the region.

The developer will also build other facilities to meet the demand of residents, such as gyms, a swimming pool, a golf course, and shopping malls.

Hoa Binh Corporation has been appointed to take on the role of general contractor of Mon City, while HD Bank will finance and guarantee the project. Hong Kong’s AEDAS, one of the leading global architecture and design practices, providing architecture, interior design, landscaping and urban design services, will design and plan the project.

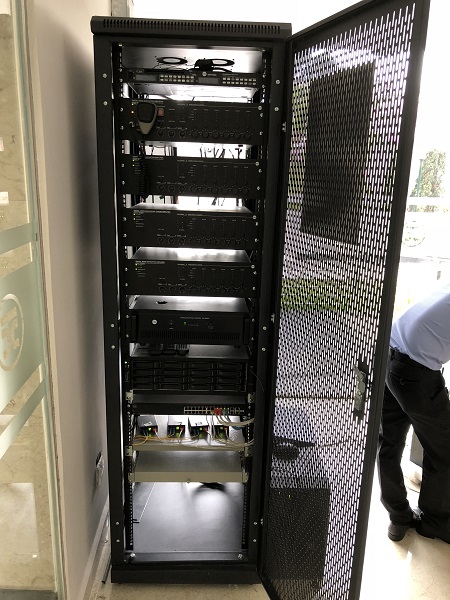

CMX AUDIO design and install the public address & voice evacuation there to serve all public announcement system, background music system and voice alarm system. The digital public address system is featured of compact solution, up to 16 zones, more than 2000W power loading of big quantity loudspeakers, with remote microphone for live and business announcement, with remote software for programming and status monitoring, easy zone expansion and CMX offer the most professional technical support before and after sales.

Ceiling speakers from CMX AUDIO has been installed on the roof to be consistent with the building decoration, wall mount speaker in parking area for business speech, pre-recorded business message broadcasting and emergency evacuation announcement. The wide range green area, walking street and rest area are decorated with landscape loudspeakers.

Features:

• All in one public address & voice evacuation system
• Integrate with amplifier, controller, zone controller, evacuation message panel into one solution
• 12 zone with 2000W two power loading options
• PAVA system with BGM, pre-recorded announcement, live announcement & evacuation system
• Integration with fire alarm system, CCTV and central monitoring system With remote microphone for live and business announcement
• With remote software for programming and status monitoring
• Easy system future zone expansion by minimum equipment and minimum cost
• CMX offer the most professional technical support before and after sales.
• Compliant with EN54-16 & EN54-24 voice evacuation standards
• Ceiling speakers from CMX AUDIO has been installed on the roof to be consistent with the building decoration.
• Wall mount speaker in parking area for business speech, pre-recorded business message broadcasting and emergency evacuation announcement.
• The wide range green area, walking street and rest area are decorated with landscape loudspeakers.

12 Zone Public Address & Voice Evacuation System BOQ:

• 6 Zone voice alarm controller with 500W Amp, EVAC-500×1
• 6 Zone voice alarm router with 500W Amp, EVAC-500RT×1
• 6 Zone remote microphone, EVAC-500RM×1
• Fireman microphone, EVAC-500FM×1
• Wireless Microphone, WM-U200C×1
• Audio Source Player, IRM200×1
• Standby Amplifier 1000W, DA-2500×1
• Battery Charger, EVAC-500BC×1 (Optional)
• Zone 1, EN54-24 Horn Speaker, HSK-30TEN×2
• Zone 2, EN54-24 Projection Speaker, PJSK-20ASEN×4
• Zone 3, EN54-24 Ceiling Speaker, FCS-66MEN×12
• Zone 4, Garden Speaker, GSK-30C×2
• Zone 5, PA Wall Speaker, WSK-530QT×2
• Zone 6, PA Wall Speaker, WSK-430H×2
• Zone 7, Ceiling Speaker, FCS-66FEN×12
• Zone 8, Pendant Speaker, PSK-30K×4
• Zone 9, Horn Speaker, MHS-60×1
• Zone 10, Ceiling Speaker, CSK-512HTM×4
• Zone 11, Ceiling Speaker, CSK-613HT×2
• Zone 22, Wall Speaker, WSK-530T×2
