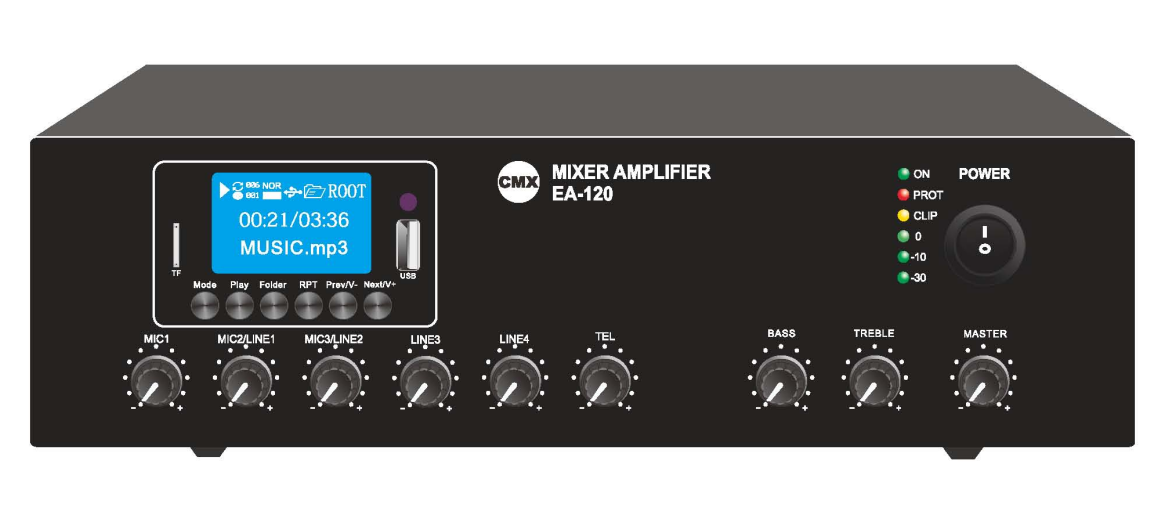

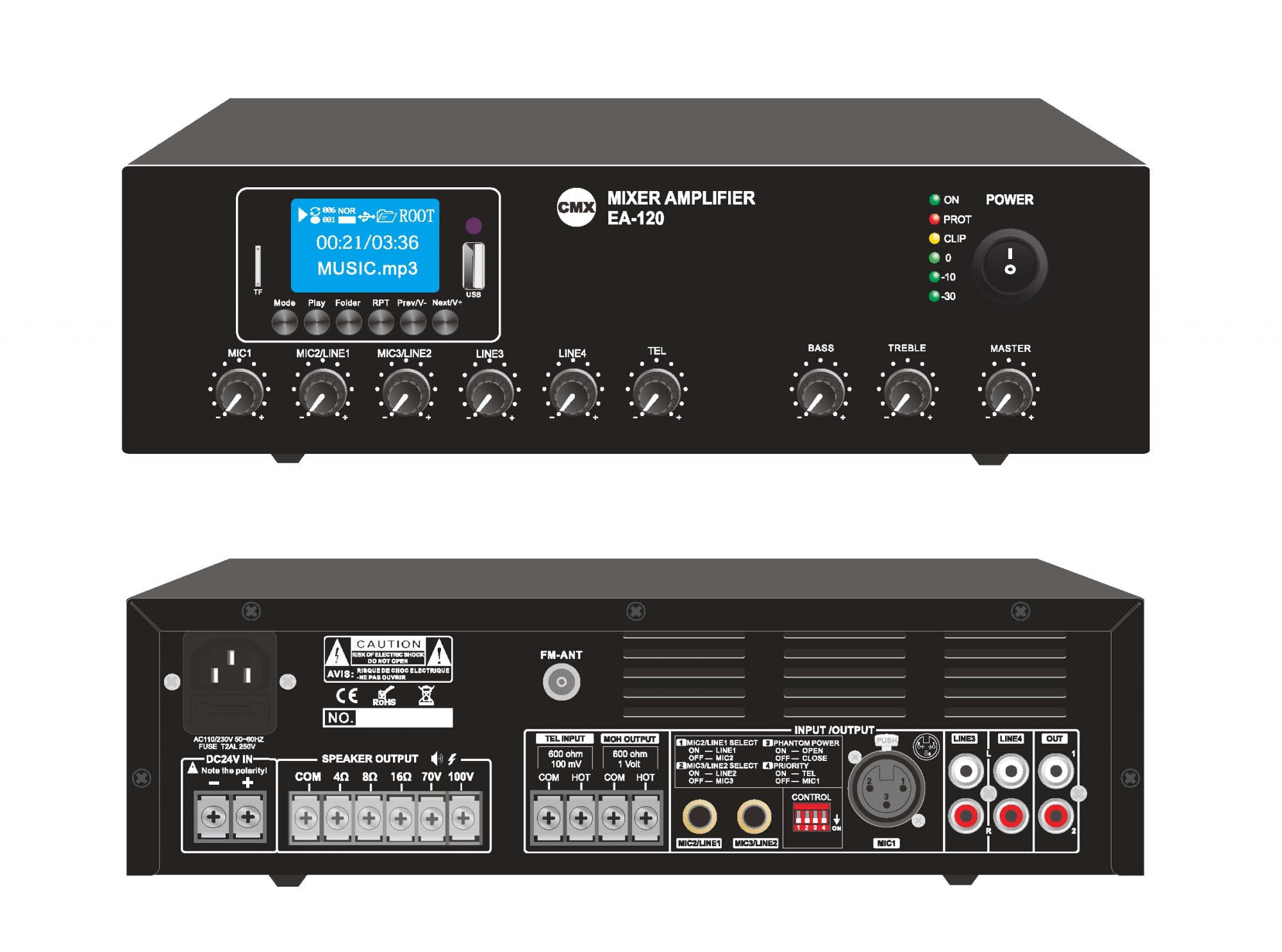

Mixer Amplifier with USB/SD/FM/Blue Tooth EA-30/EA-60/EA-120
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V AmplifiersMixer Amplifier with USB/SD/FM/Blue Tooth EA-30/EA-60/EA-120 are 30W-60W-120W compact mixer amplifier for commercial audio use, with 3 mic, 2 aux, 100V & 8 Ohms.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Mixer Amplifier with USB/SD/FM/Blue Tooth
EA-30/EA-60/EA-120
Feature:
Compact mini size public address amplifier
Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
Rate power output at 30W, 60W to 120W
Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
LED indicators for power, clip, protect and signal
Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off
Mic/line 2-3 switchable input unbalanced 6.3mm jack
Line 1-2 input of RCA input and one RCA line output
Telephone input with secondary priority and MOH (Music on Hold)
Volume control for Mic1-3, line1-2, TEL, bass/treble and master
Complete amplifier protection includes short-circuit, clip, overload and high temp
230V AC & 24V DC both power supply system
Specification:
Model | EA-30 | EA-60 | EA-120 |
Description | Mixer Amplifier with USB/SD/FM/Blue Tooth | ||
Rated Power Output | 30W | 60W | 120W |
Speaker Outputs | 100V or 70V & 4 Ohm-8 Ohm-16 Ohm | ||
Connector | Mic1 input by balanced XLR with phantom power & VOX highest priority Mic/line switchable input 2-3 unbalanced 6.3mm jack Telephone input with secondary priority and MOH (Music on Hold) Line1-2 inputs by RCA; Line output by RCA | ||
Input | MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA | ||
Line Out | 0.775(0dBV) | ||
Frequency Response | 60Hz-15kHz(±3dB) | ||
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | ||
THD | Less than 0.5% | ||
Protection | Short-circuit, clip, overload and high temp protection | ||
Power Consumption | 60W | 100W | 200W |
Power Supply | 230V AC & 24V DC; 50-60Hz | ||
Dimension | 320×210×90mm | ||
Weight | 3.6kg | 4.1kg | 4.7kg |
