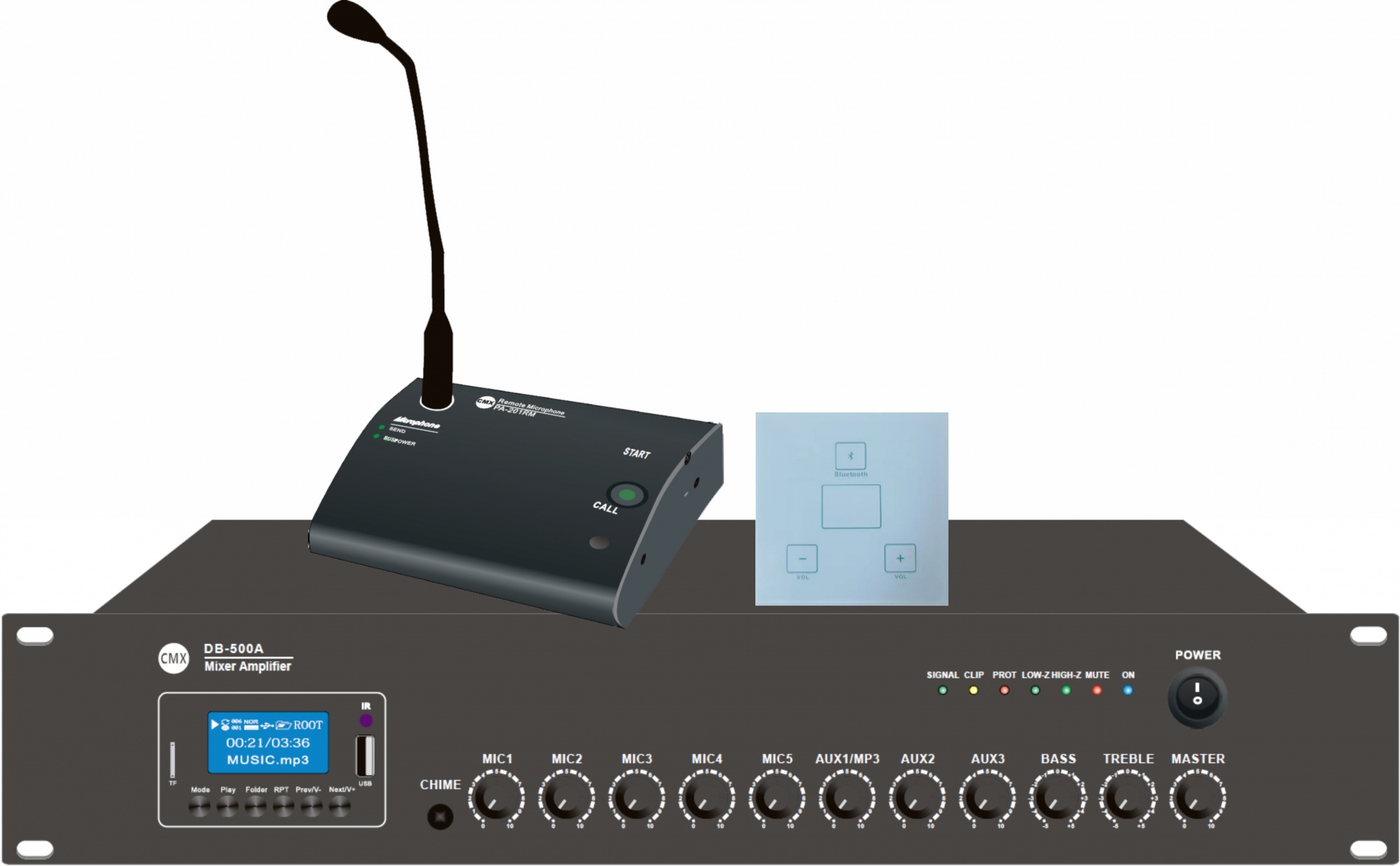

Mixer Amplifier with USB/SD/FM/Blue Tooth DB-60A/DB-120A/DB-240A/DB-350A/DB-500A
Mixer Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V AmplifiersMp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth,Speaker output of 100V & 4 Ohm-16 Ohm,Support one remote microphone input and one remote controller input, maximum distance up to 200m
Mixer Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Features:
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth
- Rate power output at 60W, 120W, 240W, 350W to 500W
- Speaker output of 100V & 4 Ohm-16 Ohm
- Support one remote microphone input and one remote controller input, maximum distance up to 200m
- Can be used with remote paging mic PA-201RM and remote volume controller PA-200SV
- Support up to 6pcs remote paging mic PA-201RM and 1pcs remote volume controller PA-200SV
- 5 balanced Mic phoenix input, Aux 1-3 input and 1 Mute input,
- With chime, Mic 1-5 with 48V phantom power
- Independent volume control of Mic 1-5 and Aux 1-3, bass/treble and master
- Priority Mute>Mic1>Remote paging Mic> others
- 1 output to connect power amplifier, 1 REC out to connect recorder
- 200V to 230V AC and 24V DC both power supply, 2U Standard cabinet design
- Colorful MP3 player as an option
Specifications:
Model | DB-60A | DB-120A | DB-240A | DB-350A | DB-500A |
| Description | Mixer Amplifier with USB/SD/FM/Blue Tooth | ||||
| Rated Power | 60W | 120W | 240W | 350W | 500W |
| Mic Input | Mic 1-5: 5mV/600Ω,balanced | ||||
| Aux Input | Aux 1-3: 200mV/10kΩ,unbalanced | ||||
| Remote Paging Mic | PA-201RM, maximum distance up to 200m | ||||
| Remote Controller | PA-200SV, maximum distance up to 200m | ||||
| Output | 600Ω/1V,balanced | ||||
| Frequency Response | 20-20KHz(±1dB) | ||||
| S/N Ratio | >70dB | ||||
| Tone | Bass:±10dB at 100Hz | ||||
| Tone | Treble :±10dB at 100KHz | ||||
| Power supply | AC220-230/50Hz | ||||
| DC in | DC 24V/3A | ||||
| Dimension | 484(W)×264(D)×88(H)mm | ||||

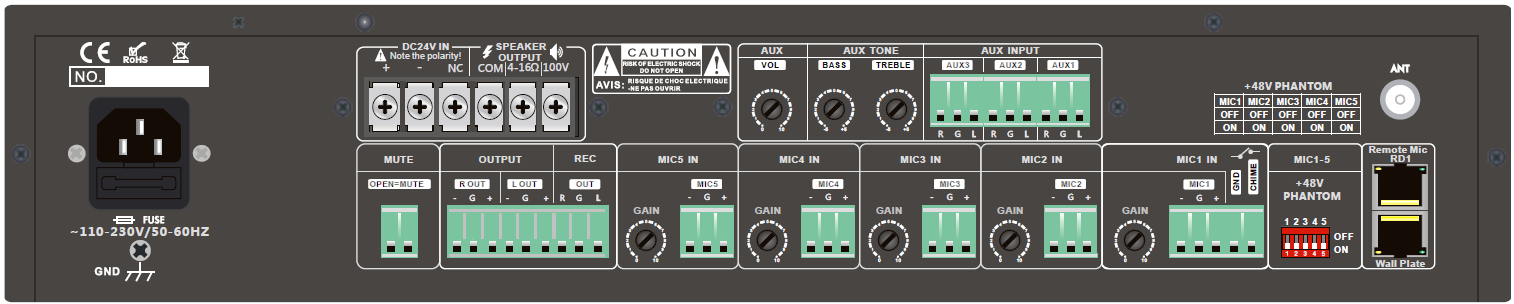

Rear Panel:

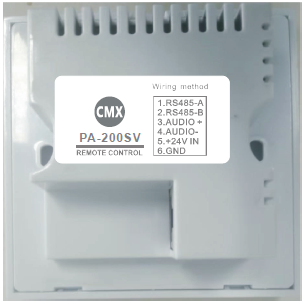

PA-200SV Remote Control Panel
- Communication through CAT6 cable up to 200 m
- Direct power supply from mixer amplifier
- Audio sources selection and volume control
- 1 unit capacity for each mixer amplifier

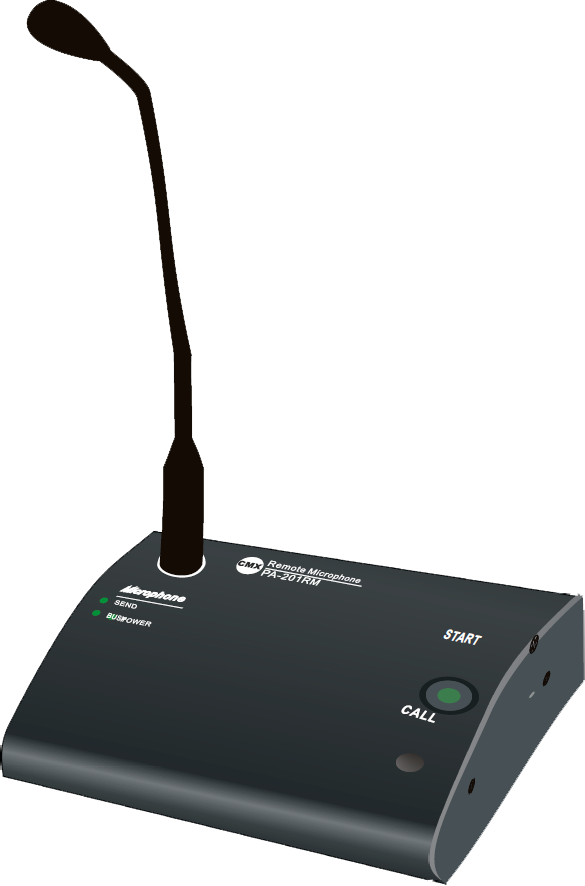

PA-201RM Remote Microphone
- Communication through CAT6 cable up to 200m
- Direct power supply from mixer amplifier
- Single zone paging
- Up to 6 Mics working simultaneously loop connection

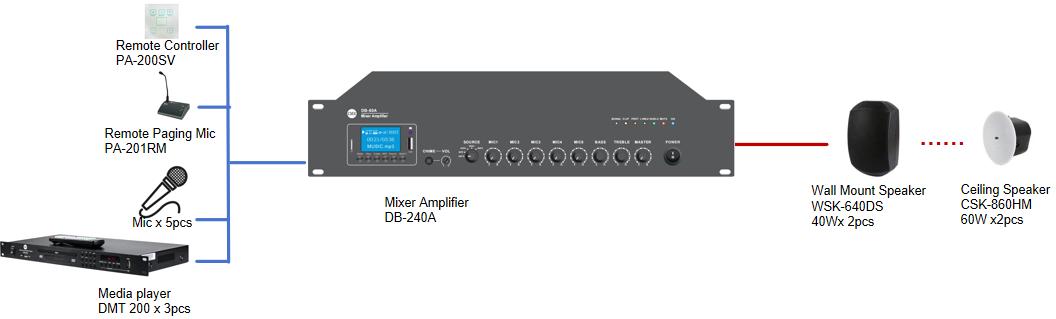

Connection:
