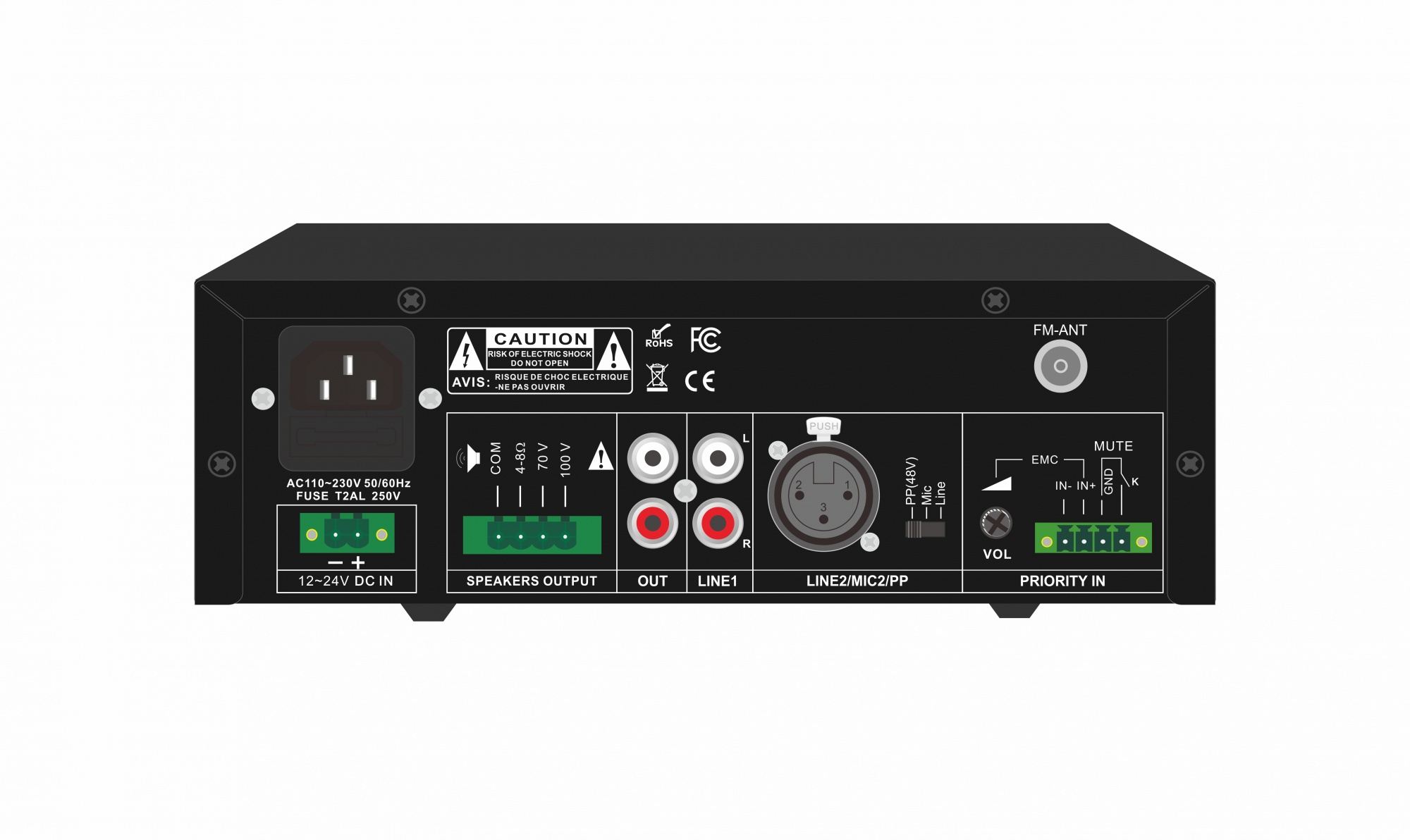

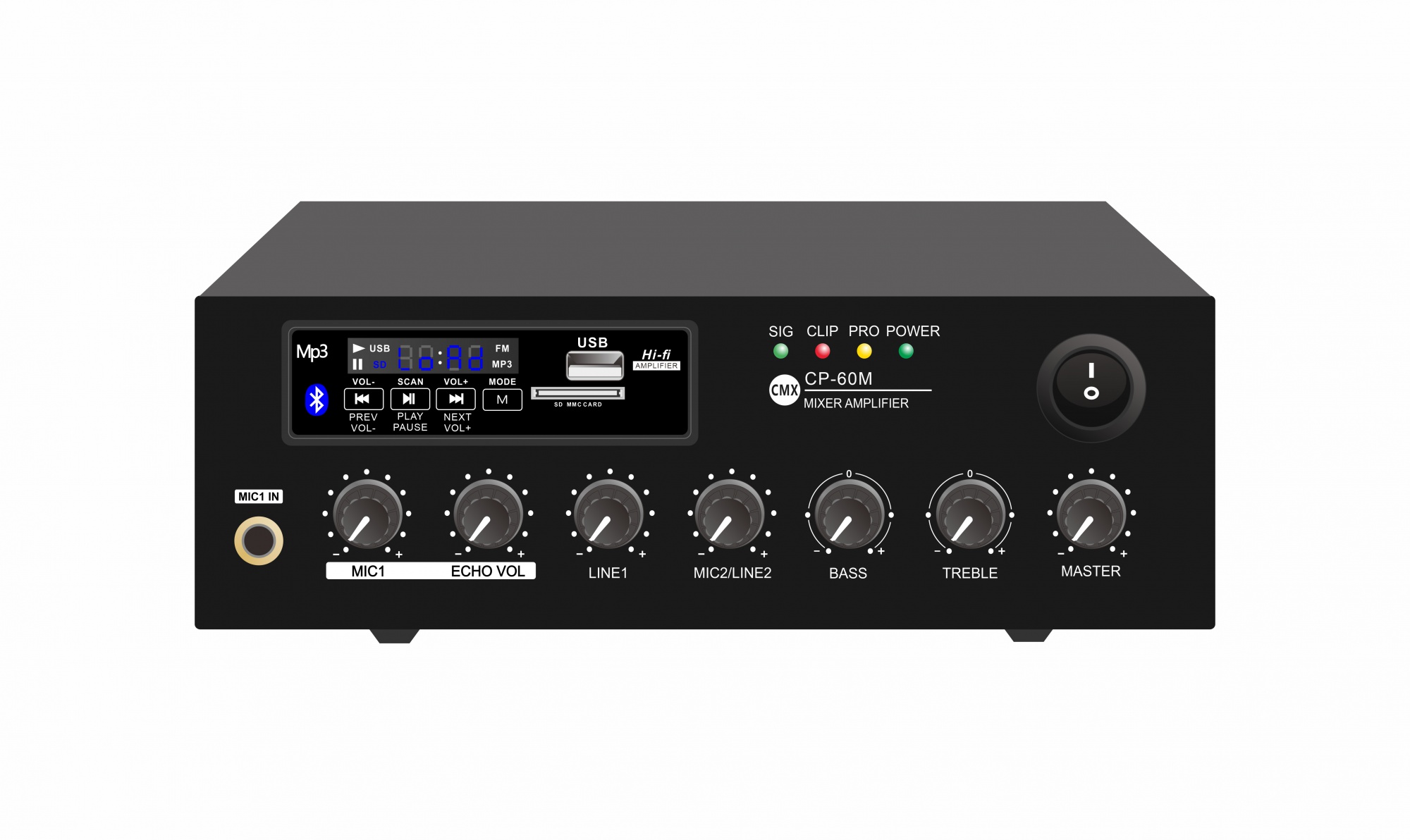

Mini Mixer Amplifier with USB/SD/FM/Bluetooth/Echo
CP-30M CP-60M
Feature:
- Compact mini size public address amplifier
- Tabletop mixer amplifier with Mp3 player, FM radio & bluetooth
- Rate power output at 30W & 60W
- Speaker output of 100V or 70V & 4-8 Ohm
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and bluetooth
- LED indicators for power, clip, protect and signal
- Mic1 of 6.3mm Jack input on front panel
- Mic/line2 switchable input balanced XLR with +48V phantom power
- Line1 input of RCA input and one RCA line output
- With mute and EMC input from fire alarm system
- Input priority from high to low: MUTE, EMC and others inputs
- With Echo features and volume control
- Volume control for Mic1, Echo, line 1, Mic2/line2, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- 230V AC & 12V DC both power supply system
Specification:
Model | CP-30M | CP-60M |
Description | Mini Mixer Amplifier with USB/SD/FM/Bluetooth/Echo | |
Rated Power Output | 30W | 60W |
Speaker Outputs | 100V or 70V & 4-8 Ohm | |
Connector | Mic1 of 6.3mm Jack on front panel Mic/line2 switchable input balanced XLR with +48V phantom power Line1 input of RCA input and one RCA line output With mute and EMC input from fire alarm system | |
Input | MIC: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA | |
Line Out | 0.775(0dBV) | |
Frequency Response | 60Hz-15kHz(±3dB) | |
S/N Ratio | Line ≥ 85dB, Mic≥ 72dB | |
THD | Less than 0.5% | |
Protection | Short-circuit, clip, overload and high temp protection | |
Power Consumption | 40W | 80W |
Power Supply | 230V AC & 12V DC; 50-60Hz | |
Dimension | 220×200×72mm | |
Weight | 2.5kg | 2.6kg |
