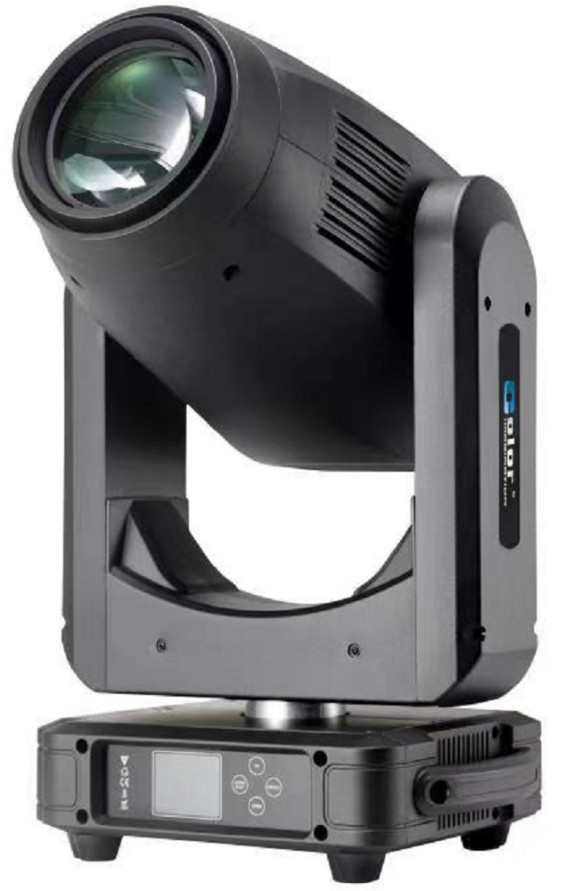

LED moving head cutting light WTI-Q174
LightingLighting
- AC100~240v,50/60Hz
- Input power: 600W
- LED type: high-power 480W white light LED module
- Color temperature: 6500K
- LED life: 20,000 hours
- Light spot uniformity: 90%
- Scanning technology
- Horizontal scanning: 540° (16 bit precision scanning), fine-tuning accuracy 0.008°
- Vertical scanning: 270° (16 bit precision scanning), fine-tuning accuracy 0.008°
- Advanced scanning system is faster, more stable, quieter, and has a reset function for automatic error correction
- Color system
- CMY infinite color mixing
- CTO color temperature linear adjustment
- Uniform and smooth CMY+CTO color mixing system
- 1 color plate: 7 fixed color plates + white light, can achieve two-way color rainbow, two-color step gradient, color wheel bidirectional rotation, color plates can be positioned arbitrarily
- Pattern system
- 1 rotating pattern plate: 7 plug-in rotating pattern plates + white circle, can achieve self-rotation, running water, and shaking effects; the pattern wheel can be positioned.
- 1 fixed pattern plate: 8 fixed pattern pieces + white circle, with pattern shaking function
- Dynamic effect plate: super cool simulation of dynamic flames, gurgling water and other dynamic effects.
- Control programming
- 2 channel modes: 34/54 international standard DMX512 channel control mode
- Control protocol: standard DMX512 protocol, RDM data bidirectional transmission, Art-net Ethernet control protocol and wireless DMX512 control (optional)
- Prism plate: rotating pentaprism, can rotate in both directions, and has prism positioning function
- Focus: electronic focus, ultra-fine and smooth adjustment of focal length
- Aperture: 5%~100% smooth adjustment
- Strobe: the highest frequency can reach 25Hz, the electric strobe speed is 1-13 times/second, and you can choose pulsation, asynchronous, synchronous, random slow, medium, fast and other modes
- Dimming: 0~100% linear dimming
- Atomization: 0~100% linear atomization
- Magnification: 4.5°~ 55° linear magnification
- Cutting disc: A set of 8 cutting blades form a controllable spot cutting system. The entire cutting system can rotate 90°. Through the precise control of the cutting blade, it can create triangles, diamonds, rectangles and other shapes of light spots in any direction
- Display
- 2.8-inch LCD display; Chinese and English languages can be switched at will, the font can be reversed 180°, and the contact button operation mode.
- Other functions
- Input signal isolation protection function to ensure stable signal transmission without interference
- Intelligent fan control
- Temperature electronic sensor detection
- DMX channel level monitoring
