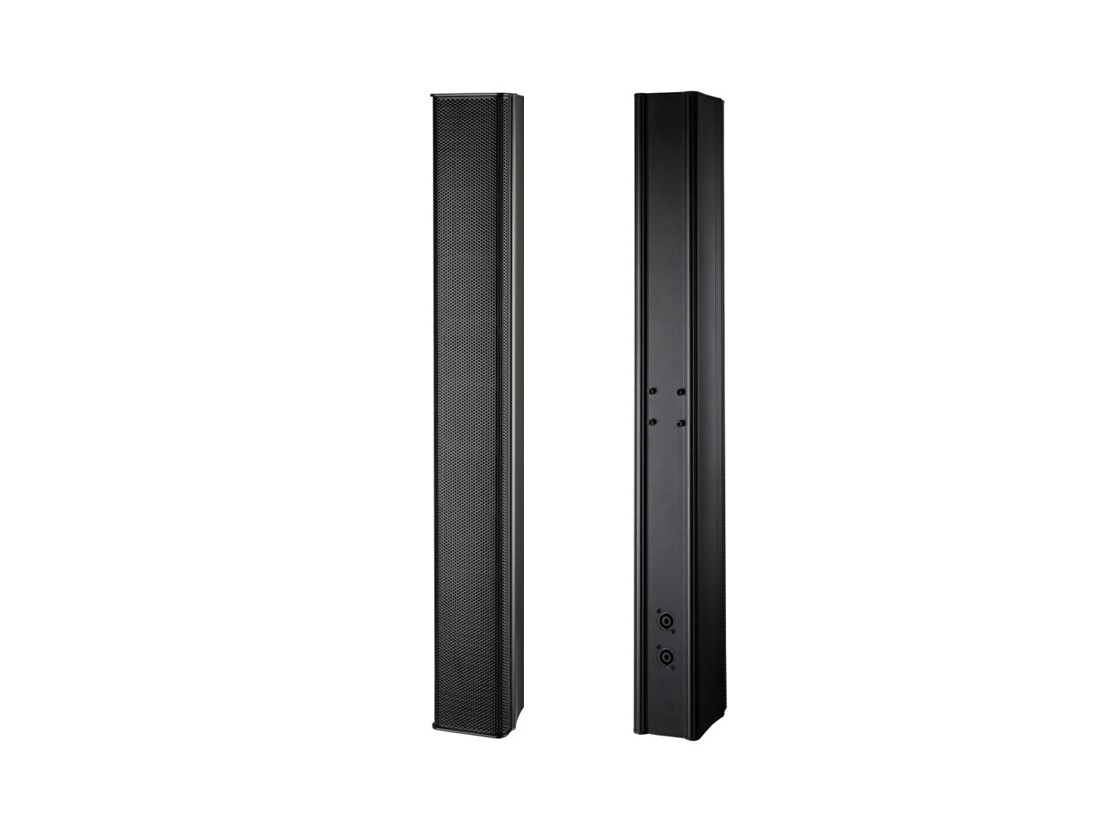

LAS-403 3 Inch Line Array Loudspeaker System 120W
Professional Sound Column Line ArrayLAS-403 is 3 inch passive line array speaker system of multiple driver units up to 120W/240W output, its aluminum body optional to add the rotatable mounting bracket, it is ideal for meeting room and conference center main sound reinforcement loudspeaker systems.
Professional Sound Column Line Array
3 Inch Line Array Loudspeaker System
LAS-403
Feature:
- High-end line array column loudspeaker with a frequency response of 150Hz to 20kHz
- Compact passive line array column loudspeakers
- 4 x 3" full range speakers Neodymium magnet
- 2 x XLR connectors for input or link
- RMS power 120W Max 240W
- Improved dispersion of horizontal 140 ° & vertical 15°
- Design and elegance for easy integration even in the most demanding installations
- Compact dimensions ensure listeners will focus on the sound and not the speaker
- Mounting bracket L3A purchased separately
Description:
The passive line array speaker LAS-403 is high-end passive line array loudspeaker, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The passive line array column speaker system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.
Specifications:
Model | LAS-403 |
Description | 3” Passive Line Array Loudspeaker System |
RMS Power | 120 Watts |
Continuous Power | 240 Watts |
Peak Power | 500 Watts |
Sensitivity | 94dB 1W/1m |
MAX SPL | 120/123dB (Bi-Amp) |
Nominal Impedance | 8 Ω |
Speaker | 4 x 3" full range speakers Neodymium magnet |
Crossover Frequency | 3K Hz |
Horizontal Dispersion | 140 ° |
Vertical Dispersion | 15° |
High Filter Pass | 150Hz, -24dB |
Connector | 2 x XLR connectors for input or link |
Material | Aluminum alloy and steel grill in black |
Dimension | 180x450x350mm |
Weight | 3.4kg |
Mounting Bracket L3A:
The L3A is one versatile mounting bracket which support vertical & horizontal dispersion angle adjustable
Recommend Matching Amplifier CS-2400, Stereo Amplifier 240W+240W
