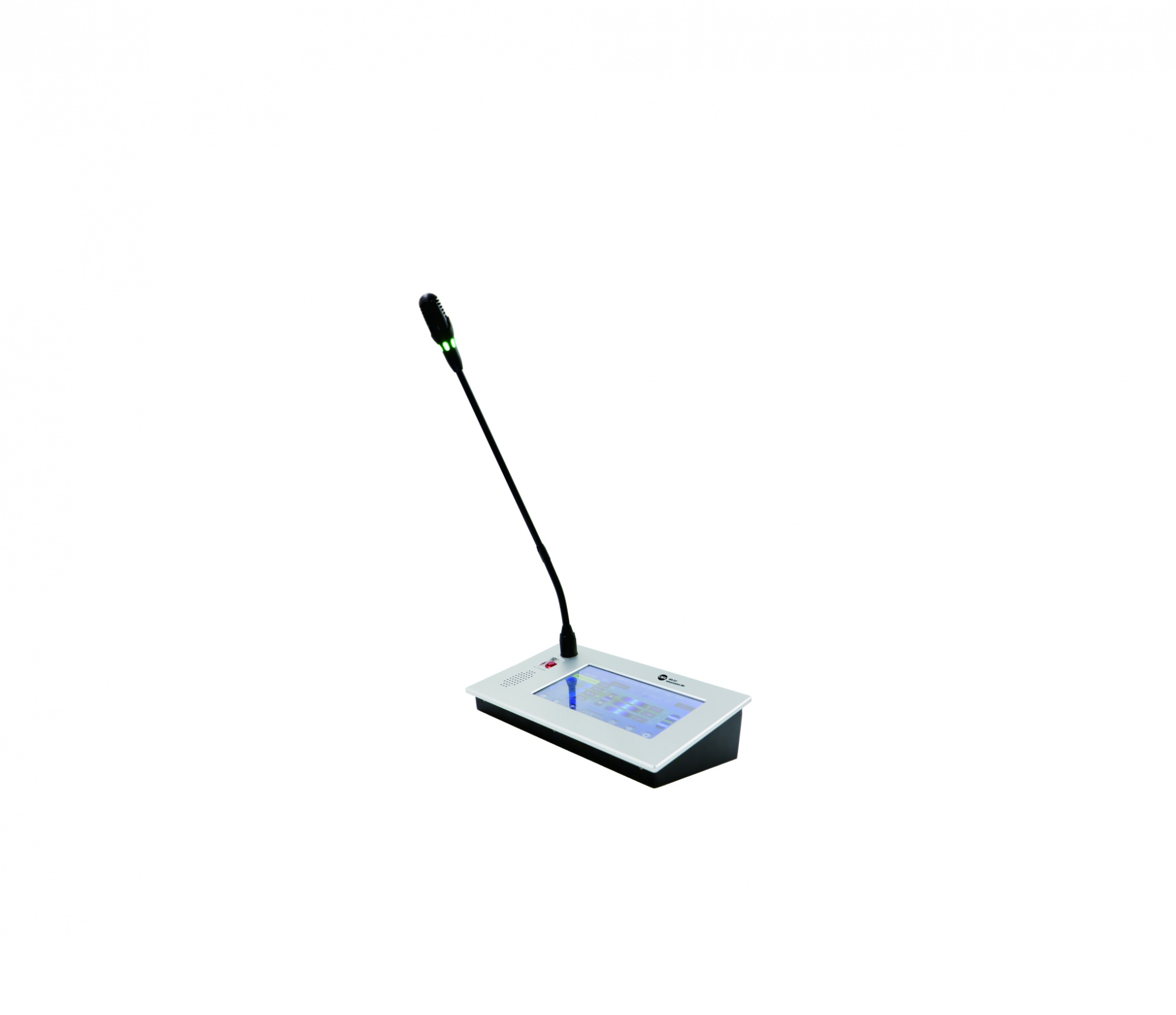

Interpreter Microphone Unit WS-231
Conference System Wireless Conference SystemAdopting full digital audio technology and built-in high-speed DSP processing;Adopt perfect sound quality of 20-20K;Adopt 7-inch touch high-definition color screen;Adopt a 6-core aviation head microphone rod with dual color indicator lights, it is red when speaking and green when waiting to speak;
Conference System Wireless Conference System
Features:
- Adopting full digital audio technology and built-in high-speed DSP processing;
- Adopt perfect sound quality of 20-20K;
- Adopt 7-inch touch high-definition color screen;
- Adopt a 6-core aviation head microphone rod with dual color indicator lights, it is red when speaking and green when waiting to speak;
- Built in speaker, headphone jack, and volume control knob;
- Equipped with tea water application function;
- Equipped with low-speed voice application function;
- Help function;
- Supports head mounted microphone and microphone pole pickup;
- Support speech timing function;
- It can translate into three languages at the same time, and up to three translation units can be installed in one translator room;
- Freely preset the language of each channel;
- It can quickly input/output three preset language channels and has corresponding shortcut keys;
- Equipped with input and output channel selection buttons;
- Translator interlocking and preemption modes can be selected.
Specification:
Model | WS-231 |
| Description | Interpreter Microphone Unit |
| Working voltage | DC36V |
| Input and output | DIN-8P or CAT6 |
| Input | Heart-shaped directional polarizable body |
| Sensitivity | -46 dBV/Pa |
| Frequency response | 20Hz~20KHz |
| Input impedance | 2k Ω |
| Directional 0 °/180 ° | >20 dB (1 kHz) |
| Equivalent noise | 20 dBA (SPL) |
| Signal to noise ratio | >80dB |
| Channel crosstalk | >80dB |
| Total harmonic distortion | <0.05% |
| Display screen | 7-inch high-definition capacitive touch screen |
| Earphone load | >10 Ω |
| Earphone volume | 10 mU |
| Earphone interface | 3.5mm x1 |
